BEFORE INSTALLING THE HOB
› The ceramic hob must be installed by qualied personnel or technicians. Please never conduct
the installation by yourself.
› Check the work surface is square and level, and no structural parts interfere with the space
requirements.
› Ensure the work surface is made of a heat-resistant material.
› If the hob is installed above an oven, check the oven has a built-in cooling fan.
› The installation must comply with all clearance requirements and applicable standards and
regulations.
› Ensure a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations.
› The isolating switch must be of an approved type and provide a 3mm air gap contact
separation in all poles [or in all active [phase] conductors if the local wiring rules allow for this
variation of the requirements].
› The isolating switch must be easily accessible to the customer once the hob is installed.
› Consult local building authorities and by-laws if in doubt regarding installation.
› Use heat-resistant and easy-to-clean nishes [such as ceramic tiles] for the wall surfaces.
AFTER INSTALLING THE HOB
› Ensure the power supply cable is not accessible through cupboard doors or drawers.
› Ensure there is an adequate ow of fresh air from outside the cabinetry to the base of the hob.
› If the hob is installed above a drawer or cupboard space, a thermal protection barrier is
installed below the base of the hob.
› The isolating switch must be easily accessible by the customer.
WARNING: ENSURING ADEQUATE VENTILATION
Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In
order to avoid accidental touch with the overheating bottom of the hob, or getting an unexpected
electric shock during working, it is necessary to put a wooden insert, xed by screws, at a
minimum distance of 50mm from the bottom of the hob.
Follow the requirements below:
Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture). This will
ensure the hob is properly secured to the underside of the work surface.
There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not
blocked by the worktop when you put the hob into position.
Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture). This will
ensure the hob is properly secured to the underside of the work surface.
The rear wall, adjacent and surrounding surfaces must therefore be able to withstand a
temperature of 90˚C.
WARNING: Ensuring adequate ventilation
Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In
order to avoid accidental touch with the overheating bottom of the hob, or getting an
unexpected electric shock during working, it is necessary to put a wooden insert, fixed by
screws, at a minimum distance of 50mm from the bottom of the hob.
Follow the requirements below:
There are ventilation holes around outside of the hob. YOU MUST ensure these holes are
not blocked by the worktop when you put the hob into position.
The rear wall, adjacent and surrounding surfaces must therefore be able to withstand a
temperature of 90
o
C.

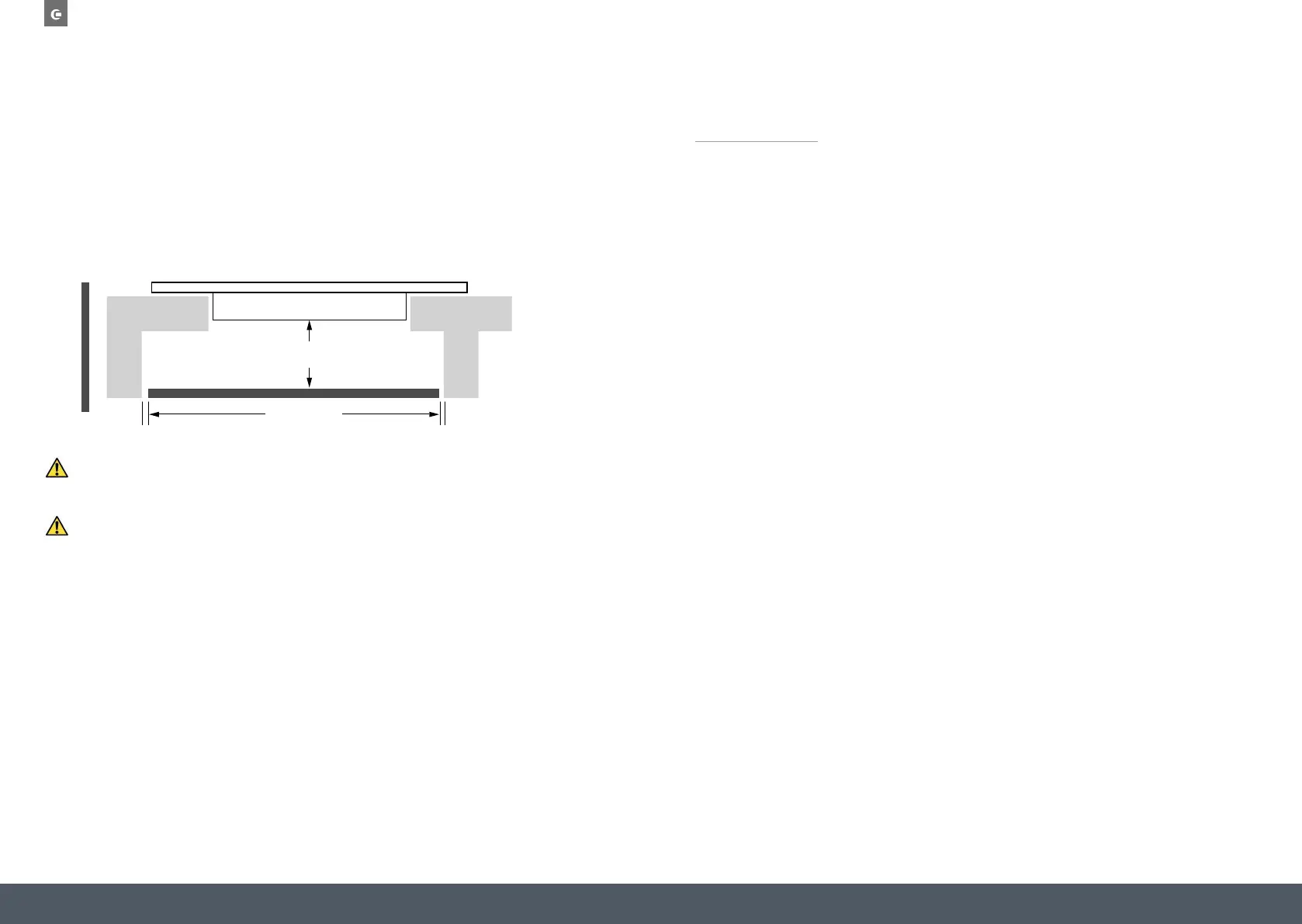

Min. 50mm
Max. 5mm Max. 5mm
