Operating instruction EN DOC-000001

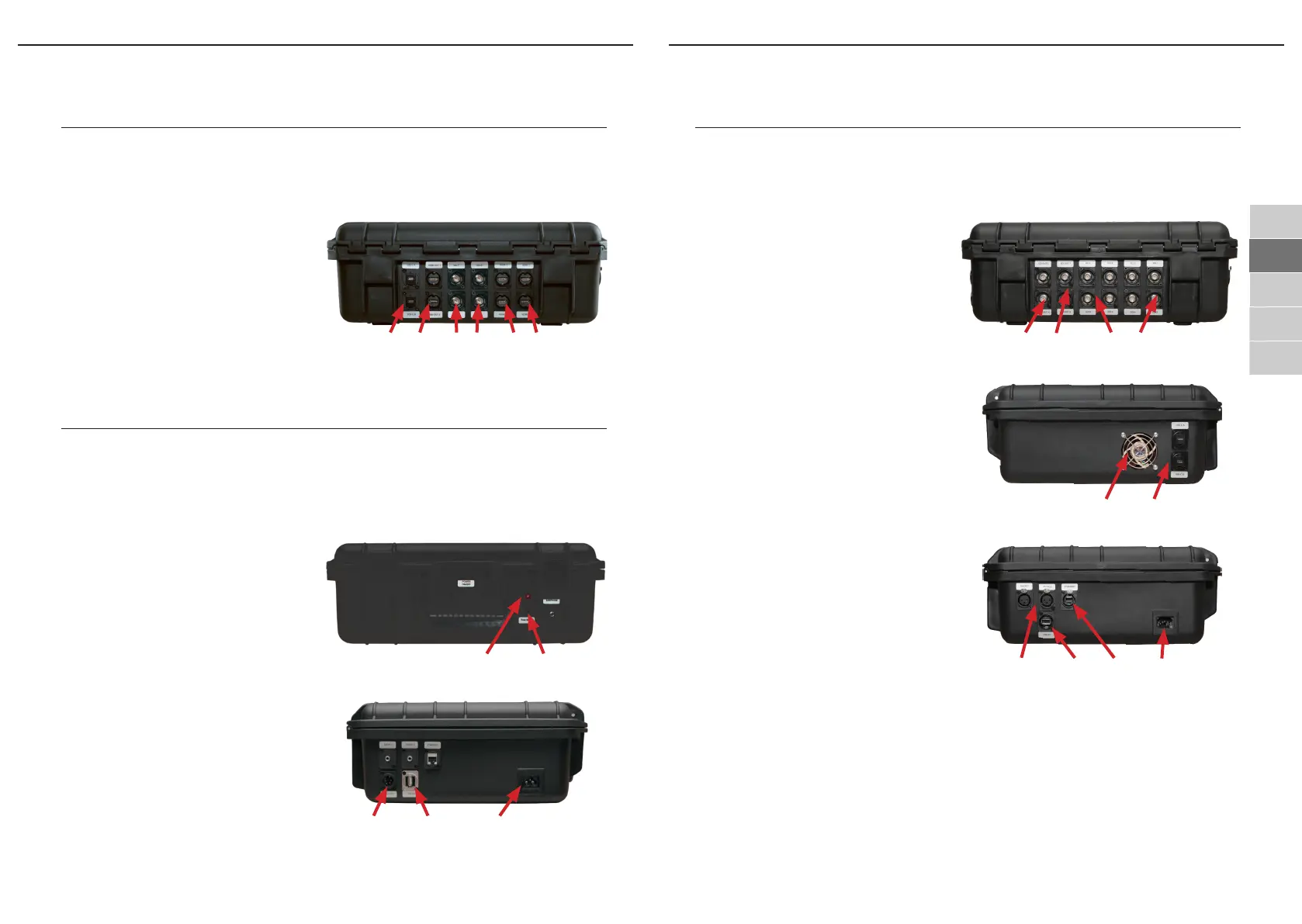

Connections BSS Case Extreme SDI
The connections on the BSS Case Extreme Professional correspond to those of
the BSS Case Professional with the following changes.
Reverse side
• 3x SDI-OUT (P)
• 1x HDMI out (Q)
• SDI in - BNC 75 Ω (R1-R8)
Right side
• Fan (C)
• 2x USB-C (S1-S2)
Left side
• Audio connectors (2x fe-
male XLR-3-pin stereo un-
balanced) (K1-K2)
• Ethernet connection
socket RJ45 (E)
• Mains connection 230 V
Version: C14 (F)
• 2x USB-C socket (S1-S2)
FP EK1-K2
S1 - S2C
P Q
R1-L8
DE
EN
FR
IT
ES
Page 42
BSS-Streaming Service BSS-Case
Connections BSS Case Extreme Professional SDI
The connections on the BSS Case Extreme Professional correspond to those
of the BSS Case Professional with the following changes.
Reverse side
• 2x USB-C (G)
• 2x HDMI out (H)
• SDI in - BNC 75 Ω
(L5-L8)
• HDMI in (I1-I4)
Connections BSS case options: USB / battery connection
The connections on the BSS Case Extreme Professional with the USB /
battery connection option are the same as on the BSS Case Extreme /
Professional with the following changes.
Front side
• LED display battery op-
eration (M)
• Overload fuse (N)
Left side
• Battery connection -
XLR 4-pin (O)
• USB A (P)
• Mains connection 230 V
Version: C6 (F)
PO
F
NM
G H L5-L8 I1-I4
