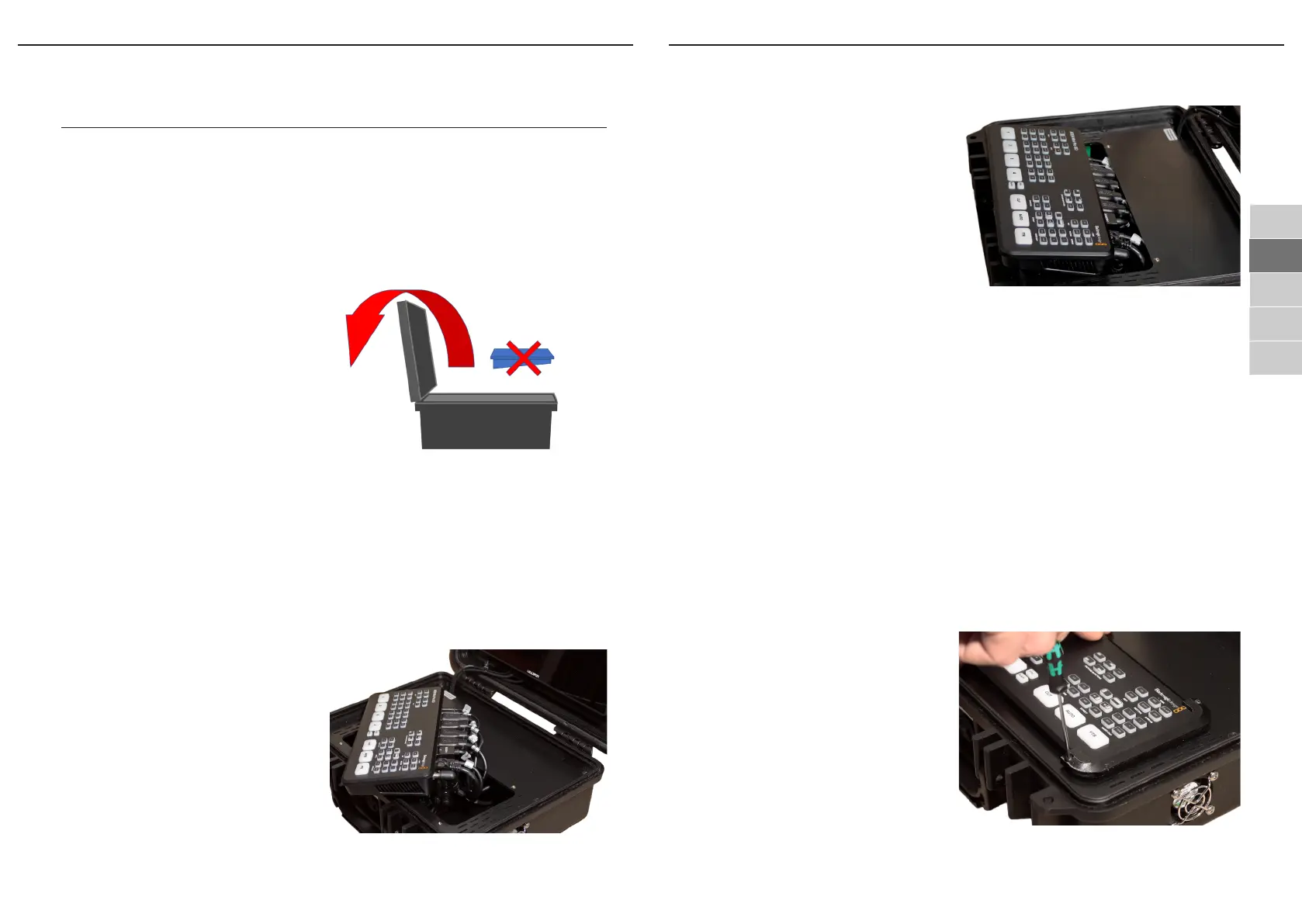

Page 45
Operating instruction EN DOC-000001
from above and fastened with
the enclosed C-rails. First plug in
all the cables to the ATEM Mini /
Extreme (Image 12). These are all
labeled in the same way as
printed on the ATEM Mini / Ex-
treme. Hold the ATEM Mini / Ex-
treme with one hand and plug in
the cables from left to right, start-
ing with the microphone connec-
tors.
Note: Never pull the cables with force,
as this could damage them.
The ATEM Mini / Extreme is inserted by swiveling the back into the recess (im-
age 13).
Due to the large number of cables that are used at the same time, it may be
necessary to insert them one by one, twisting them slightly. Make sure that the
cables have enough space to nd their place under the cover without much
counter-pressure.
Note: Work carefully and never force the ATEM Mini into the recess! If you feel too
much back pressure or if the cover plate deforms under the pressure of the cables,
carefully remove the ATEM Mini / Extreme and sort the cables again until the ATEM
Mini / Extreme can be inserted into the recess without too much counter pressure.
You may have to repeat this process several times until the ATEM nds its pressure-
free seat.
With the ATEM Extreme, the
counter-pressure when used is
correspondingly higher due to
the almost double number of ca-
bles. However, please also note
the above-mentioned conditions
for assembly.
Place the two ATEM C-clamps
on the ATEM Mini / Extreme
and screw them together us-
ing a Phillips screwdriver, size
PH1, with the screws
(Image 14) Screw ATEM Mini with C-clamps
(Image 13) Swing in the ATEM Mini
DE
EN
FR
IT
ES
Page 44
BSS-Streaming Service BSS-Case
Installing the ATEM Mini / Extreme
Safety note: Before doing any work on the BSS case, pull the mains plug out of the
socket!
Do not touch the built-in electronic components when the installation slot is open.
Even when the mains plug is unplugged, these can remain live for a long time and
cause an electric shock.
Risk of tipping: When installing the
ATEM Mini Extreme yourself, there is
an acute risk of tipping over after
opening the lid in its end position.
Only after installing the ATEM Mini
does the case reach the balanced
center of gravity.
Therefore, when opening the cover,
hold the case in a horizontal position
with the help of a second person un-
til the ATEM Mini Extreme has been
installed.
The installation of the ATEM Mini requires technical understanding and some
manual skill. Please contact our service team if you need assistance with the in-
stallation.
Required tools: Phillips screwdriver, size PH1
Plug in the cables
First remove all transport locks
and protective covers from the in-
stallation recess. Use the screw-
driver to remove the two C-
clamps (6x M3x8 ATEM Mini Case /
8x M3x8 ATEM Extreme Case ) that
are mounted to the left and right
of the recess.
The ATEM Mini / Extreme is
swiveled into the recess provided
(Image 12) Plug the cable into the ATEM
(Image 11) Danger of tipping over
if ATEM Extreme is not installed
