Connections BSS Case Extreme Professional

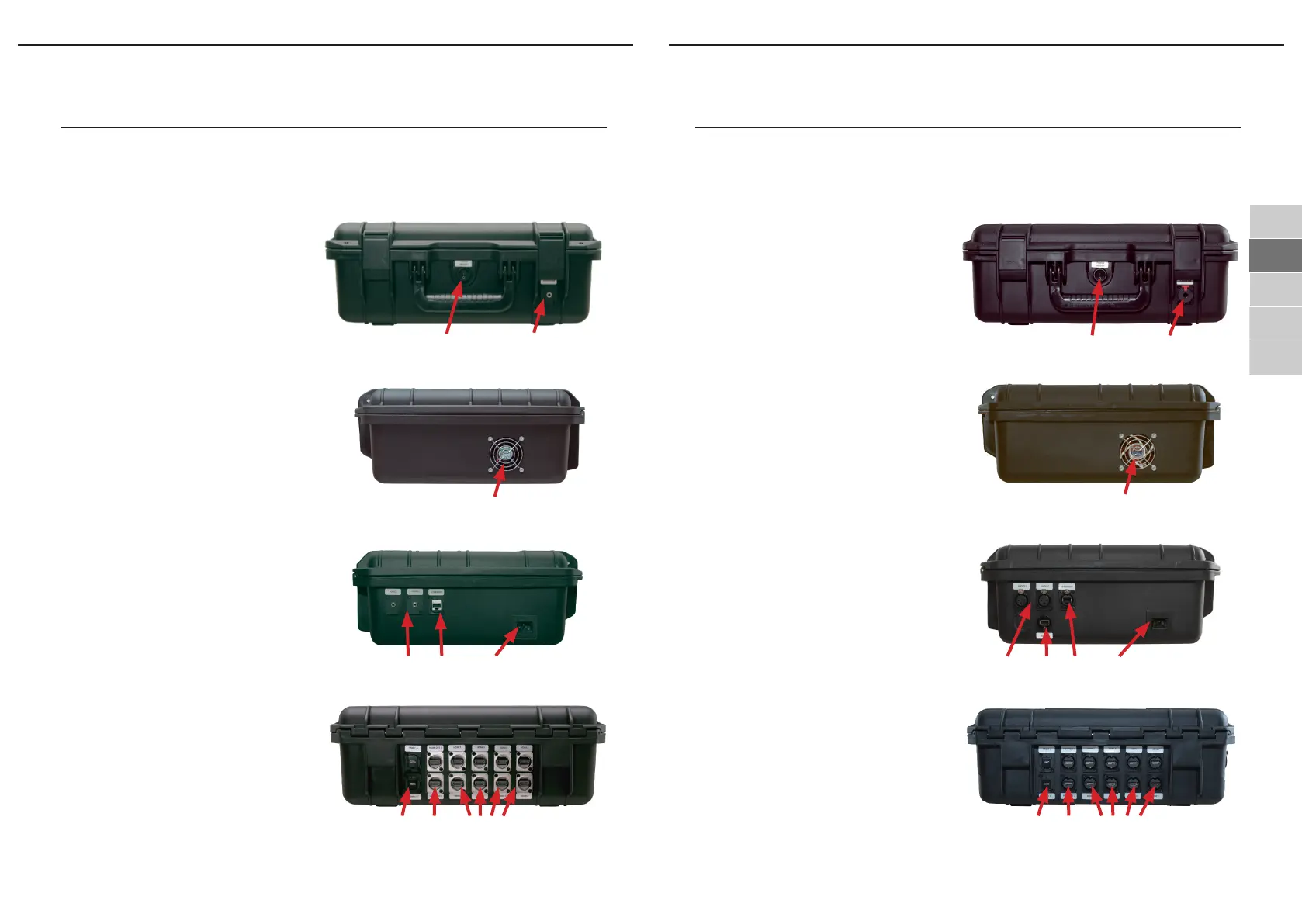

The connections on the BSS Case Extreme Professional correspond to those of
the BSS Case Extreme with the following changes.
Front side
• On/O switch (A)
• Headphone connection
6.35 mm lockable stereo jack
socket (J)
Right side
• Fan (C)
Left side
• Audio connectors (2x female
XLR-3-pin stereo unbalanced)
(K1-K2)
• Ethernet connection socket
RJ45 (E)
• Mains connection 230 V
Version: C14 (F)
• - USB-A charging socket option
(S)
Reverse side
• 2x USB-C (G)
• 2x HDMI out (H)
• 8x HDMI in (I1-I8)
I1-I8
HG
FESK1-K2
C
J
A
DE
EN
FR
IT
ES
Page
BSS-Streaming Service BSS-Case
Connections BSS Case Extreme
The following connections on the BSS-Case Extreme are arranged in a user-
friendly way. Dierent connection sockets can be installed in the BSS Case Ex-
treme Professional.
Front side
• On/O switch (A)
• Headphone connection
3.5 mm stereo jack (B)
Right side
• Fan (C)
Left side
• Audio connections 2x3.5mm
jack stereo unbalanced (D)
• Ethernet connection socket
RJ45 (E)
• Mains connection 230 V
Version: C14 (F)
Reverse side
• 2x USB-C (G)
• 2x HDMI out (H)
• 8x HDMI in (I1-I8)
I1-I8HG
FED
C
BA
