INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
13
INSTALL THE UNIT
1. Run house power cable between service panel and unit
location. Stub out a 2-foot length of power cable inside
the cabinet. Insert the power cable in the unit through one
of the 7/8” diameter strain relief previously installed.
NOTE: Not necessary if the optional HCK44 cord
connection kit is used.
2 Stub out a 2-foot length of both 14/2 cable and 14/3 cable
coming from switches. Insert the 14/2 cable and the
14/3 cable in the unit through the other 7/8” diameter
strain relief previously installed.

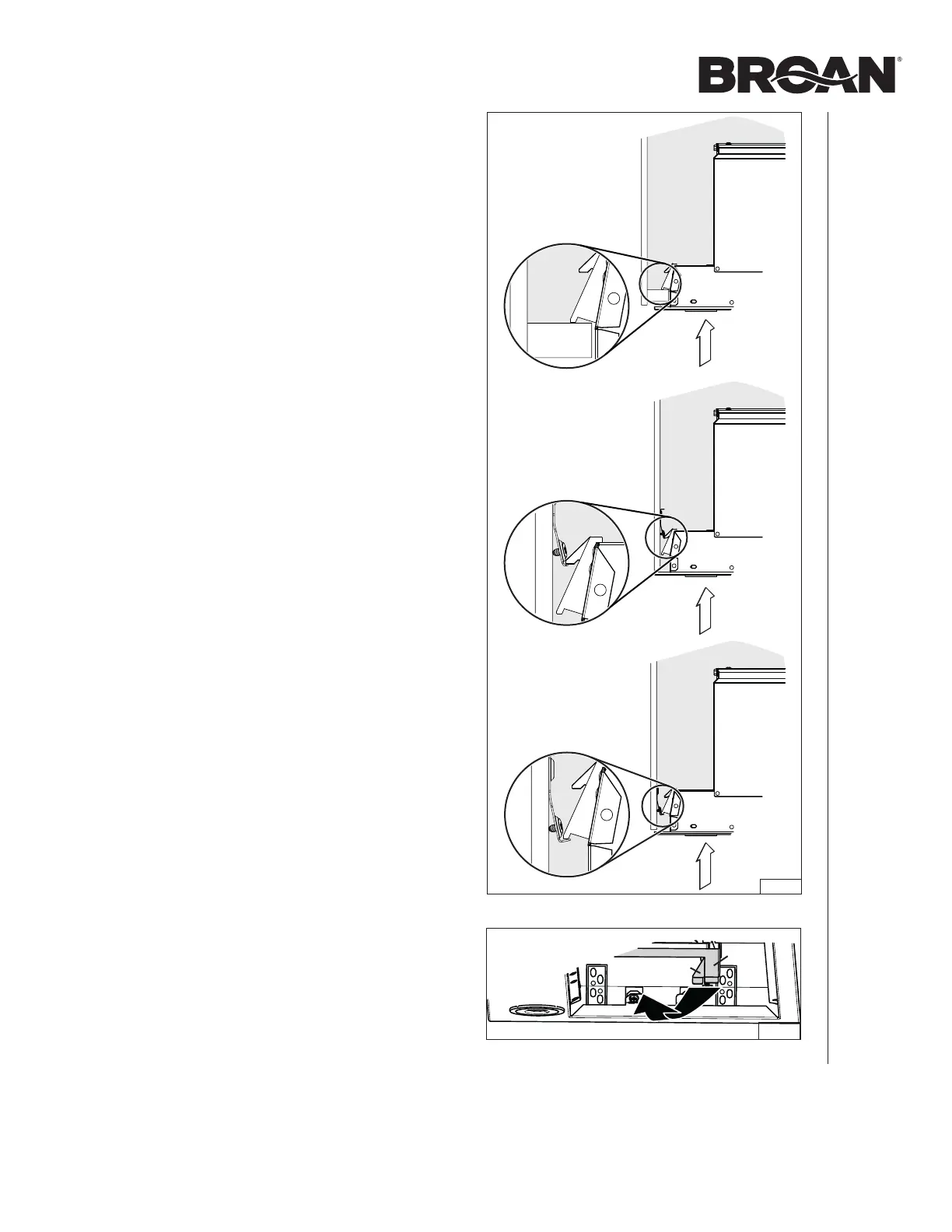

3. Insert the unit in the cabinet, until you feel a ‘click’ from
both sides of the unit, confirming that the Ease of Install
Hooks rest on the top of the cabinet bottom sides , or
cabinet brackets or (FIG. 24). Move the unit from
left to right, from rear to front and up to ensure the Ease
of Install Hooks are retaining the unit inside the cabinet.
NOTE: The unit will be protruding below the cabinetry until
tightened.
HD1374
FIG. 24
NOTE: If, for any reason, the unit has to be removed from
the cabinet, it is possible to disengage the Ease of
Install Hooks. To do so, while holding and pushing on
one side of the unit, lift simultaneously Ease of Install
Hooks levers (1 and 2, grey parts in FIG. 25) in the
other side of the unit until the hooks are retracted.
HD1375
FIG. 25
1
2
