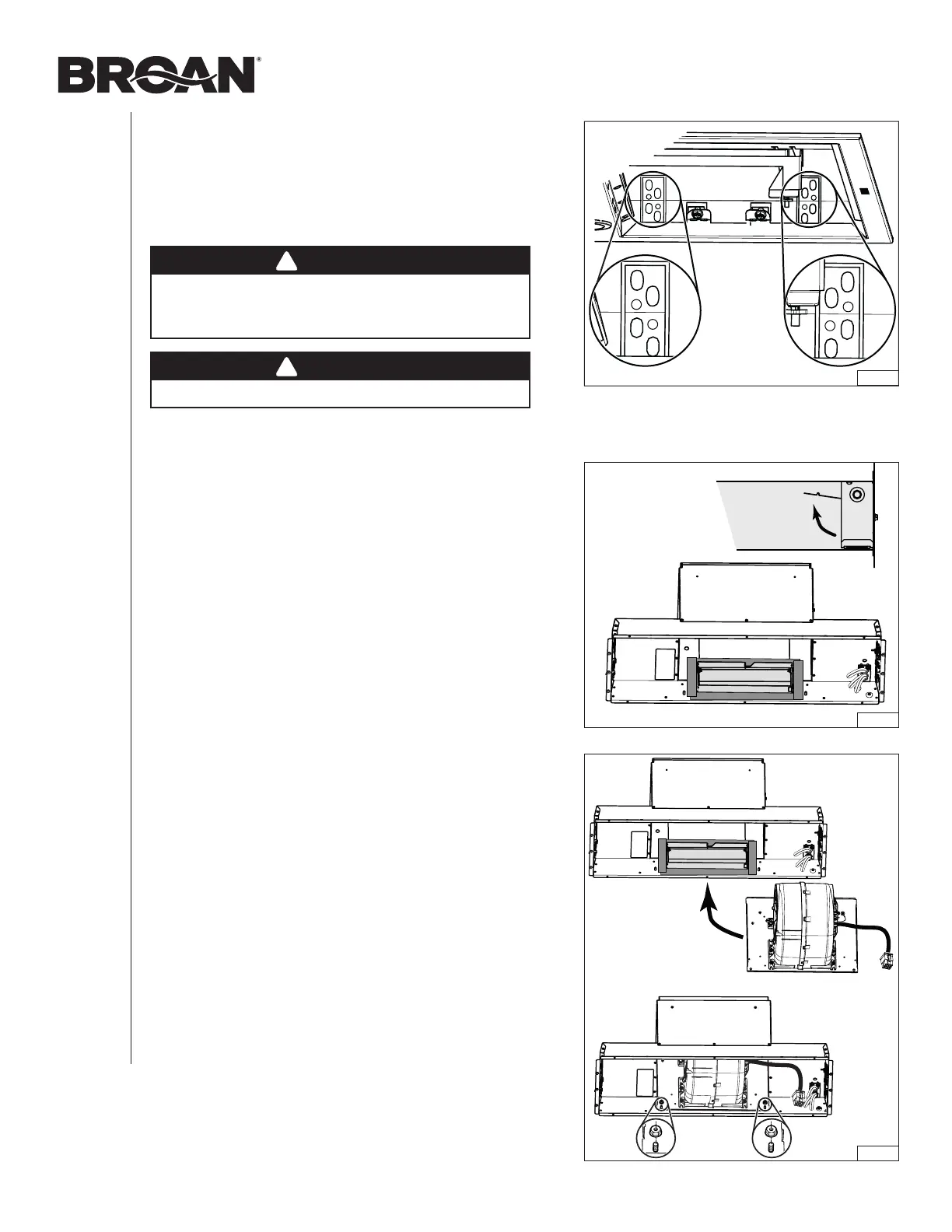

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
14
INSTALL THE UNIT (cont’d)
4. Lift the unit until contact is made between the unit
flange and cabinet. Secure the unit to the cabinet using
4 no. 8 x 5/8” wood screws included in parts bag (2
screws per side). Use upper or lower holes (1, 2, 3, 4, 5
or 6) (FIG. 26).
WARNING
The Ease of Install Hooks TEMPORARILY hold the
unit in place. The unit MUST BE secured to the
cabinet using the included 4 screws.
!
horizontal exhaust installation only
5. From inside the unit, slide the 3¼" x 10" adapter/damper
in the horizontal duct, then attach it to the unit using
aluminum duct tape all around the joint (FIG. 27). Ensure
the damper opens as shown in damper side view.
6. Insert the blower with its support plate inside the unit,
where the back plate was initially (A). Attach to the unit
using 2 nuts previously removed in step 7 on page 12 (B)
(FIG. 28).
HJ0259
FIG. 27
DAMPER
SIDE VIEW
DUCT
HO0416
FIG. 28
A
B
WARNING
Never use this unit as a shelf.
!
HD1384
1
2
3
4
5
6
1
2
3
4
5
6
FIG. 26
