INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
12
HD1415

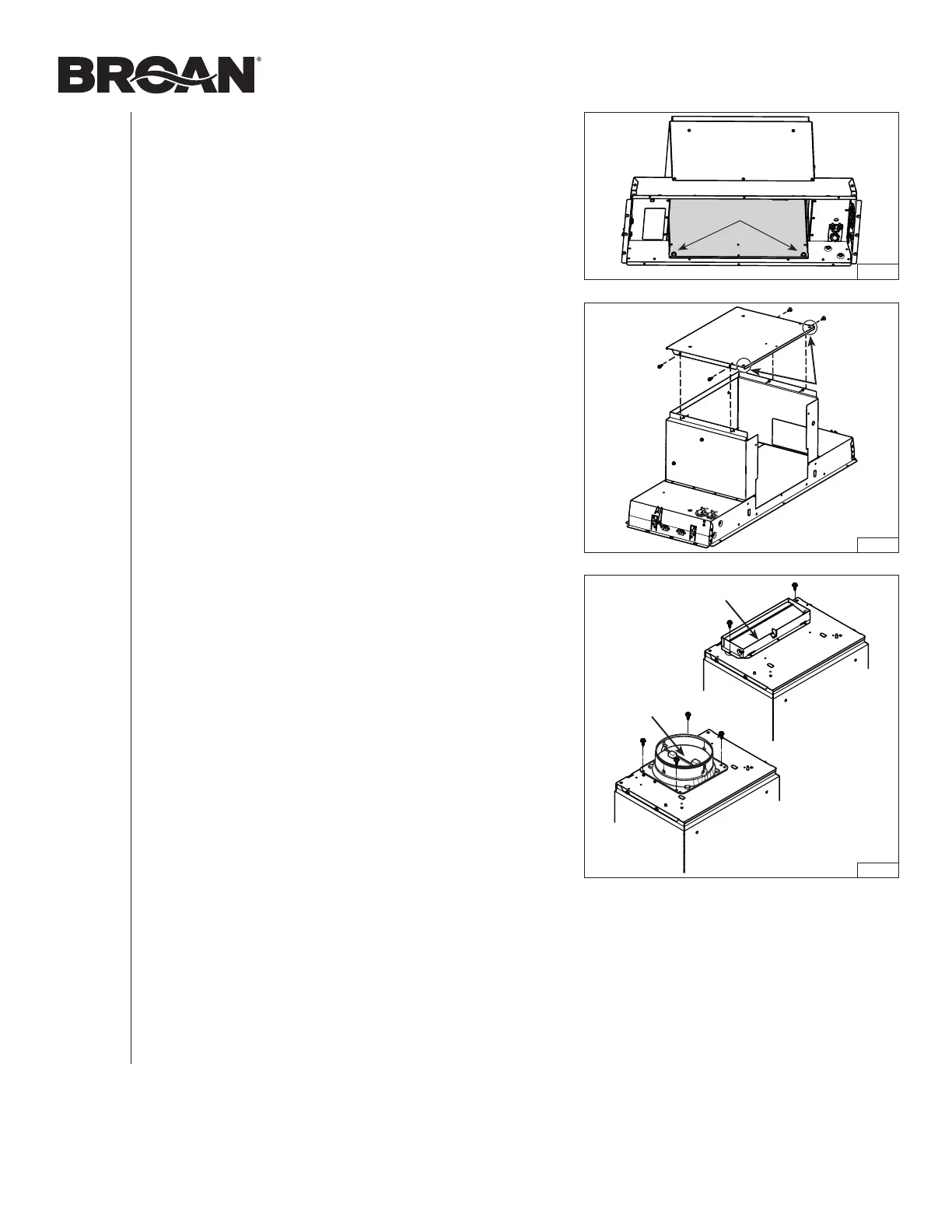

FIG. 21
NUTS
PREPARE THE UNIT (cont’d)
horizontal exhaust installation only (cont’d)
7. From inside the unit, detach the back plate (grey part in
FIG. 21) by removing its both retaining nuts using
3/8” diameter socket. Set aside the nuts and plate.
8. Install the back plate on top of the unit, where the blower
support plate was. Orient the holes nearby the corners
towards the back of the unit. Assemble to the top of the
unit using 4 screws previously removed in step 6 (FIG. 22).
vertical exhaust installation only
9. For rectangular ducting, use 2 included no. 8-18 x 1/4”
metal screws to attach the included 3¼” x 10” adapter
damper on top of the unit, over the blower exhaust opening
(FIG. 23).
NOTE: The damper hinge must be towards the front of
the unit.
For round ducting, use 4 included no. 8-18 x 1/4” metal
screws to attach the included 6-in. round adapter damper on
top of the unit, over the blower exhaust opening (FIG. 23).
NOTE: The damper hinge must be parallel to the sides of
the unit.
HJ0255
FIG. 23
HD1416
FIG. 22
HOLES
HINGE
HINGE
