19

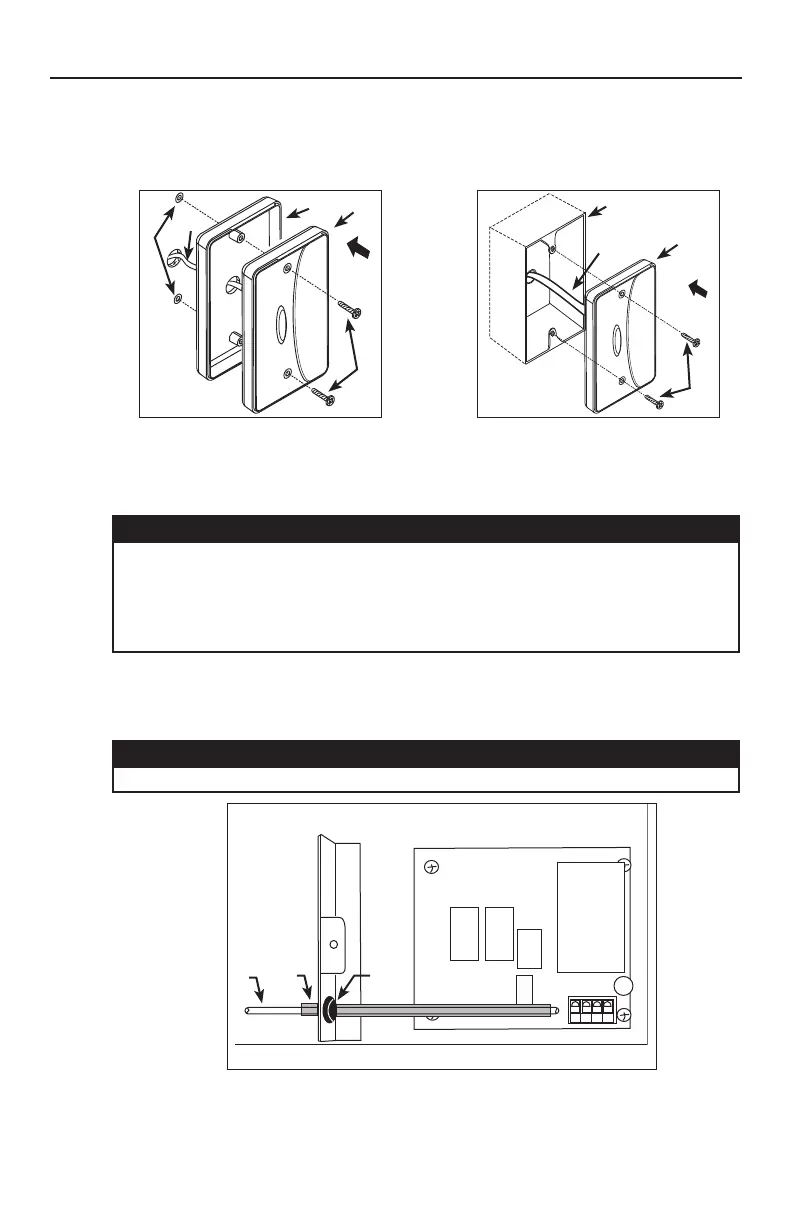

4. CONTROL (CONT’D)
4.1 INSTALLATION OF THE CONTROL (CONT’D)
6. Route the cable to the unit.
7. Remove the electrical box cover on the side of the unit.
8. Slide the sleeve (included) over the cable control and pass the cable through
the grommet.
5. Run the other end of the cable through the wall. Reinstall the cover plate.
Using wall anchors (not included) and provided screws, mount the control on
the wall. See illustrations below.
VD0157
VC0051
4
2
CAUTION
Keep control low voltage wiring at least 1 foot (305 mm) away from motors,
lightning ballast, light dimming circuit and power distribution panel. Do
not route control wiring along with house power wiring. Avoid poor wiring
connections. Failure to follow these practices can introduce electrical
interference, which can cause erratic control operations.
CAUTION
The sleeve must stay in the grommet. See figure below.
VC0052
1
3
5
1
2
3
4
1 WALL ANCHORS
2 CONTROL CABLE
3 CONTROL BACKPLATE
4 CONTROL
5 SCREWS
1 OUTLET BOX
2 CONTROL CABLE
3 CONTROL
4 SCREWS
12 3
1 CONTROL CABLE
2 SLEEVE
3 GROMMET
