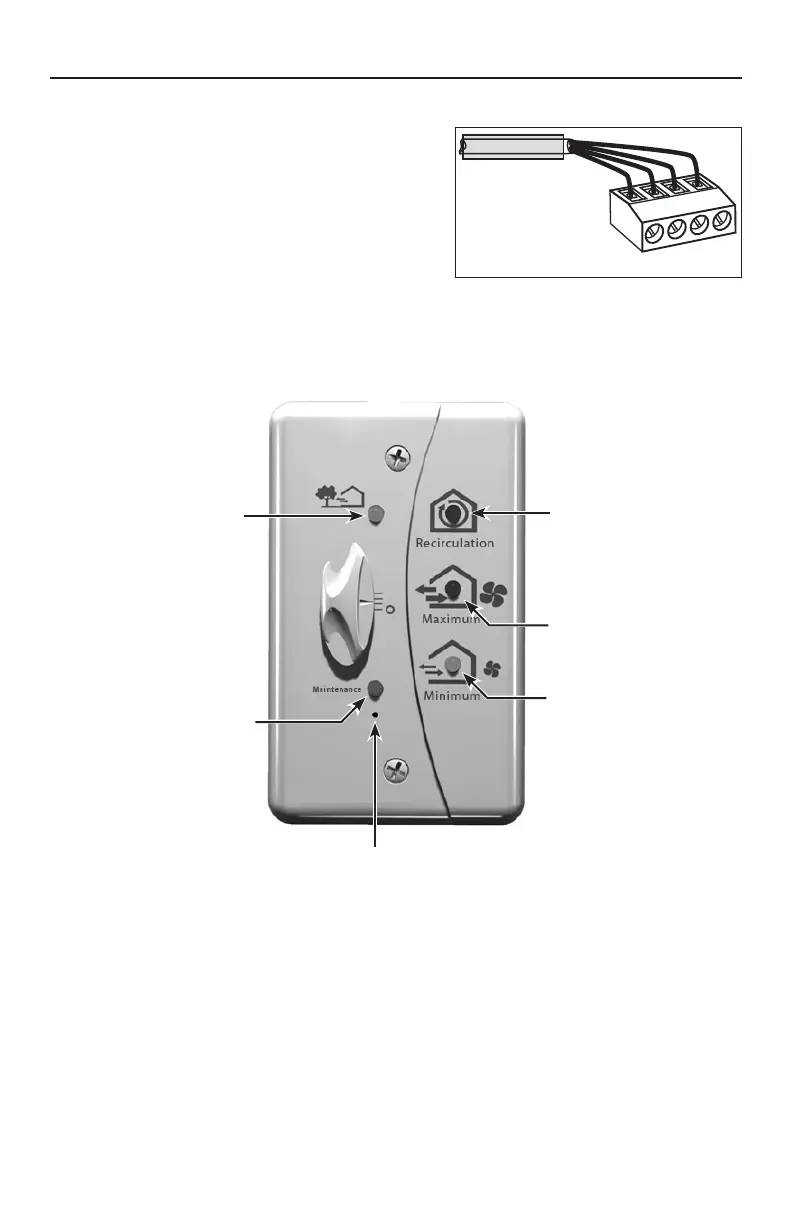

4. CONTROL (CONT’D)
4.1 INSTALLATION OF THE CONTROL (CONT’D)
9. Splice back the end of the cable to
access the 4 wires. Remove the insulated
sleeve of each wire ends. Connect
each wires in their corresponding
terminal (YELLOW in “Y”, RED in “R”,
GREEN in “G” and BLACK in “B”).
10. Reinstall the electric box cover and
plug the unit.
VE0083
Y
R
G
B
4.2 OPERATING THE CONTROL
VC0114
RECIRCULATION INDICATOR:
UNIT IS OPERATING ON
NORMAL SPEED WITHOUT
EXCHANGING AIR WITH
THE OUTDOORS.
M
AXIMUM INDICATOR:
UNIT IS OPERATING
ON HIGH SPEED.
MINIMUM INDICATOR:
UNIT IS OPERATING
ON NORMAL SPEED.
R
ESET HOLE:
ONCE THE FILTER MAINTENANCE IS DONE, RESET THE
MAINTENANCE INDICATOR BY CAREFULLY INSERTING A
SMALL ROD (E.G.: PAPER CLIP) IN THE RESET HOLE FOR
1 SECOND. THE FILTER MAINTENANCE INDICATOR WILL
TURN OFF.
M
AINTENANCE INDICATOR:
FLASHES EVERY SECOND
TO INDICATE IT IS TIME
TO PERFORM BIANNUAL
MAINTENANCE. SEE SECTION 5.
LIGHTS UP WHEN IT IS
TIME TO PERFORM ANNUAL
MAINTENANCE. SEE SECTION 5.
F
RESH AIR INDICATOR:
LIGHTS UP WHEN SLIDE
SWITCH IS ON MINIMUM OR
MAXIMUM POSITION.
