18

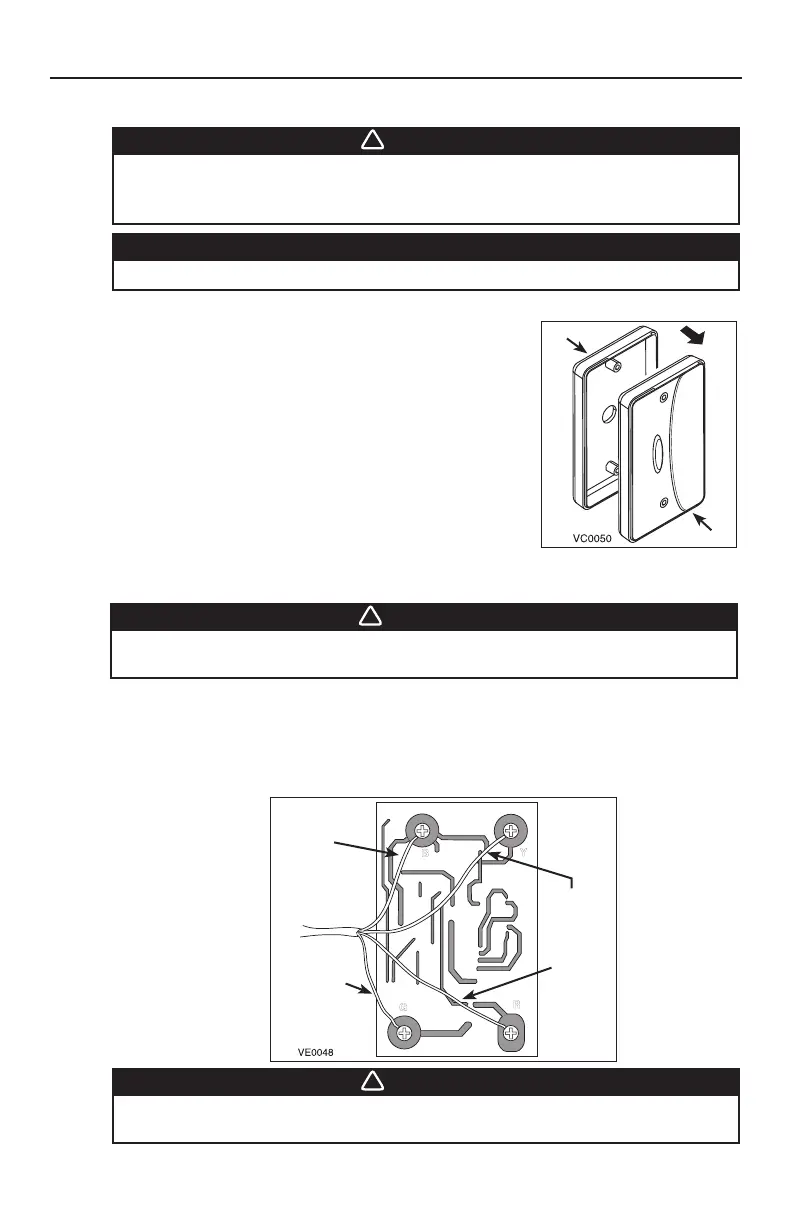

4. CONTROL
4.1 INSTALLATION OF THE CONTROL
CAUTION
Never install more than one control per unit.
2. Remove the cover plate control (1). If you prefer to
mount the control on an approved outlet box or an
approved mounting bracket (not included), discard
the backplate (2).
4. Splice back this end of the cable to access the 4 wires. Remove the insulated
sleeve of each wire ends. Make a loop with each bare end wire to hook them
to their corresponding screw. Connect YELLOW wire to “Y” screw, RED wire
to “R” screw, GREEN to “G” screw and BLACK to “B” screw. See illustration
below.
1. Determine the more convenient location for the control.
YELLOW
WIRE
WARNING
!
Always disconnect the unit before making any connections. Failure in
disconnecting power could result in electrical shock or damage of the
control or electronic module of the unit.
1
2
WARNING
!
To avoid risk of electrical shocks, never install another wire in the same
electrical box than the one for the control.
WARNING
!
Make sure that the wires don’t short circuit between themselves or by
touching any other components on the control.
RED
WIRE
BLACK
WIRE
GREEN
WIRE
3. Take one end of the control cable and pass it through the control backplate
(or outlet box or mounting bracket).
