AWT35-501860 Issue AE.1 Page 23
LF 2 CALIBRATION SETTINGS
Under the Supervisor Menu:
• to calibrate in kg set LF 2 to [ 1 1 0 1 0 1 ]
• to calibrate in lb set LF 2 to [ 1 1 0 1 0 2 ].
The calibration steps following the function LF 1 or entering the Calibrations Menu ECF are the same.
For this reason, only the ECF-1 is described below.
Before starting, make sure that UF-5 is set to HOLD 0 under the User Menu,
LF 6 is set to NONE and Calibration Switch is NOT SEALED.
Note: if the ECF or LF Menu is locked, see chapter 6.
Test weights equivalent to at least 1/3 of the maximum capacity are needed.

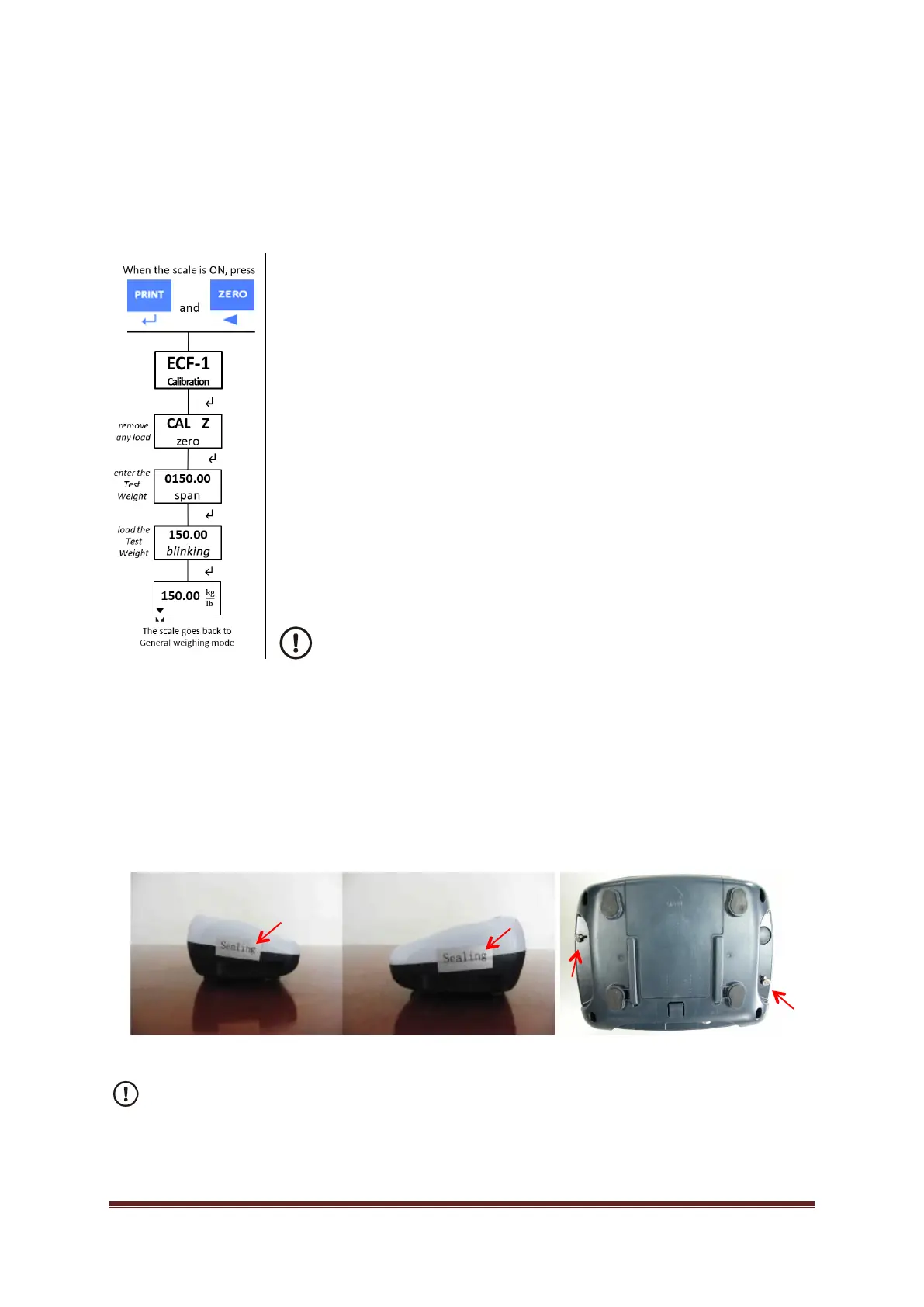

i.When the scale is ON, press the PRINT and ZERO keys together;
ECF-1 will be displayed.
ii.Press PRINT(↵) key;
CAL Z will be displayed;
iii.Remove the loads from the pan (0 kg) and press PRINT(↵) to confirm;
iv. Edit the span by pressing the ZERO(◄) and/or TARE (►) keys to move
the flashing digit left or right and press the SELECT (▲) key to increase
the numeric value;
v.Press PRINT (↵) to confirm;
vi. Load the test weight;
vii. Press PRINT (↵) to complete and leave the procedure.
If Err 10 is displayed re-edit the span value, confirm and move to the
next step.
6.3. Stamped Calibration
For legal for trade applications the following configuration settings need to be set and the indicator
seal according to OIML and NTEP directives.
• Set the scale division sizes in the function LF 2 according to the approval document, LF 6 set to
OIML and the Calibration Switch at SEALED as shown in the figure.
NOTE: Supervisor Menu and Quick Calibration Menu are now locked. See chapter 6.1 on page 22.
• Attach the correct capacity labels to the front of the display and seal as shown below.
Sealing with supplied tamper proof labels
Sealing with lead seals
For trade-approved applications, the indicator has to be properly configured by entering
the functions available in the Supervisor Menu before setting the Calibration Switch at
SEALED and sealing the indicator.
