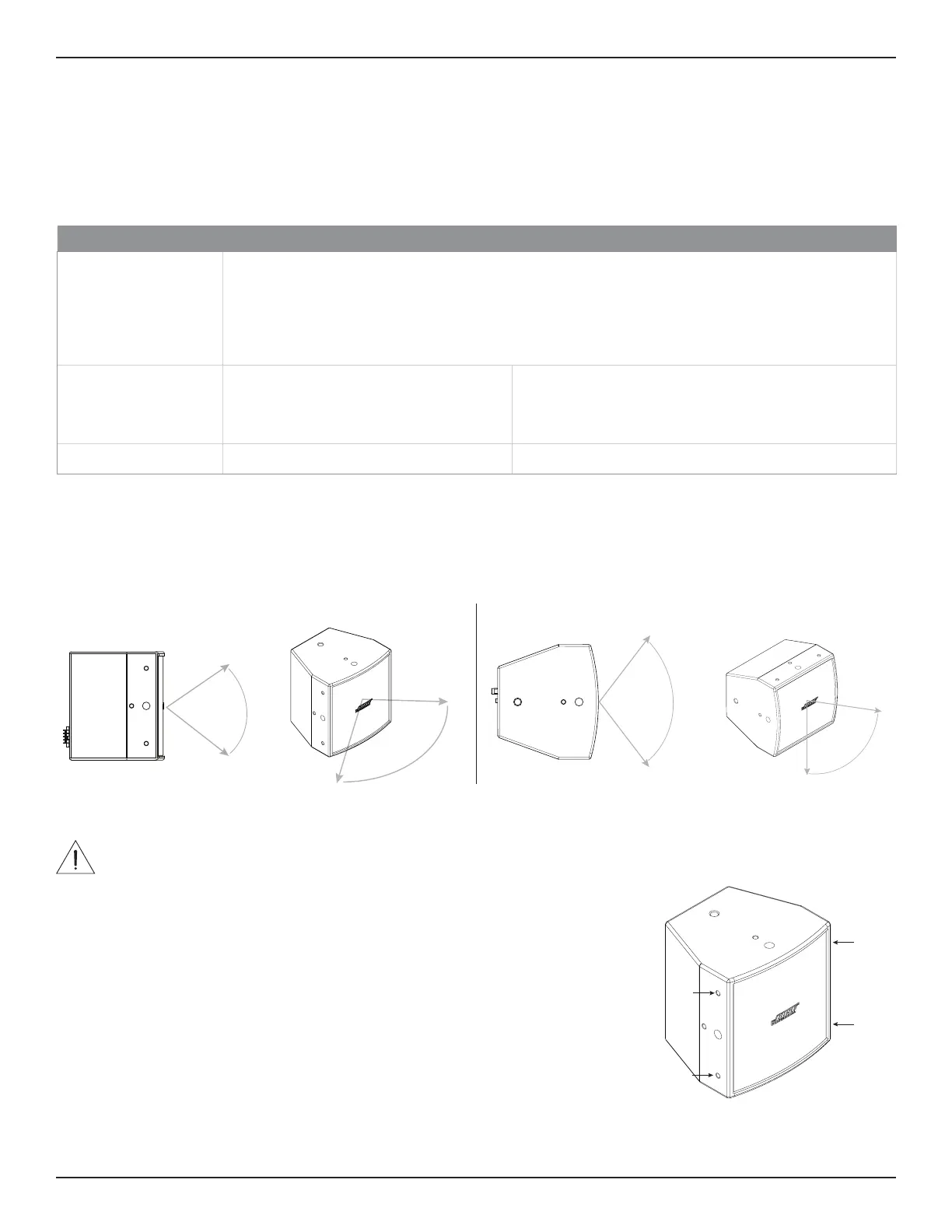

5Installation Guide
•
Forum FC108 & FC112
BoseProfessional.com
Installation / Technical Information
Wiring the Loudspeaker
Wire Gauge
Forum FC108 and FC112 loudspeakers are designed to work with 12 AWG (4 mm) to 14 AWG (2.5 mm) size
wire only.
Technical Specifications
FC108 FC112
Connectors
1 Neutrik® NL4 input
1 barrier strip
Bi-amp:
Pin 1+: LF+
Pin 1−: LF−
Pin 2+: HF+
Pin 2−: HF-
Full Range:
Pin 1+: SYS+
Pin 1−: SYS−
Pin 2+: Not connected
Pin 2−: Not connected
Power Handling Passive: 150 W (RMS), 1200 W (peak)
Bi-amp, LF: 150 W (RMS), 1200 W (peak)
Bi-amp, HF: 20W (RMS), 320 W (peak)
Passive: 300W (RMS), 2400W (peak)
Bi-amp, LF: 300W (RMS), 2400W (peak)
Bi-amp, HF: 45W (RMS), 720W (peak)
Nominal Impedance Passive or bi-amp, LF/HF: 8 Passive or bi-amp, LF/HF: 8
Loudspeaker Orientation and Coverage Pattern
Forum FC108 and FC112 loudspeakers can be mounted to project sound wide horizontally or wide vertically.
Choose the loudspeaker orientation best suited for your installation and desired coverage.
Adjusting the Logo
You can rotate the Bose Professional logo to align with your loudspeaker orientation.
CAUTION: Rotating the logo without removing the grille could cause damage to the grille's surface.
1. Use a hex key to remove the screws on the top and bottom of the
enclosure.
2. Pull the grille off the cabinet and adjust the logo by pushing the clasp
on the back of the grille with one hand and rotating the logo with the
other until the logo is in your desired orientation.
3. Reattach the grille and tighten hex screws.
60
110
60
110
Wide Horizontal Wide Vertical
