English Forum FC108 & FC112
•
Installation Guide
BoseProfessional.com
Installation
Installation Guidelines
Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death and property damage.
It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only
professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to
install any loudspeaker or subwoofer overhead.
Forum coaxial loudspeakers are designed for use with Bose Professional accessories for mounting and suspension. If
you are using a custom-designed mounting or suspension system, have a licensed professional engineer review the
design and planned method of attachment to the building structure for structural integrity and safety in the intended
application.
Choose fasteners that are consistent with all local building codes and requirements to support the weight of the
loudspeaker.
• Use only fasteners/hardware of Class 8.8 or greater.
• Do not use unmarked machine fasteners for mounting system assemblies as there is no way to determine their
physical properties.
• Use only M10 fasteners for the threaded inserts on the loudspeaker. Although SAE ⁄"–16 fasteners are similar, they
are not interchangeable with M10 fasteners.
• Do not over-tighten fasteners. Doing so may irreparably damage the cabinet and create an unsafe assembly.
• Make sure fasteners are long enough to engage at least 8 threads of the attachment point. Using a fastener that is
engaged with fewer than 8 threads will result in inadequate support of the loudspeaker, which may strip the threads
and create an unsafe assembly.
• Do not alter or re-thread the threaded attachment points to accommodate any other thread size or type. Doing so
will compromise the safety of the installation and permanently damage the loudspeaker.
• For a vibration-resistant assembly, use a locking compound intended for hand disassembly.
Do not suspend additional loudspeakers or other items from the loudspeaker.

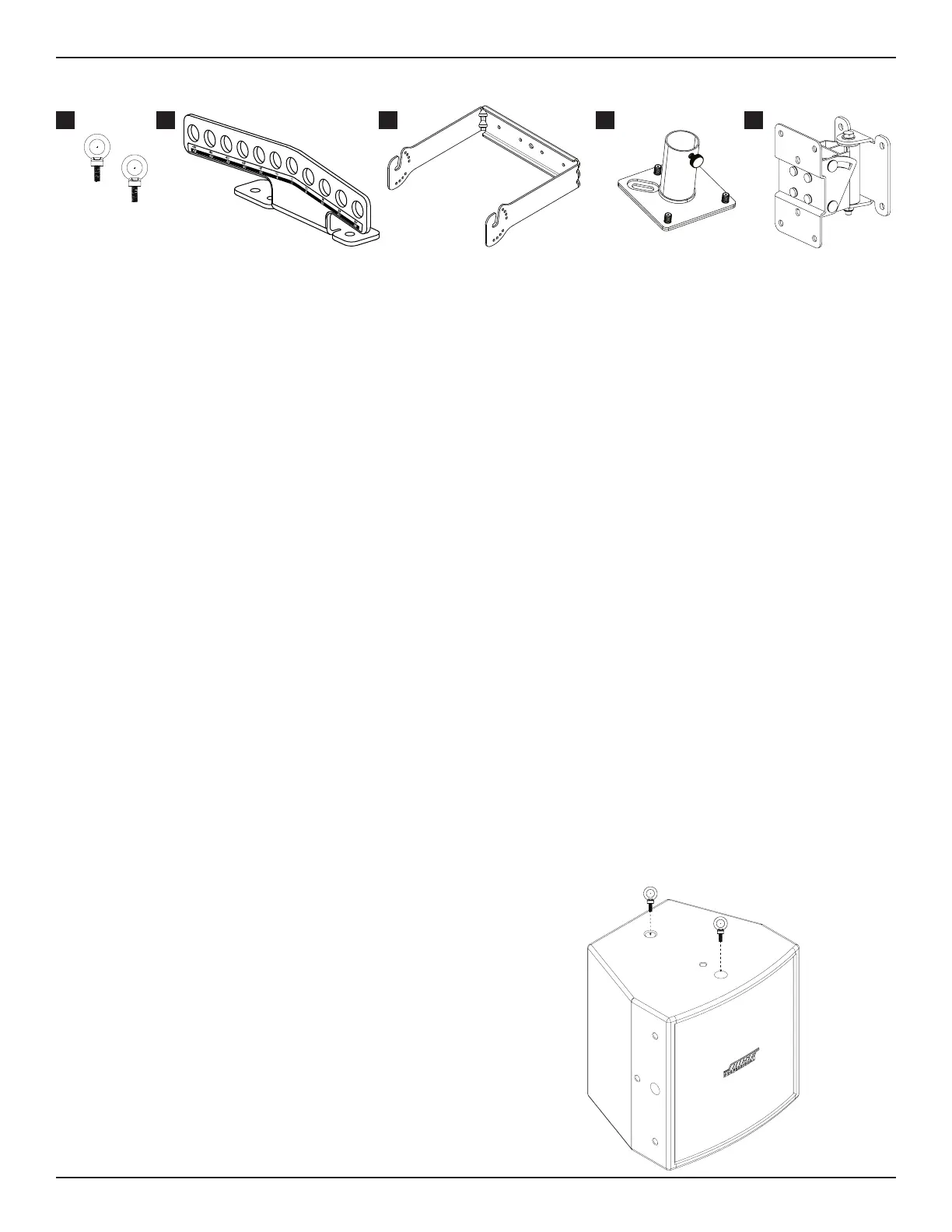

Installation Options
1.
FC108
1. M10 threaded eye bolts
2. AMM Suspension Bracket
3. FC108 U-bracket
4. AMUPOLEAT
5. Surface-Mount Pan and Tilt Bracket
FC112
1. M10 threaded eye bolts
2. AMM Suspension Bracket
3. FC112 U-bracket
4. AMUPOLEAT
Installing the Loudspeaker with Eye bolts
1. To suspend the loudspeaker with eye bolts, attach M10
threaded eye bolts to the two M10 threaded attachment
points on the top panel of the loudspeaker. Use only load-
rated eye bolts intended for lifting.
2. Hang the loudspeaker in your desired mounting location.
For easier angle adjustments, use the AMM Suspension
Bracket, Surface-Mount Pan and Tilt Bracket, FC108
U-bracket, or FC112 U-bracket.
2. 3. 5.4.
