50 | English

– Mount the measuring tool onto the rotating mount(18) and place it on the floor.

Switch on the measuring tool and select point mode. Allow the measuring tool to level

in.

GCL 12V-50-22 CG

5 m

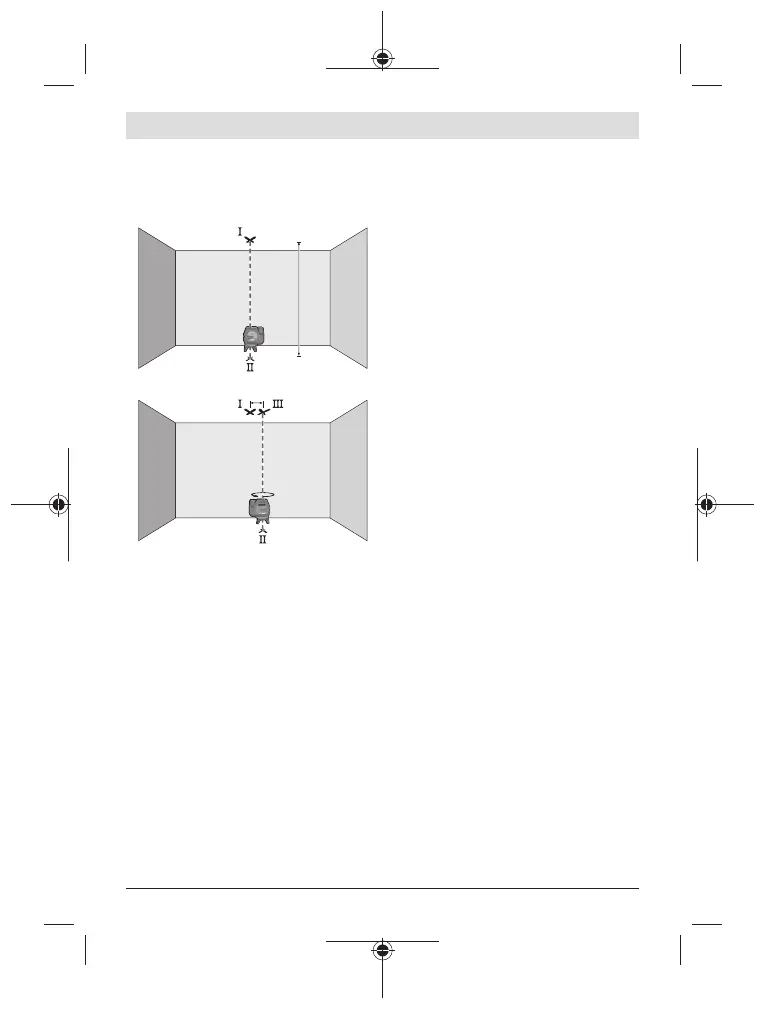

– Mark the centre of the top laser point on

the ceiling (pointI). Also mark the centre

of the bottom laser point on the floor

(pointII).

d

180°

– Turn the measuring tool by 180°. Posi-

tion it so that the centre of the bottom

laser point falls onto the marked pointII.

Allow the measuring tool to level in.

Mark the centre of the top laser point

(pointIII).

– The discrepancy d between the two marked pointsⅠ and Ⅲ on the ceiling reveals the

actual deviation of the measuring tool from the vertical plane.

You can calculate the maximum permitted deviation as follows:

Doubled distance between floor and ceiling×0.7mm/m

Example: At a floor-to-ceiling distance of 5m, the maximum deviation amounts to

2×5m×±0.7mm/m=±7mm. The pointsⅠ and Ⅲ must therefore be no further than

7mm from each other.

Working Advice

u Only the centre of the laser point or laser line must be used for marking. The size

of the laser point/the width of the laser line changes depending on the distance.

Working with the RM20 Rotating Mount (seefiguresA−D)

You can use the rotating mount(18) to rotate the measuring tool 200° around a central,

always visible plumb point. This enables you to align the laser lines without having to

change the position of the measuring tool.
