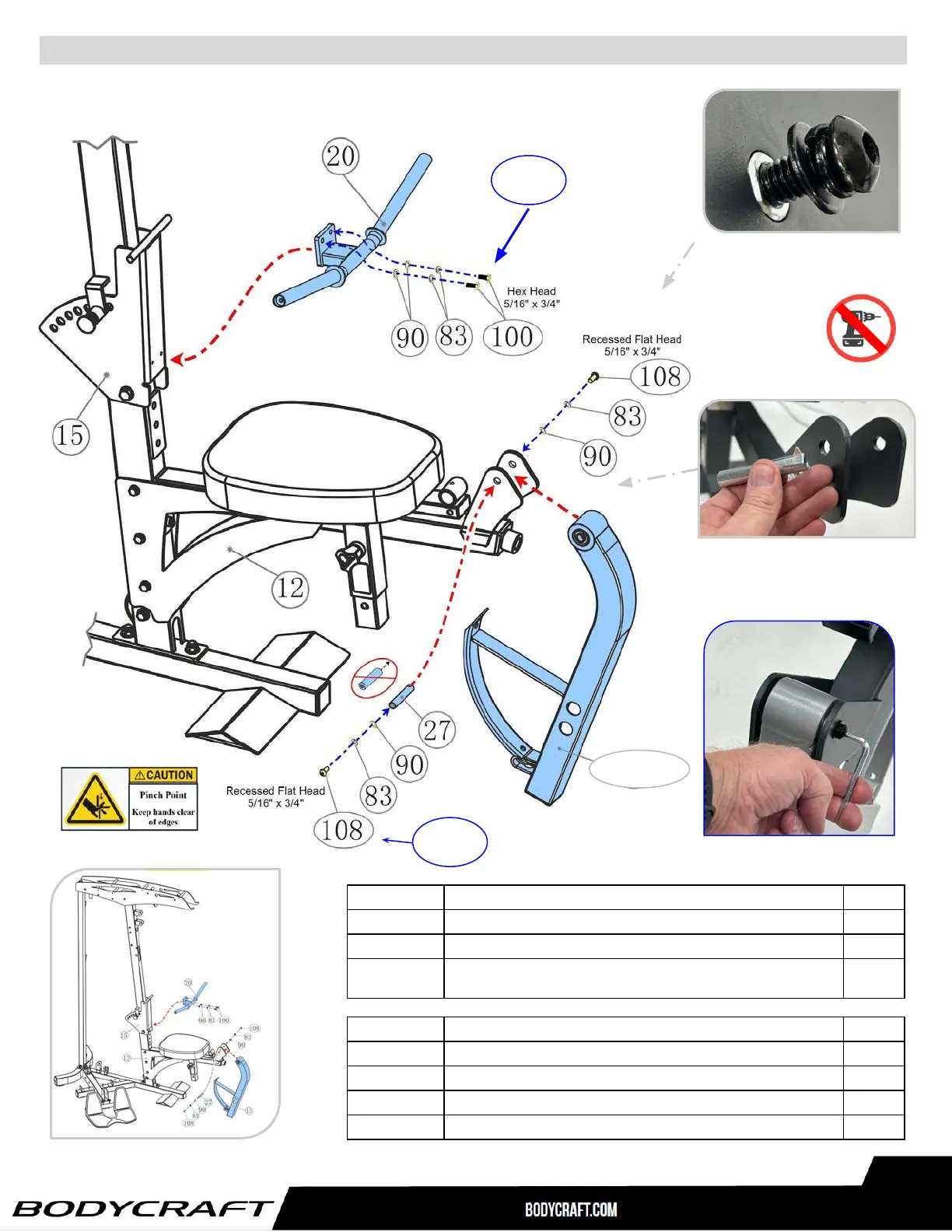

Product Assembly, GT, STEP 3b

23

Please Hand Tighten All Nuts & Bolts Until STEP 6

Flat notch through right side to left side.

Screw, spring washer then

flat washer.

13-ASM

Part # Assembly Parts List QTY

GT-X-013-ASM Leg Extension Arm, w/ Dual Holes for Different User Sizes - Assembly 1

GT-X-020 Frame, Knee Hold Down 1

GT-X-027

Axle, for Leg Extension Arm, w/ one side flat notch, 12.7mm OD x

5/16" threaded ID x 67.5mm L

1

Part # Assembly Hardware QTY

GT-X-083 Washer, Spring, 5/16" - BLK 4

GT-X-090 Washer, Flat, 5/16" - BLK 4

GT-X-100 Bolt, Hex Head, 5/16" x 3/4" L - BLK 2

GT-X-108 Screw, Recessed Flat Head, 5/16" x 3/4" L - BLK 2

STEP 3b: Install Leg Extension Arm & Knee Hold Down Frame

Fully tighten at this time all hardware to

the Recommended Torque Specs

15 ft-lbs

(+/- 2 lbs)

NEED with color

12 ft-lbs

(+/- 1 lbs)
