Product Assembly, GT, STEP 3a

22

STEP 2c: Install Foot Plate to Bottom Frame

Part # Assembly Parts List QTY

GT-X-001-ASM Frame, Bottom - Assembly w/ Serial # 1

GT-X-003-ASM Frame, Front, Upright - Assembly 1

GT-X-004 Frame, Top 1

GT-X-005-ASM Frame, Rear, Upright - Assembly 1

Part # Assembly Hardware QTY

GT-X-085 Washer, Spring, 1/2" - BLK 2

GT-X-088 Washer, Flat, 1/2" - BLK 8

GT-X-099 Bolt, Hex Head, 1/2" x 3" - BLK 2

GT-X-116 Nut, Nylon Lock, 1/2" - BLK 6

9/16 SOCKET &

6” EXTENSION

Recommended Tools

9/16 WRENCH

TIP: Easier to install

hardware when flipped

upside down.

Part # Assembly Parts List QTY

GT-X-011-ASM Adjusting Frame for Seat Pad - Assembly 1

GT-X-029 Pad, Seat 1

GT-X-048 Pull-Pin Locking Knob, Aluminum - BLUE 1

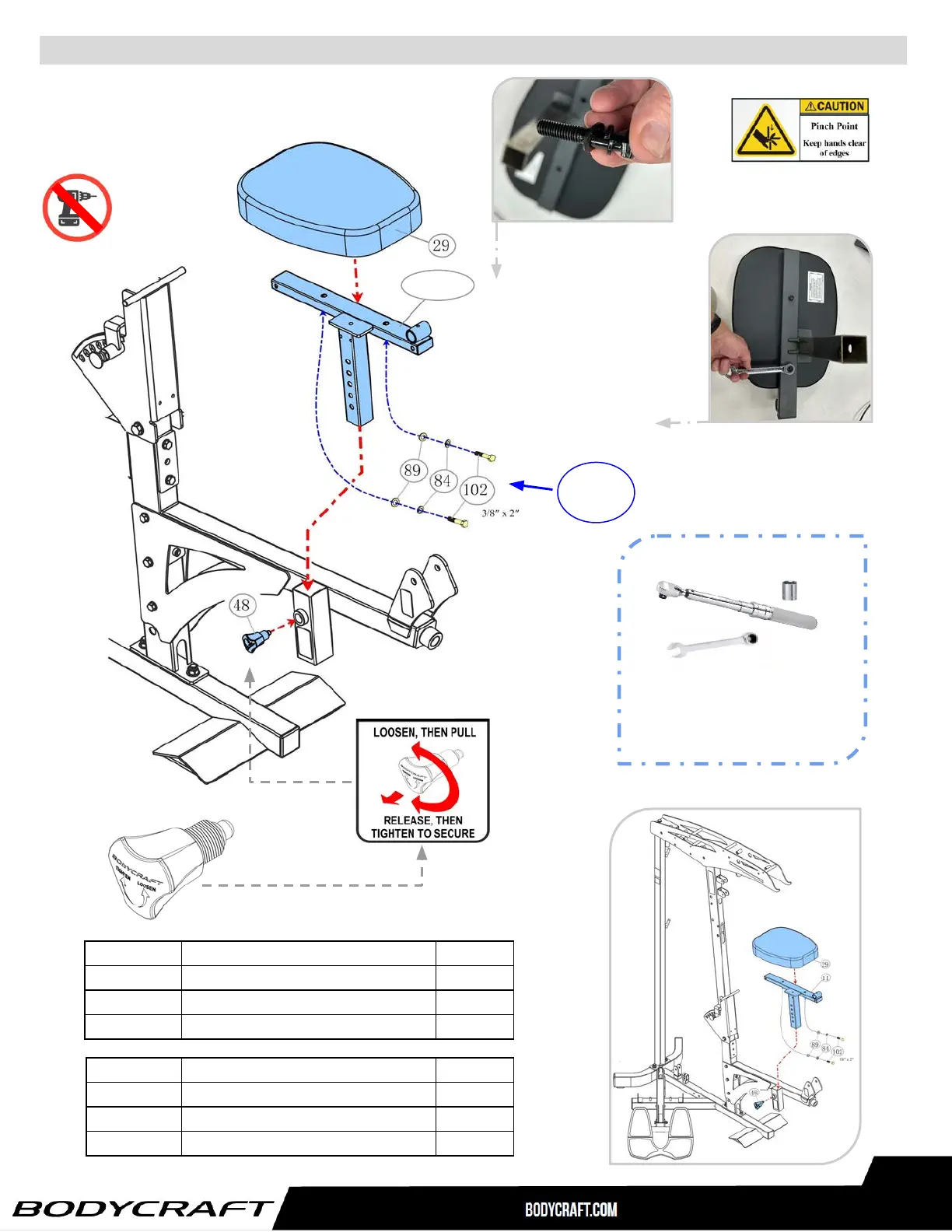

STEP 3a: Install Adjusting

Seat Frame & Seat Pad

Part # Assembly Hardware QTY

GT-X-084 Washer, Spring, 3/8" - BLK 2

GT-X-089 Washer, Flat, 3/8" - BLK 2

GT-X-102 Bolt, Hex Head, 3/8" x 2" L - BLK 2

NEED with color

8 ft-lbs

(+/- 1 lbs)

TORQUE WRENCH w/ 9/16 SOCKET

& 9/16 WRENCH

Fully tighten at this time to the

Recommended Torque Specs

Recommended Tools:

Confirm spring washer

then flat washer.

11-ASM
