HEX100HDVGA-KIT USER MANUAL

contact support@blustream.co.uk / support@blustream.com.au

Terminating the interconnecting HDBaseT CAT cable

It is important that the interconnecting CAT cable between the Blustream HDBaseT products is terminated using the correct RJ45

pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wir-

ing standard as this format is less prone to EMI (Electro-Magnetic Interference).

When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will

only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for your installations, especially

when running over longer distances, in areas of high EMI, or for 4K signal distribution.

Understanding the HEX100HDVGA signal status lights

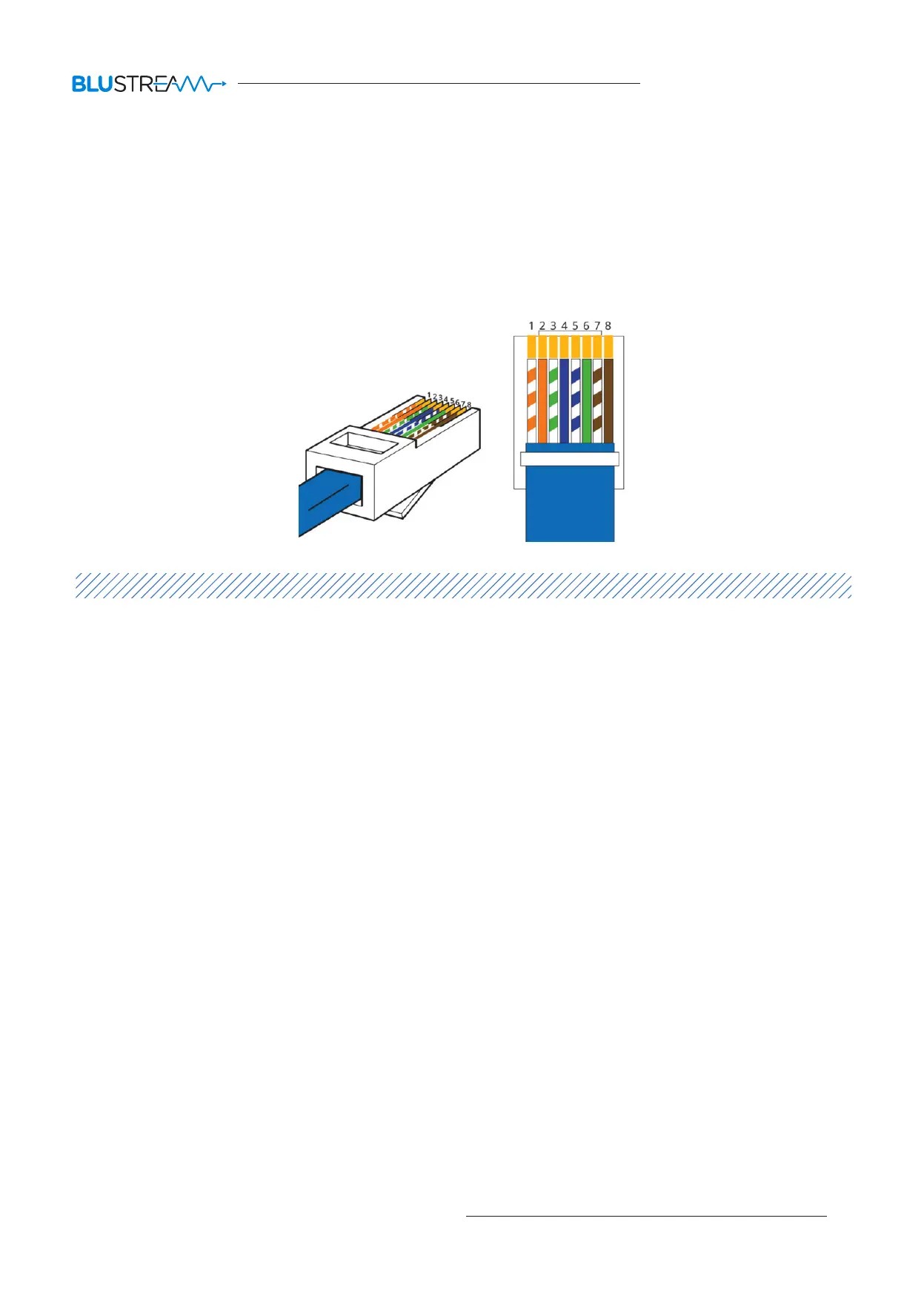

RJ45 Wiring - T568B

The Blustream HEX100HDVGA extender solution includes status LED indicators on both the Transmitter and Receiver products to

show all connections are active and to help diagnose possible problems.

Understanding the status lights:

Receiver:

• The HDMI signal link light will be o when there is no connection with a display/sink

• The HDMI link light will be on when there is an active connection with a display

• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT input

• The HDBaseT link light will blink if there is an unstable connection between the Transmitter/Matrix and Receiver

• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter/Matrix and an

active connection is achieved with the Receiver

• The Power link light will be o when no power is connected to the Receiver, or to the connected Transmitter unit

• The Power link light will be on when power is connected directly to the Receiver or is being received from the Transmitter unit

Transmitter:

• The HDMI signal link light will be o when there is no connection with a source device

• The HDMI link light will be on when there is an active connection with a source device

• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT output

• The HDBaseT link light will blink if there is an unstable connection between the Transmitter and Receiver/Matrix

• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter and an active

connection is achieved with the Receiver/Matrix.

• The Power link light will be o when no power is connected to the Transmitter, or to the connected Receiver unit

• The Power link light will be on when power is connected directly to the Transmitter or is being received from the Receiver unit

Blustream Support department are on hand to assist with signal distribution issues should they arise - please email us at one of

the email addresses below.
