HEX100HDVGA-KIT USER MANUAL
04
www.blustream.co.uk

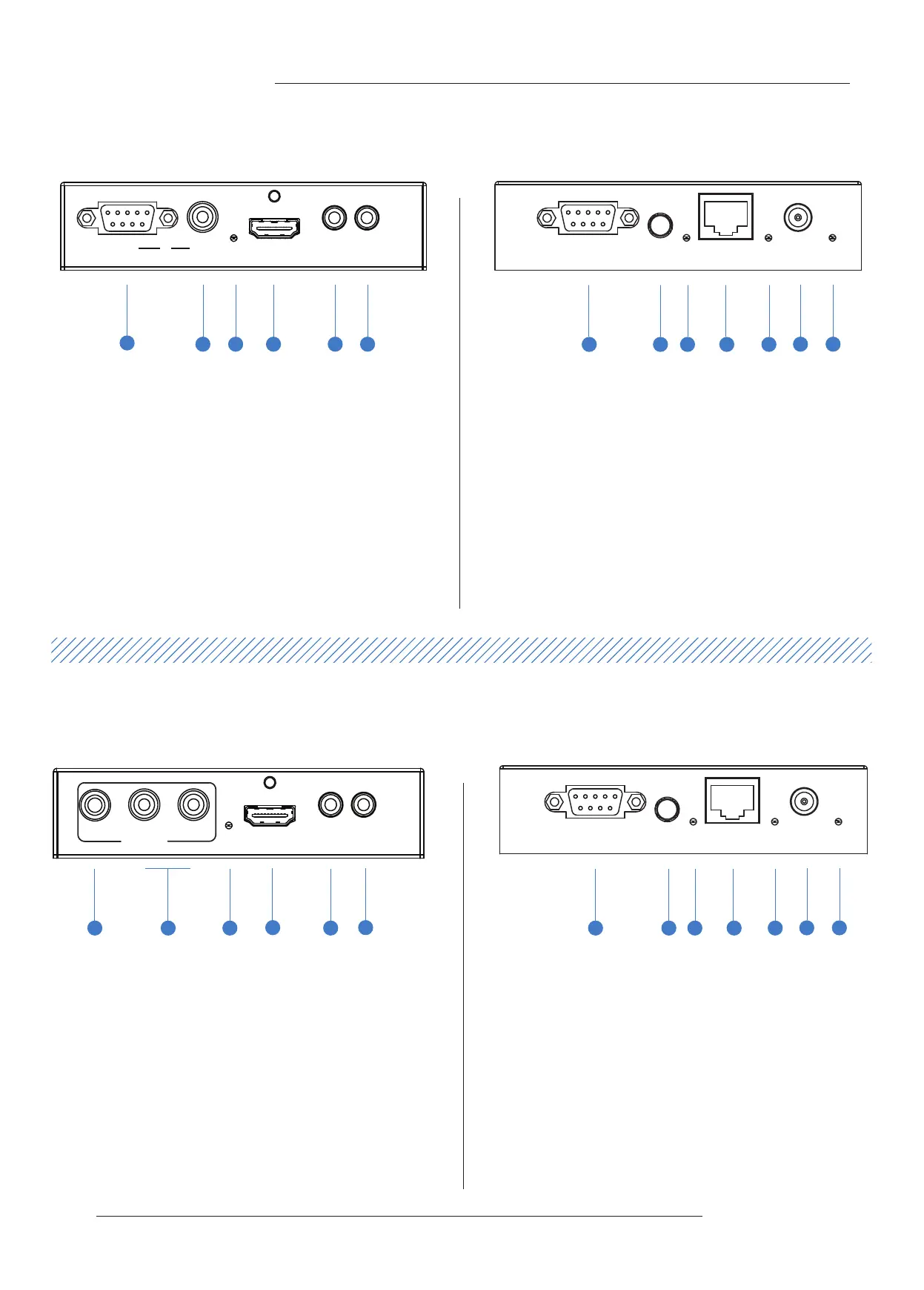

Panel Description HEX100HDVGA-RX
Panel Description HEX100HDVGA-TX
1 2 3
4
5
1
2
1 Coaxial digital audio output
2 Analogue Le/Right audio RCA output
3 HDMI link indicator
4 HDMI output - connect to display device
5 IR RX jack (to IR sensor)
6 IR TX jack (to IR emitter)
1 2 3 4 5
1 RS-232 / serial connector
2 Input select button - switch between HDMI and VGA/
Audio input
3 Input status light: Red = VGA Blue = HDMI
4 HDBaseT input
5 HDBaseT link indicator
6 Power port - DC 12V screw type connector
7 Power status indicator
3 4 5 6
1 VGA input
2 Analogue Le/Right audio input - 3.5mm stereo jack
3 HDMI link indicator
4 HDMI input
5 IR RX jack (to IR sensor)
6 IR TX jack (to IR emitter)
HDBT In
Input
Select
RS232 DC12V
LINK Power
HEX100HDVGA
HDMI
LINK
HDMI Out
Audio Out
Coaxial RL
IR RX IR TX
6
6 7
HEX100HDVGA
HDMI
LINK
HDMI in
Audio
IR RX IR TX
VGA In
HDBT Out
Input
Select
RS232 DC12V
LINK Power
1 RS-232 / serial connector
2 Input select button - switch between HDMI and VGA/
Audio input
3 Input status light: Red = VGA Blue = HDMI
4 HDBaseT input
5 HDBaseT link indicator
6 Power port - DC 12V screw type connector
7 Power status indicator
1 2 3 4 5
6 7
