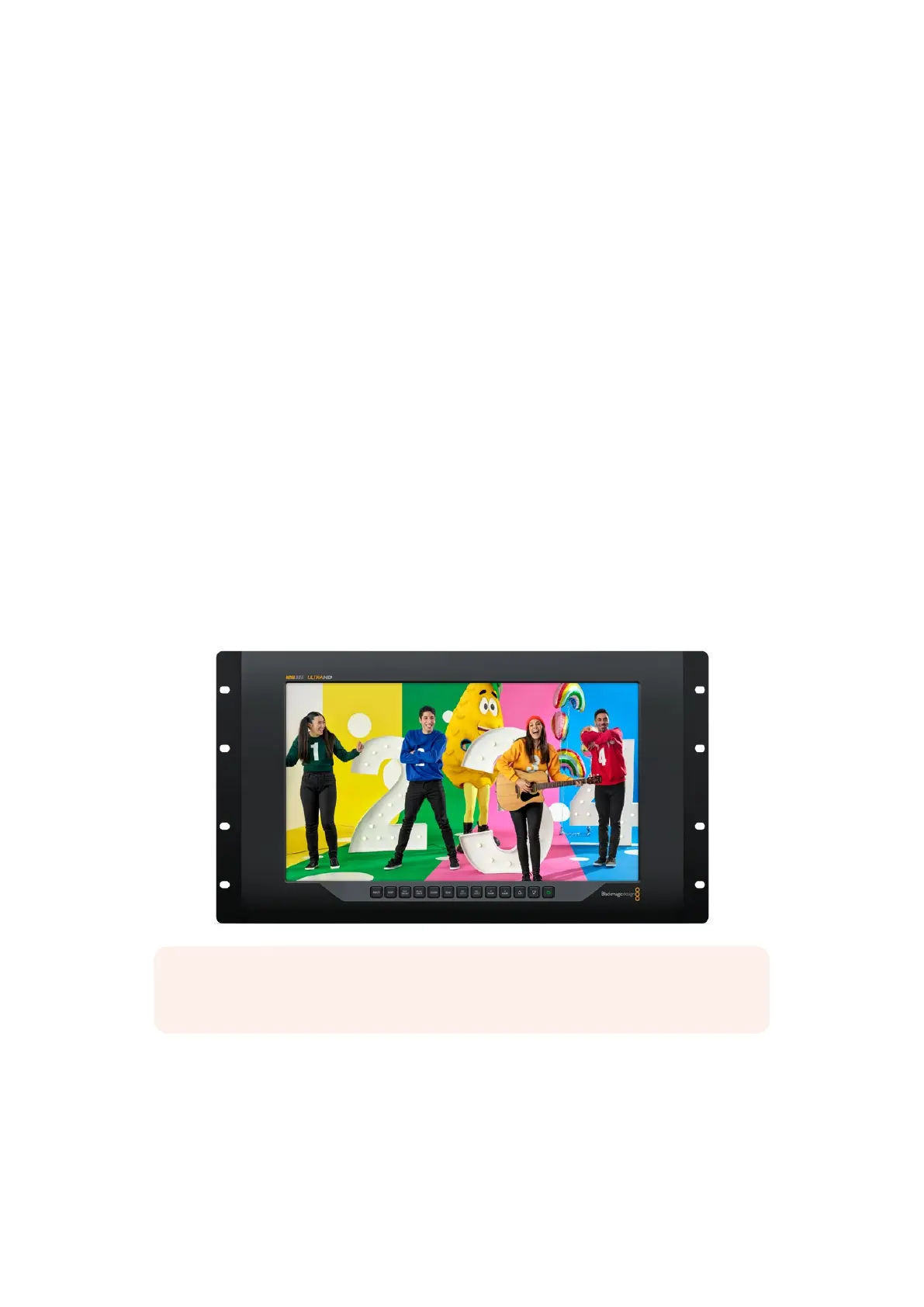

Using SmartView 4K G3

SmartView 4K G3 is a 6 rack unit Ultra HD 12G-SDI broadcast monitor for displaying SD, HD

and native viewing of up to 2160p60 Ultra HD video. With a bright display and a wide viewing

angle, SmartView 4K G3 provides a vibrant, crystal clear picture for accurate focus and color

monitoring, and supports virtually every video format.

Designed for studio and outside broadcast environments, SmartView 4K G3 is incredibly easy

to use. Featuring side mounted connectors and VESA support, you can fit the unit into tight

spaces, or mounted on a wall or articulated arm. SmartView 4K G3 can be operated using the

built in control panel, or remotely via Ethernet if you don’t have access to the front panel.

Two multi rate 12G-SDI inputs let you select between two SDI sources, plus a 2110 IP 10G

Ethernet connector for networking, remote control and ST 2110 IP video and SFP optical fiber

connector that supports 2110 IP video and optical SDI. Other connectors include a tally input

for live production, and a USB port for changing settings and internal software updates using

Blackmagic SmartView Setup.

You can even load industry standard 3D LUTs with .cube extension or DaVinci Resolve

generated LUTs using the Blackmagic SmartView Setup! With 3D LUTs you can connect your

SmartView 4K G3 directly to your camera and view your clips as close to the final grade as

possible. Two levels of focus peaking let you make sure your shots are in perfect focus, and

with support for AC and DC power you have the option to plug SmartView 4K G3 into mains

power, or an external battery for portability on set.

SmartView 4K G3 is the perfect monitoring solution for portable and studio broadcast

production displaying video in SD, HD, and Ultra HD in its native 3840x2160 pixel resolution.

NOTE If connecting external power via the DC power input, ensure your external

power output is capable of supplying 24 watts at 12 volts.
