14
Installation
6005077_a – 24.02.2020
3.5.5 Connect accessories
Depending on the installation situation, available accessories
may be connected to the hood, e.g.:
y Wall box
y Window contact switch
y Control flap
y Recirculated air filter permalyt
Observe the instructions for the accessories.
D ATTENTION!
Danger of damage due to improper connection!
Applied voltage or defective connections can result in
damage to the electronics.
☞ Ensure that the power supply is switched off and remains
so.
☞ Ensure correct assignment of the connections.
☞ Make sure that the accessories plugs are fully inserted.

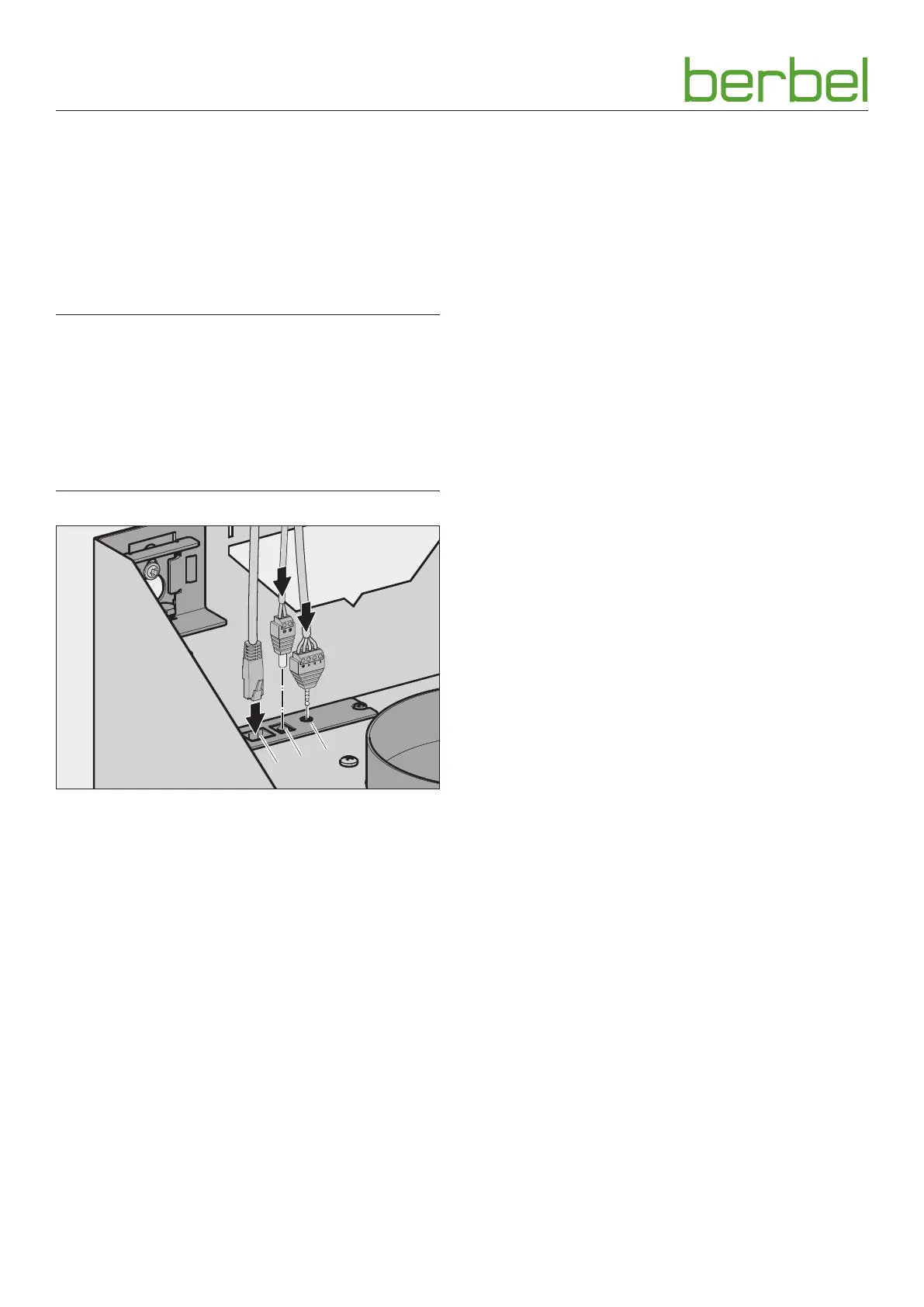

1.
A
B
C
A Jack socket - for connection of wall box, control flap or
recirculated air filter permalyt.
B DC power socket - for connecting a window contact
switch.
C Connection socket (RJ45) – BUS interface for connection
with special accessories of the manufacturer.
Connection with a PC or other devices is not permitted.
Wall box
y The wall box is closed when the control contacts are
open.
y The wall box is open when the control contacts are
closed.
Window contact switch
y The hood‘s fan is only operational when the window is
open.
Safety device
y The hood‘s fan is only operational when no critical under-
pressure is determined in the room.
☞ Connect any available accessories.
☞ Route the cable such that it is not kinked, crushed or
damaged and so that it will not get in the way when
replacing the filter filling.
