Installation
6005077_a – 24.02.2020
EN

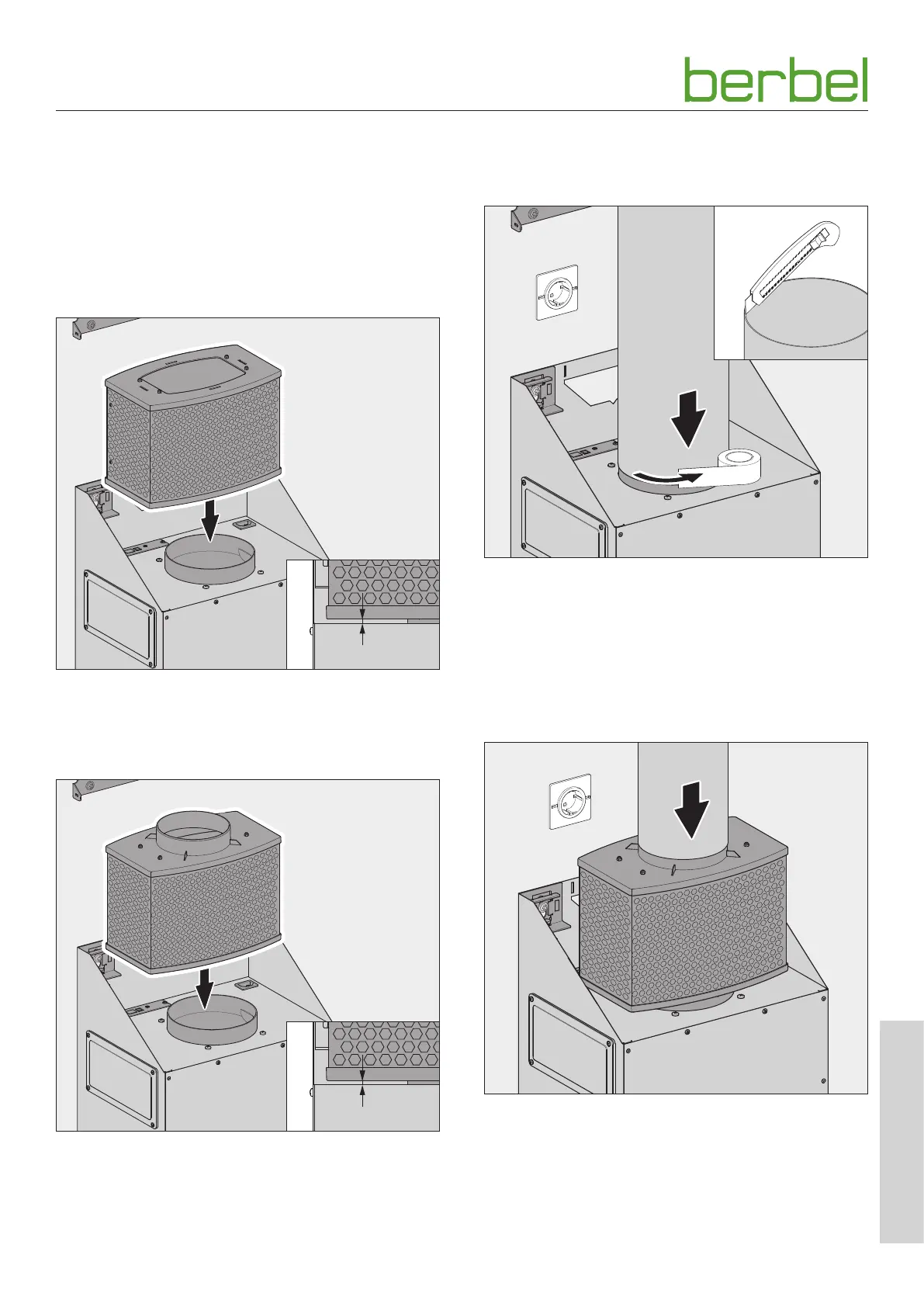

3.5.6 Install filter (with recirculating and hybrid
operation)
There is a pipe connection (Ø 150 mm) on the fan housing as
an installation aid for the installation of the filter.
The filter is placed correctly when the bottom edge of the
filter is parallel to the top edge of the fan‘s housing and the
gap is approximately 3 mm wide.
Recirculated air mode
3
☞ Place the recirculated air filter onto the guide on the fan
housing from above.
☞ Ensure that the recirculated air filter is correctly installed.
Hybrid mode
3
☞ Place the hybrid filter onto the guide on the fan housing
from above.
☞ Ensure that the hybrid filter is correctly installed.
3.5.7 Connect exhaust air ducting (with exhausted
air and hybrid operation)
Extracted air mode
2.
1.
2.
☞ Establish a chamfer on the inside of the exhaust air
ducting.
☞ Fit the exhaust air ducting onto the guide on the fan
housing from above.
☞ Seal the transition between the exhaust air ducting and
the guide with the help of sealing tape (accessory).
☞ Ensure that the exhaust air duct is correctly fitted.
Hybrid mode
☞ Fit the exhaust air ducting onto the collar of the hybrid
filter from above.
☞ Ensure that the exhaust air duct is correctly fitted.
