Floor standing type air conditioner / User Manual
29 / EN
After exhausting, use electronic leakage
detector or soapsuds to check all pipe
connecting portions of outdoor and indoor
units.
6.11 Charging additional
refrigerant (R410A)
The refrigerant charge volume for the unit is
based on using a 5m connecting pipe.
If the connecting pipe is longer than 5m, it is
advisable to charge additional refrigerant for the
unit in order to achieve better operation.
24K:
Additional Refrigerant= (L-5) X 0. 015kg/m
36K/48K:
Additional Refrigerant= (L-5) X 0. 035kg/m
(* “L” refers to length of connection pipe.)
C
Note:
The additional refrigerant should
be charged from the service port
of the 3-way valve when the
appliance is operating in cooling
mode.
Do not allow air enter the
refrigeration system while
charging refrigerant.

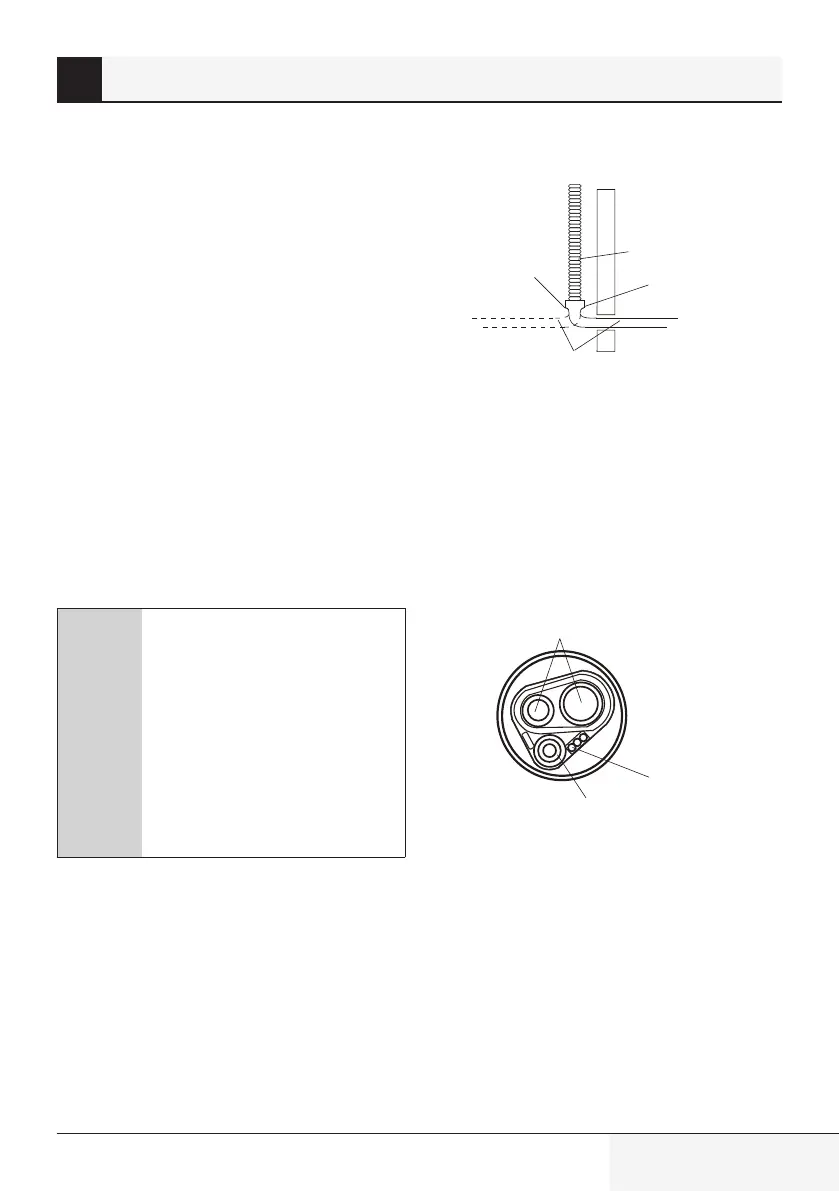

6.12 Drainage arrangement
• Arrange the drainage pipe from wall to
outdoor.
• Slide down the drainage pipe for easy
drainage.
• Connect the attached drain hose to indoor
drainage pipe and stick them well to prevent
condensate from leaking.
• Wrap the indoor part of drainage pipe with
thermal insulation material.
Drain hose
stick here
Indoor drainage pipe
Thermal insulation
from here to indoor
6.13 Wrapping the piping
• Wrap the connecting pipes and cables
together with tape, but it doesn’t include the
drainage pipe. Drainage pipe can be fixed
along them separately.
• Wrapping from the joint of outdoor unit to
that of indoor unit, each round of tape should
cover half of its previous one.
Drainage pipe
Cables
Connecting pipes
6.14 Wiring connection
1. Important notice
• It is the user’s responsibility to make external
wiring connection be finished correctly.
• The external wiring must be conducted by a
licensed electrician and complies with local
codes or ordinances.
• Special attention must be paid to the power
supply (as per rating plate).
