• The suitable power supply of your appliance
has been shown on rating label. The
appliance must ground correctly. The earth
wire should be prepared by user.
• Never change the internal wiring of your
appliance randomly.
2. Steps of external wiring connection
• Remove air intake grille and electric box cover
of indoor unit.
• Remove access door of outdoor unit.
• Connect the power supply connecting
cable between indoor and outdoor unit, and
connect the power supply of electric heater of
indoor unit (if equipped with).
• Please refer to the following pages for details.
• Make sure the cables being fixed well with an
effective anchorage after connecting.
• Grounding work must be carried out for
indoor and outdoor units.
• Install the components removed back to the
unit.

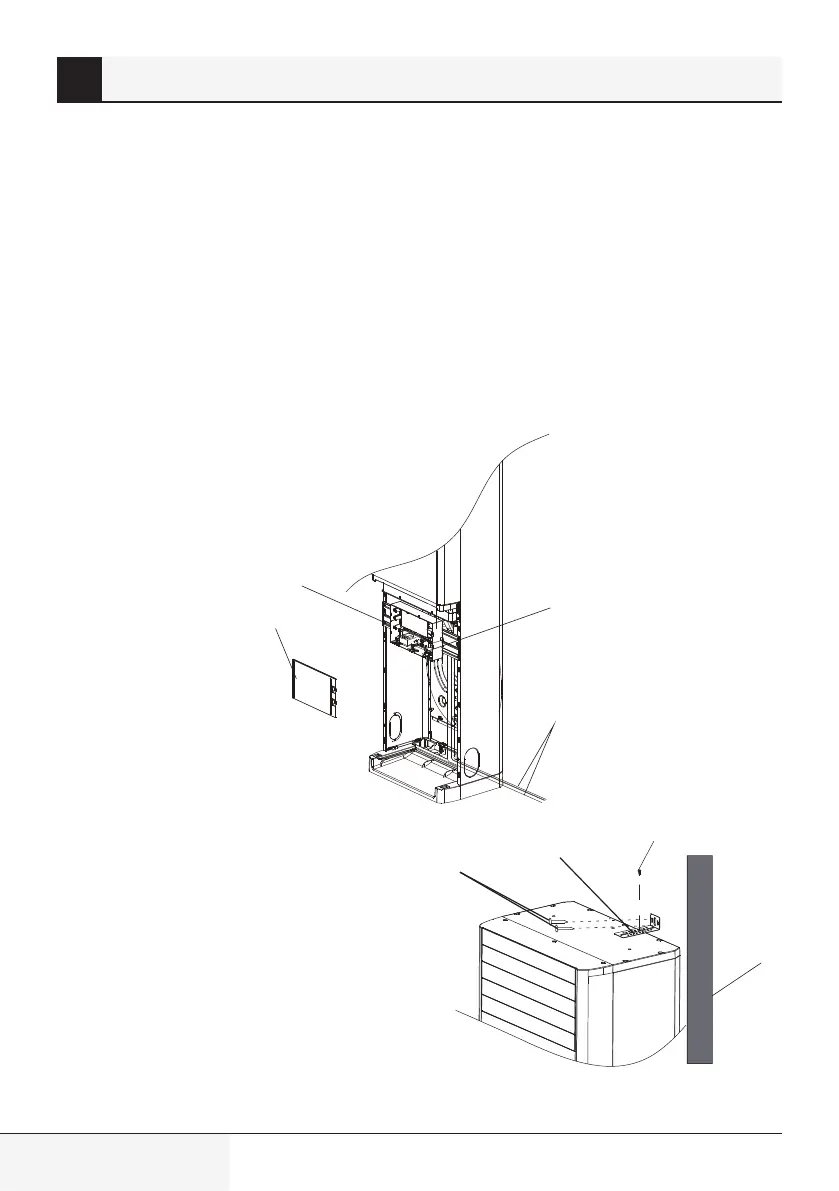

Indoor unit
electric box
Electric box cover
Terminal
Refrigerant
connecting pipes
6.15 Fixing anti-down plate
The indoor unit can be equipped with anti-down
plate.
Anti-down plate can avoid indoor unit tipping to
another side.
Unscrew tapping screws of anti-down plate,
install the plate with indoor unit and the wall.
Fasten it according to the actual space.
Wall
Screws (ST4x12)
Anti-down plate
Steel nail
