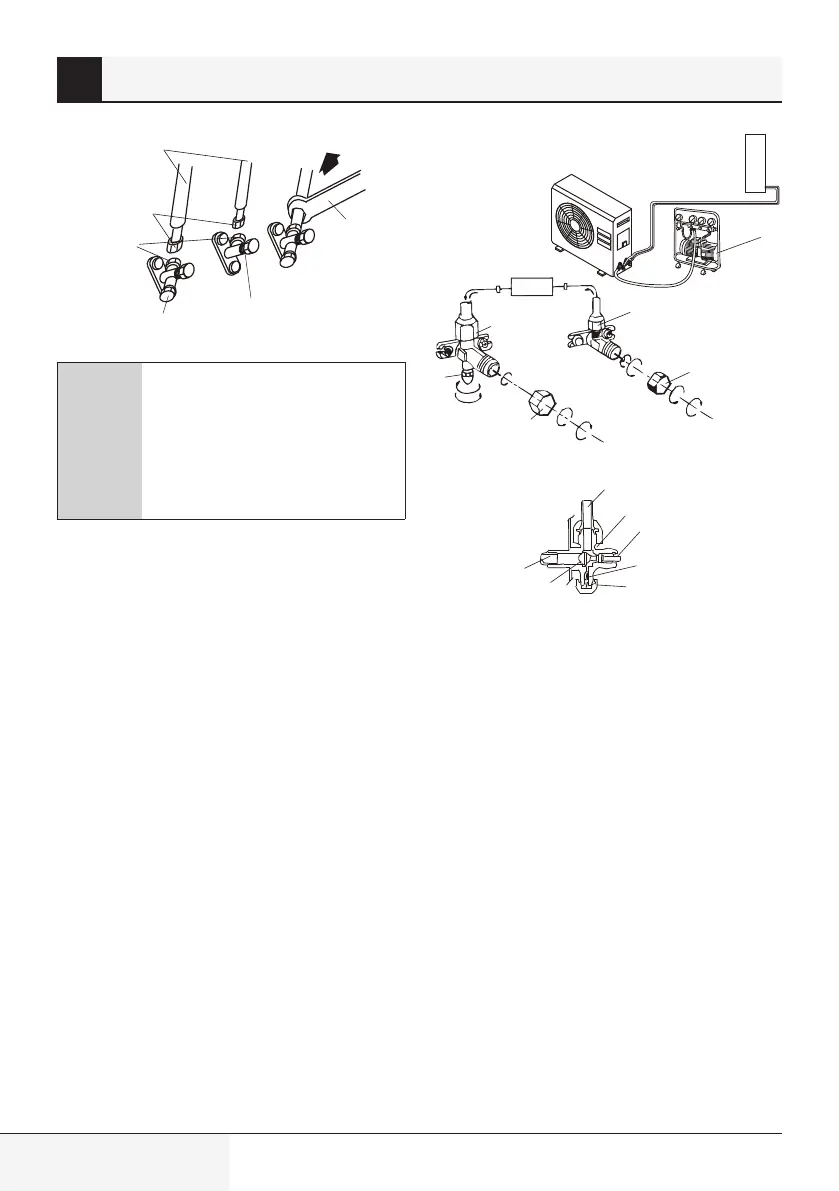

Refrigerant connecting pipes
(small)
(large)
Flared
nuts
Connectors
3-way valve
(low pressure)
2-way valve
(high pressure)
Torque
wrench
A
Warning:
• The pipe goes through the
hole with the seal.
• Do not put the pipes on the
floor directly.
6.10 Air exhaust
Air and moisture inside the refrigeration system
may has the following bad effects:
• Rise of pressure inside the refrigeration
system;
• Decrease of cooling (or heating) effect;
• Moisture frozen and blocking the refrigeration
system;
• Rusting of certain parts of the system
After connecting the indoor and outdoor units, it
is necessary to exhaust the air inside the pipes
completely as follows:
indoor unit
2-way valve
Vacuum
pump
(6) Open 1/4 turn
Valve cap
Valve cap
(1) Turn
(1) Turn
3-way valve
(8) Tighten
(8) Tighten
(7) Turn to fully open the valve
(7) Turn to fully open
the valve
(2) Turn
(8) Tighten
Connect to indoor unit
3-way valve diagram
Open position
Spindle
Needle
Service port cap
Valve core
Connect to outdoor unit
Air exhaust process:
(1) Unscrew and remove caps from the stop
valves.
(2) Connect flexible hose to the service valve.
(3) Start vacuum pump for 10-15 minutes until
reaching a vacuum of 10mmHg absolutes.
(4) With vacuum pump still running, close
the low pressure knob on vacuum pump
manifold. Then stop vacuum pump.
(5) Open 2-way valve 1/4 turn then close it after
10 seconds. Check tightness of all joints
using liquid soap or an electronic leakage
detector.
(6) Turn 2 and 3-way valves stem to fully open
the valves. Disconnect the flexible hose from
the vacuum pump.
(7) Replace and tighten all valve caps.
6 Installation and maintenance
