Floor standing type air conditioner / User Manual
25 / EN
6. Install it where your neighbors would not be
annoyed by operating noise or discharged
hot air.
7. Install it on a fixed shelf that is not subject to
increasing noise.
8. Install it at a place without blockage for air
outlet.
Indoor
unit
Returned oil elbow
Outdoor unit
Max drop height L

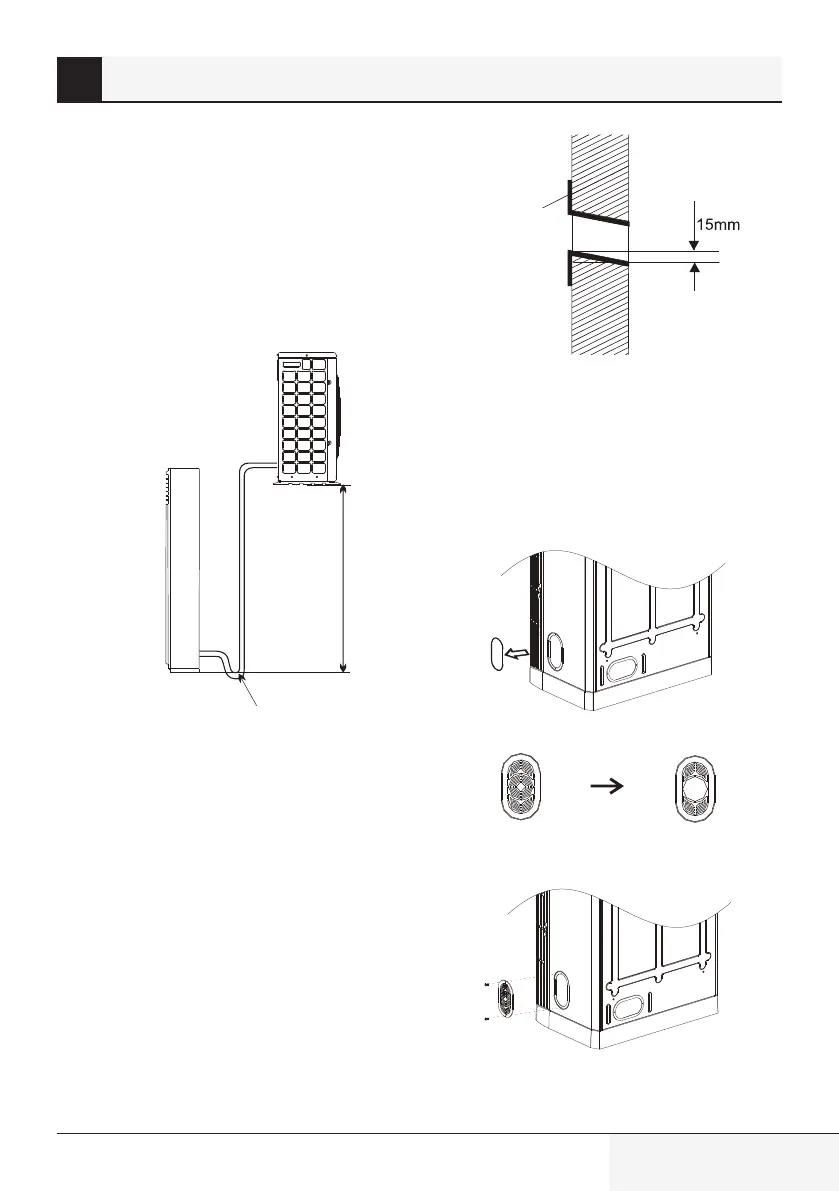

6.6 Wall hole
1. The hole should slide down towards outside
for easy drainage.
2. Install the wall sleeve into the wall hole to
prevent the pipes and cables from being
damaged.
3. Put on the attached wall sleeve and sleeve
cap to keep the wall tidy and clean.
Wall sleeve
Indoor side
Outdoor side
6.7 Pipe direction
Indoor piping, drainage and wiring can be
arranged at 3 optional directions (rear, left, right).
Select a most suitable one for installation
convenience and fixing it with plastic cover
according to the following steps.
1. Cut out holes using hammer, etc.
2. Cut the plastic cover according to the size of
pipes.
3. Fix the plastic cover with screws (ST3*8).
