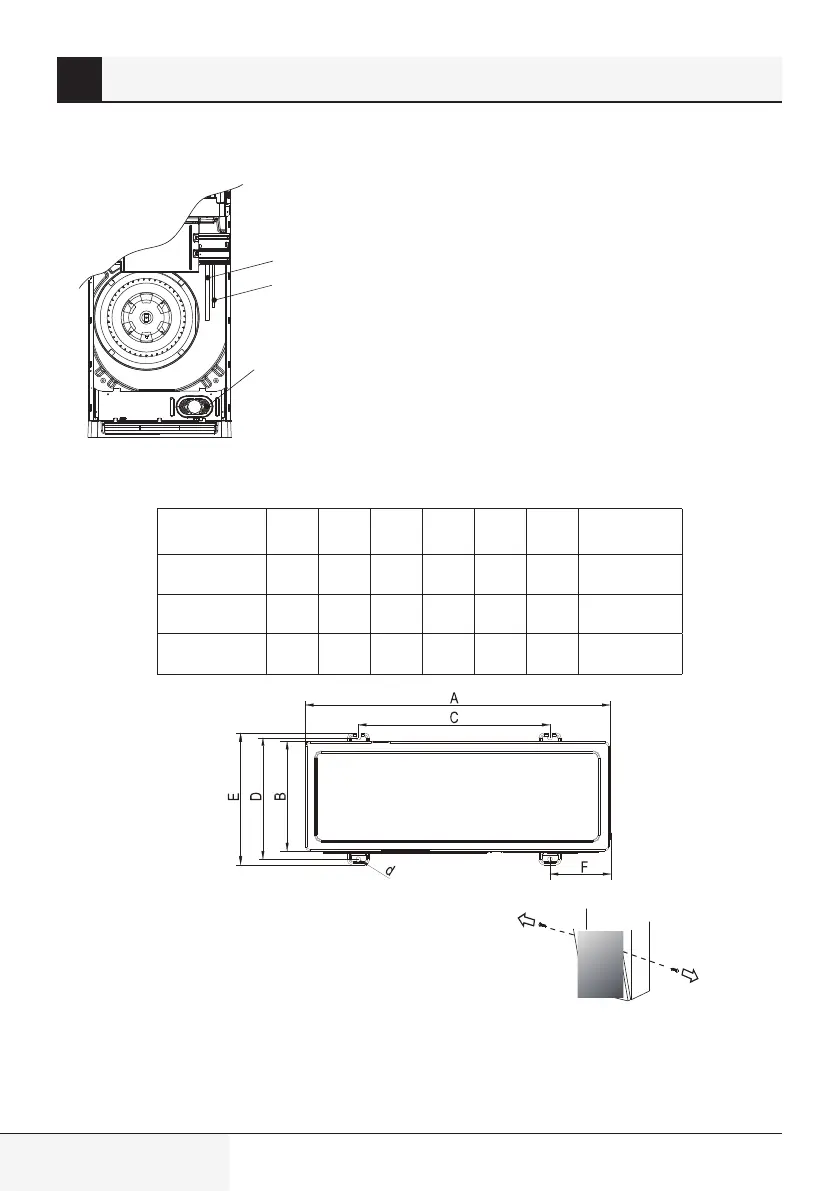

26 / EN
Floor standing type air conditioner / User Manual
At last, take out pipes and wires along the cut off
line on the cover.
Gas pipe
Liquid pipe
For connecting pipes,
drain pipe and cables
6.8 Outdoor unit installation
1. Fix the outdoor unit with 4 bolts, 4 washers
and 4 nuts to prevent it from noise and
vibration.
2. The installation dimensions are as follows.
(Unit: mm)
Model A B C D E F d
24K 860 310 542 341 368 168 11 X17
36K 900 340 608 368 398 146 10 X 20
48K 900 320 535 357 385 195 12 X 20
6.9 Pipes connection
1. Remove the air intake grille
a. Loosen the 2 or 4 Philips screws and
remove the air intake grille.
b. Reinstall the air intake grille after piping
connection of indoor unit has been
finished.
Front air intake
6 Installation and maintenance
