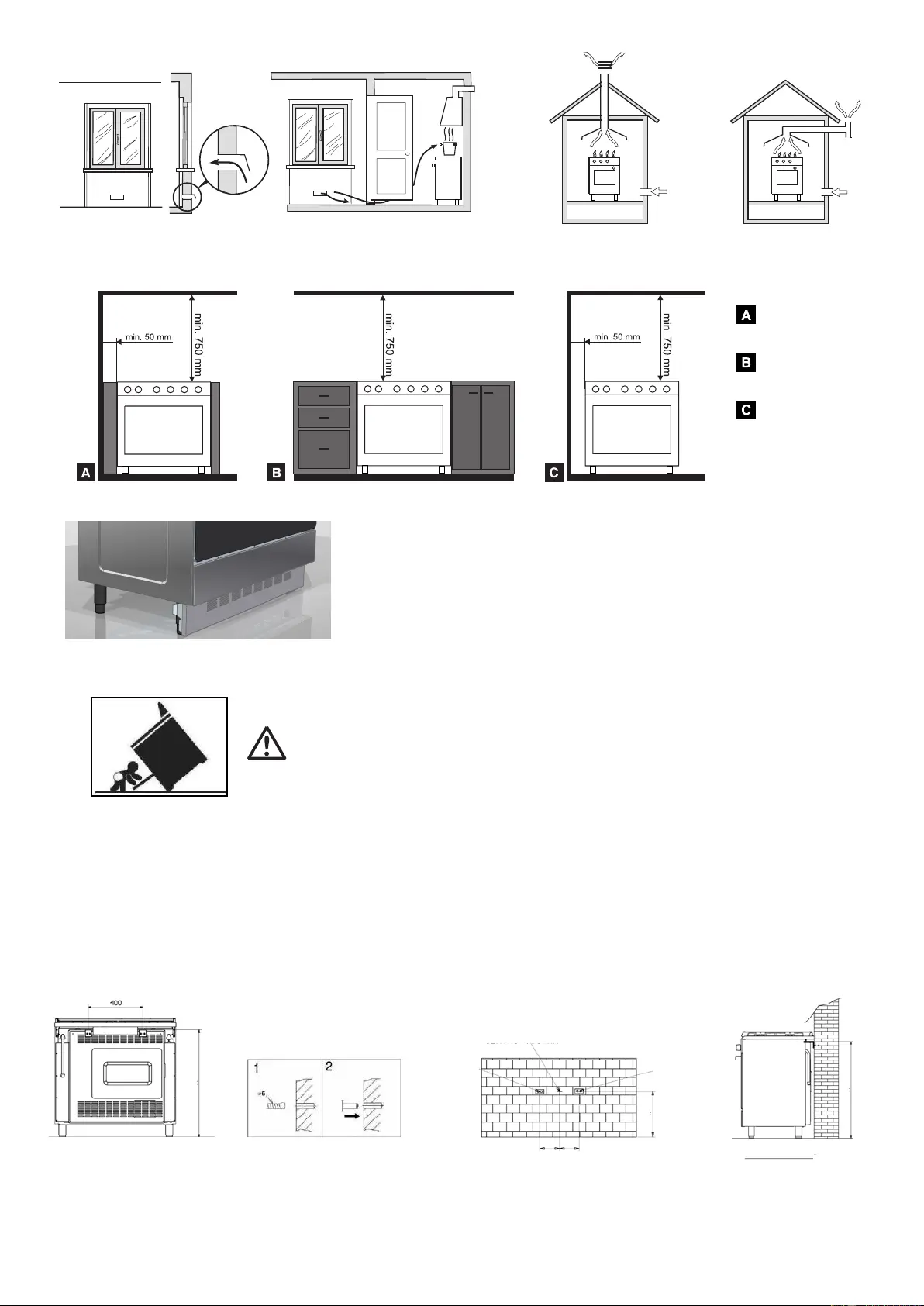

ventilation opening for air ow

required for correct combustion

enlarged hole to allow

adequate air ow from the adjacent room

direct exhaust out-take to the

outdoors

exhaust out-take through the ue

installed for the cooker only

Recessed appliance

(Class 2 sub-class 1)

Recessed appliance

(Class 2 sub-class 1)

Free-standing appliance

installation (Class 1)

A B C D

CENTRE DISTANCE OF COOKER

BRACKET 1

BRACKET 2

200 mm 200 mm

If your cooker has a 90x60, 80x50 cylinder cabinet, or 80x50 cabinet, it is necessary to assemble the brackets at the distance given in the pictures below:

STABILITY DEVICE (only if required by regulation in the country of use and provided as a kit together with the cooker)

ARNING

To prevent accidental tipping of the appliance, it is necessary

1. Children should not play or sit, on the open oven door.

2. Do not lean or sit, on the appliance’s open door. The excessive load may compromise the stability.

3. Do not place hot pans with sharp bottom, on the internal glass.

For models with a width of 50, 60, 70, 80, 90, 100 cm it is necessary to install rear safety devices, as an absolute guarantee against the appliance tipping

forwards, even when bearing heavy loads on the open oven door.

• There is a rear cover panel installed on the rear of the cooker. Measure distance H from the highest point of the panel to the oor (A).

• Use the value of the H measurement to draw reference marks where the holes for the plugs will need to be drilled on the wall where the cooker will be

installed (B).

• Also mark the centre distance of the cooker on the wall at the same previously measured H height (C).

• It is now possible to install the two brackets at a distance of 400 mm from each other (200 mm from the centre distance) and position the cooker against

the wall under the two brackets (D).

to install this stabilizing device as shown in the pictures below.

g. 12 g. 13

g. 14

If a closing panel is applied on the feet of the kitchen, make sure that

there is a grid with a passage section > 100 mm² so as to guarantee proper

ventilation of the gas burners inside the oven cavity.
