3
REV. 1/10/25 INSTAXTC-TY1
3

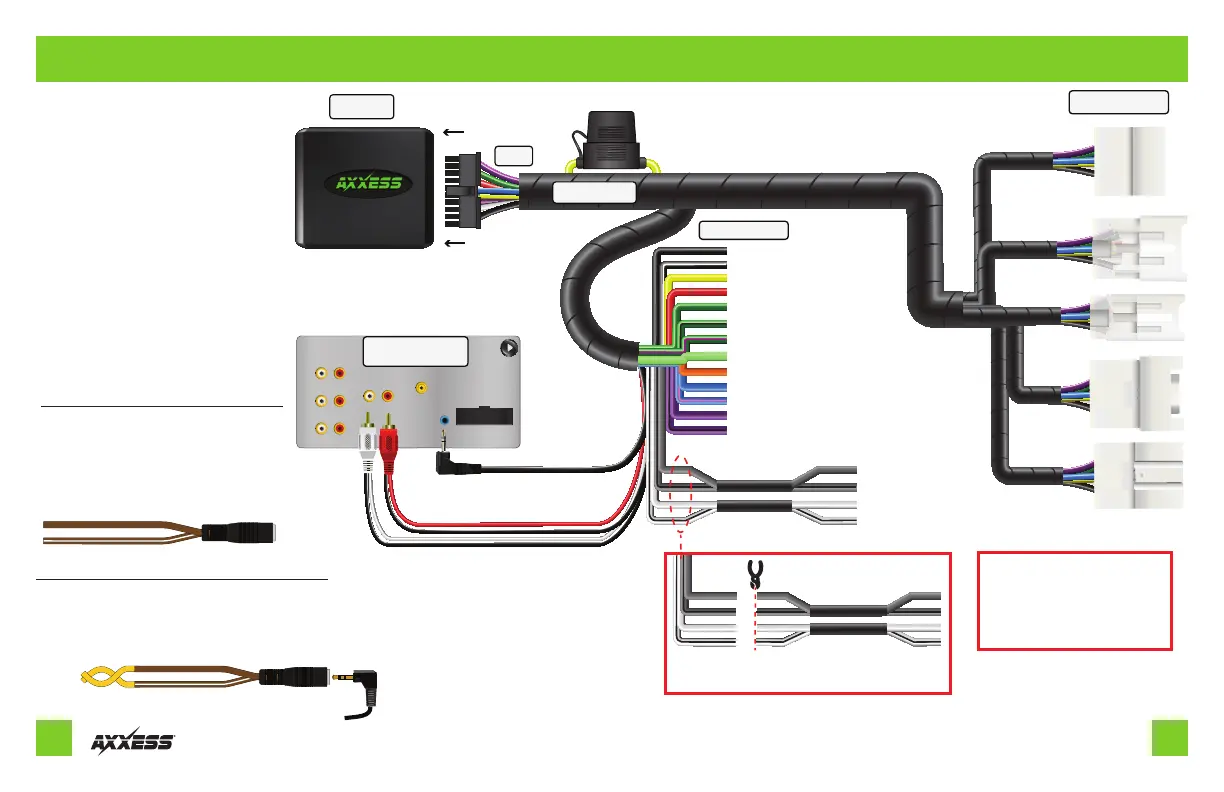

INTERFACE CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
LD-SWCX-TY1
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse Signal
Light Green - Parking brake
Orange - Illumination
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
For NON-AMPLIFIED models ONLY, remove voltage limiter extensions
from the GREY, GREY/BLACK, WHITE & WHITE/BLACK Wire(s).
Blue -Antenna turn on
Blue/Pink - VSS/Speed-Sense
Red - Accessory power
Yellow - Battery wire
Black - Ground wire
Black/White - Shield GND
20-Pin
Vehicle Connectors
Radio Connections
Interface
LED Light
Reset Button
Note: The 2’ long harness with a 24-pin
connector is a service harness for setting
the clock with the factory radio. Run this
harness to a location where it can be easily
accessed, yet hidden.
3.5mm Adapter (for vehicles with Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1)
From the 3.5mm adapter, tie the Brown and Brown/White wires together with
tape or connector
2)
Connect the 3.5mm adapter to the 3.5mm jack from the LD-SWCX-TY1 Harness
3) Program the AXTC-TY1 per the instructions on page 4. Disregard steps 4 & 5.
