REV. 8/23/24 INSTAXTC-HN1

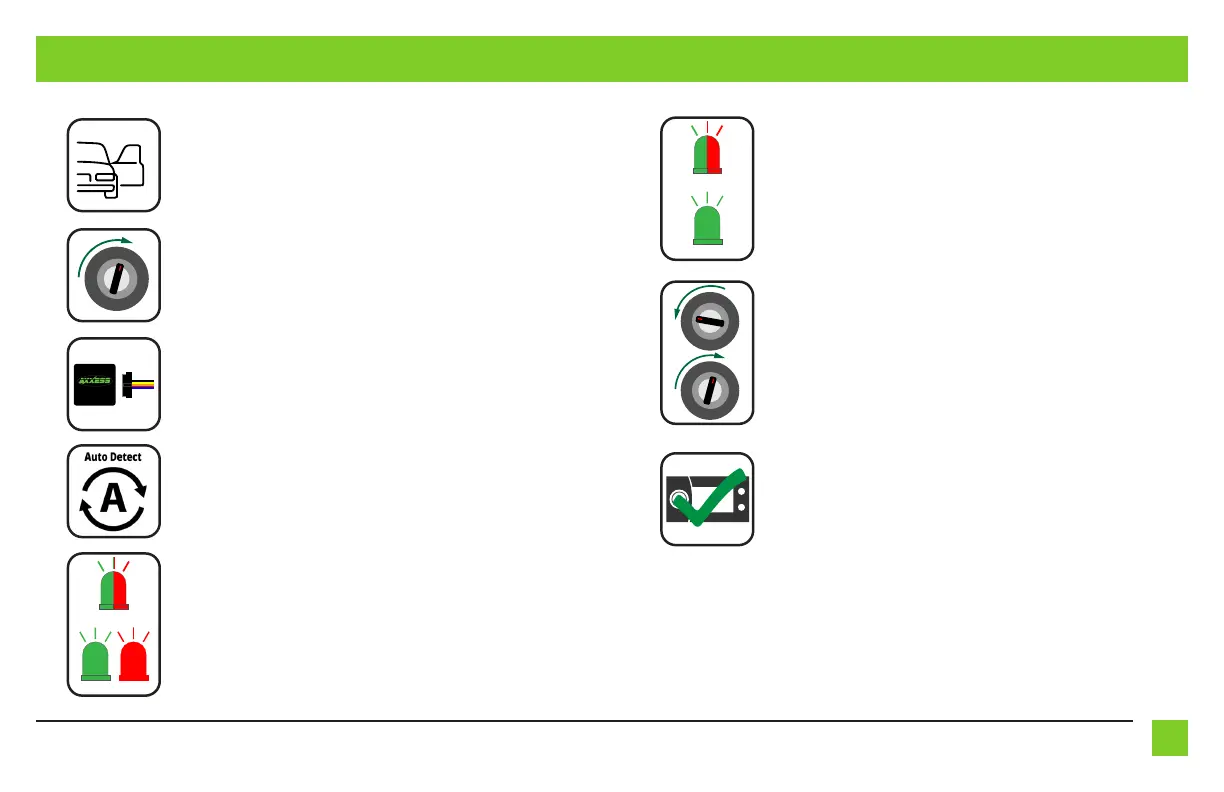

Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the AXTC-HN1 harness to the AXTC-HN1 interface, and then to
the wiring harness in the vehicle.
The AXTC will enter auto-detect mode. No additional action is required.
The LED will flash Green & Red while the interface programs the radio to
the steering wheel controls. Once programmed, the LED will go out, then
produce a pattern which will identify the radio type installed. Refer to
the Radio LED Feedback section under Troubleshooting for radio types
.
*Only applicable if vehicle came with steering wheel controls
PROGRAMMING
1.
2.
3.
4.
5*.
O
F
F
A
C
C
O
N
S
T
A
R
T
Green & Red LED
Green or Red LED
The LED will go out, then once again quickly flash Green & Red while
the interface programs itself to the vehicle. Once programmed, the LED
will go out again, then turn solid Green.
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
Note: If the vehicle’s Steering Wheel Controls do not function after the
AXTC-HN1 has completed its programing sequence, unplug connector
E1 from connector E and connect E2 to E. Once completed, hit the reset
button on the interface to restart the programming sequence and test.
Refer to LED Feedback Chart for programming information if needed.
