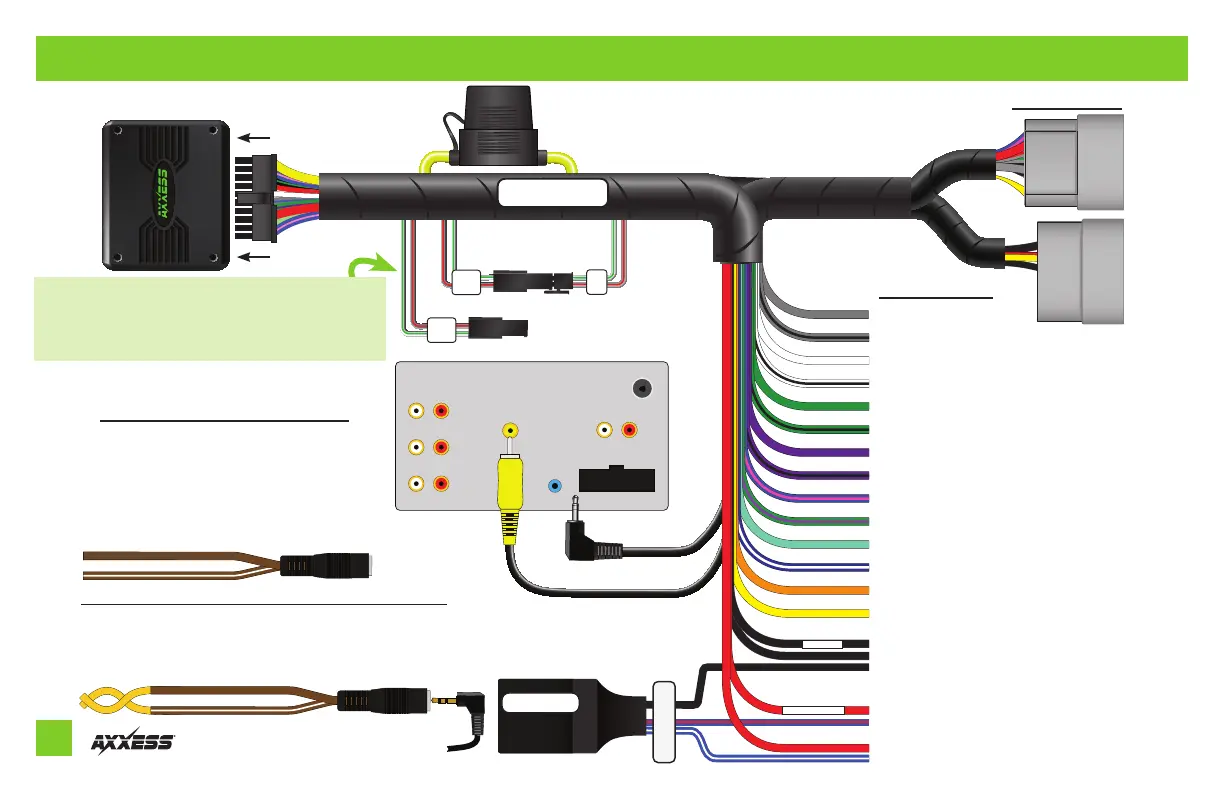

Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED
LD-AFDI-5V *
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Blue/White - Amp turn-on
Orange - Illumination
Yellow - Battery power
AXTC-HN1
E1
E2
E
Red & Blue/White - Accessory power
Red (CAMERA POWER 6V) & Blue/Red - Camera Power
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together
with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-HN1 Harness
3) Program the AXTC-HN1 per the instructions on page 3. Disregard steps 4 & 5
VEHICLE CONNECTORS
RADIO CONNECTIONS
Black & Black X2 - Ground
CAMERA POWER 6V
SWC GROUND
(Connect All Grounds Together)
*Harness #
AXCSD-6V
2
NOTE: If the vehicle’s Steering Wheel Controls do not function after the
AXTC-HN1 has completed its programing sequence, unplug connector E1
from connector E and connect E2 to E. Once completed, hit the reset button
on the interface to restart the programming sequence and test. Refer to LED
Feedback Chart for programming information if needed.
