REV. 7/30/24 INSTAXPIO-HD2

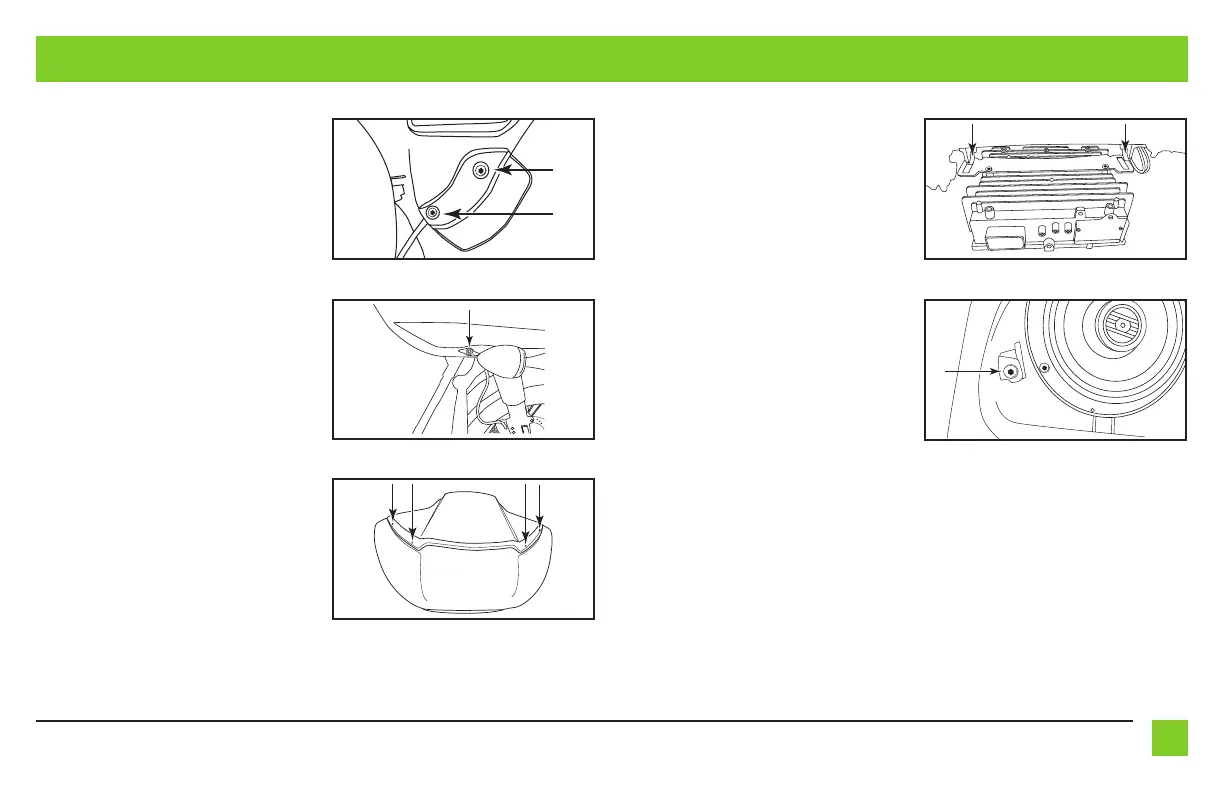

FAIRING DISASSEMBLY (CONT)
Harley Davidson Road Glide 2015-up
1. Remove the lower Torx screws on either
side holding the wind deflector wings
Note: Only the lower two (2) need to be
removed). (Figure A)
2. Remove (1) 3/16" Allen screw from each
of the turn signals. (Figure B)
3. Remove (4) Phillips screws from the
windshield and set the windshield
aside. (Figure C)
4. Remove the top fairing trim clipped to
the top of the radio. (Figure D)
5. Unplug the turn signals.
6. Remove the speaker grills with a panel
removal tool and remove (1) Torx screw
from each side. (Figure E)
CAUTION: The fairing will be loose at this
point. Have a helper hold it to keep from
damaging it when removing the screws.
7. Remove the fairing and set aside.
8. Remove (4) 3/16" Allen screws from the
sides of the factory radio.
CAUTION: Be sure to hold the radio
when removing the last screw so it
does not drop.
9. Unplug and remove the radio.
10. Remove (2) Torx screws securing the
fairing bracket attached to the radio.
Note: This bracket will be reused in the
BC-HDR-K1 kit assembly. Please note the
orientation of the bracket. The curved
portion faces the rear of the bike.
(Figure C)
(Figure B)
(Figure E)
(Figure A) (Figure D)
