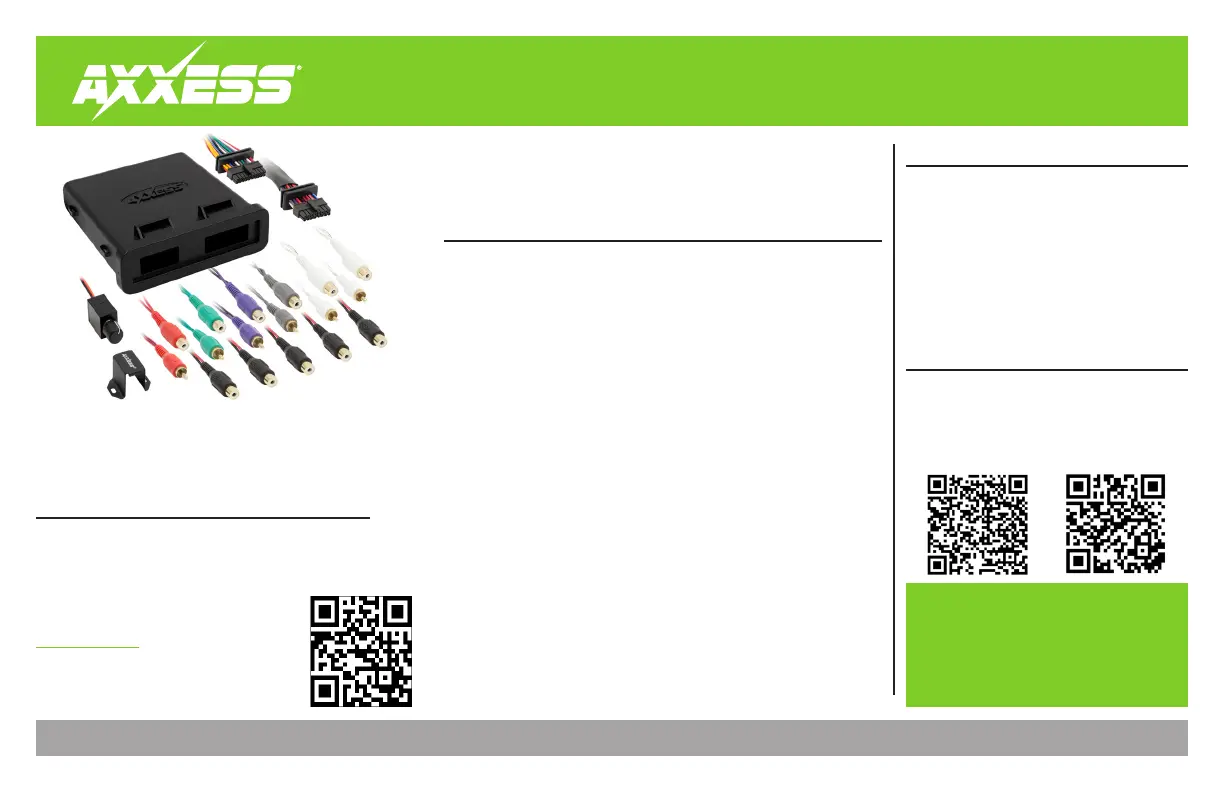

Je bekijkt pagina 1 van 12
AXDSPX-WR
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/12/25 INSTAXDSPX-WR
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Preface/Installation Options ................................. 2
Installation .............................................................3
Connections- Aftermarket radio system ............. 4
Connections- Adding sub to existing radio .........5
Connections- Full system to existing radio ......... 6
Pinout .....................................................................7
Mobile App :Quick Setup ................................... 8-9
Specifications ....................................................... 10
• AXDSP-X circuit board
• AXDSPX-WR harness (with gaskets)
• AXDSPX-WR enclosure (w/ case, cap,and O-ring)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
For Dash Disassembly Instructions, refer to
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
Download AX-DSP-XL App
iOS
®
12.1 or higherAndroid™ 9 or higher
INTERFACE FEATURES
Water-Resistant Digital Signal Processor with
Chime Control and Digital Amp Turn-On Capability
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel
with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Chime control for GM/Chrysler vehicles
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (SYNC
®
/OnStar
®
/ Uconnect
®
/ BlueLink
®
/UVO
®
) if
vehicle is equipped
• Retains factory chimes, including parking sensor and cross path detection
alerts if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for
smartphones and tablets
• Easy behind the radio installation in most applications
• Can be used with factory and aftermarket radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app
• Micro “B” USB updatable
• Includes all of the features of the AXDSP-X
• Housed in a water-resistant case
• Harnesses have a rubber boot that snaps into the housing
