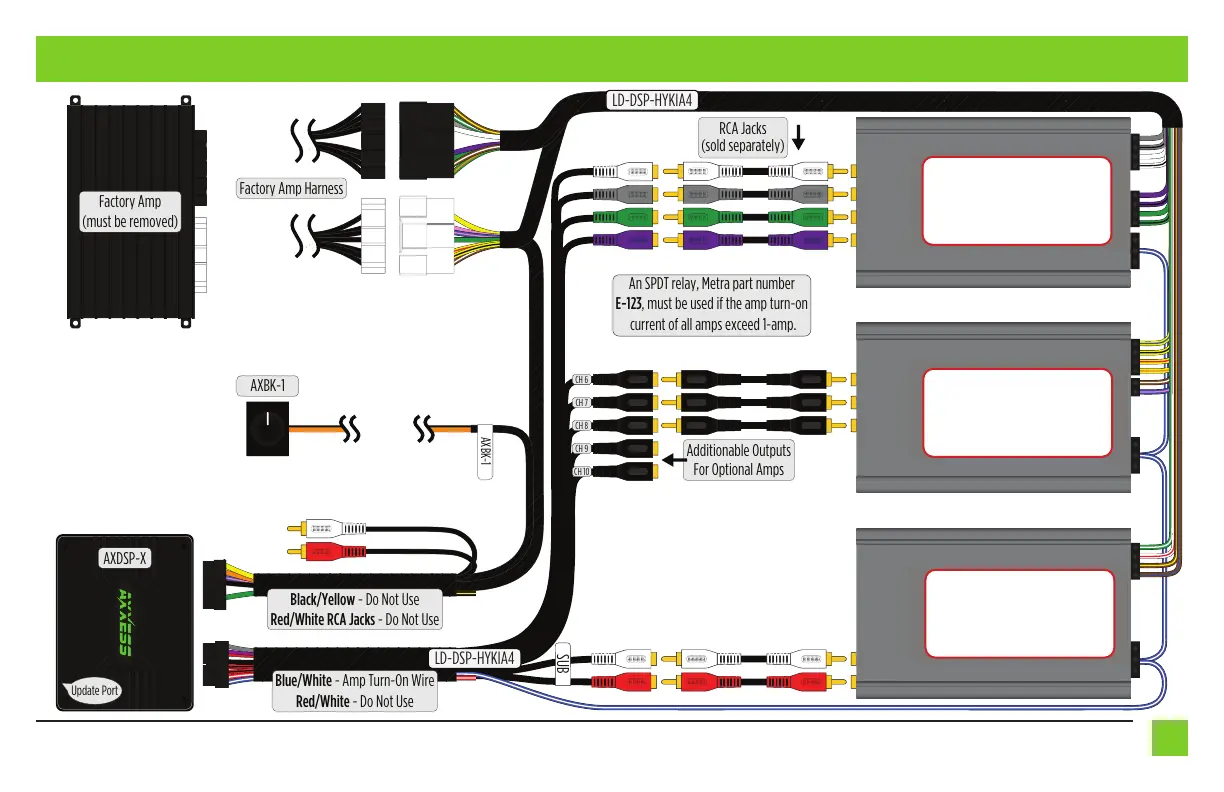

REV. 5/9/25 INSTAXDSPX-HK4
I N STALL ATI O N CO NT.
AXDSP-X
An SPDT relay, Metra part number
E-123, must be used if the amp turn-on
current of all amps exceed 1-amp.
SUB
Factory Amp
(must be removed)
RCA Jacks
(sold separately)
AXBK-1
Blue/White - Amp Turn-On Wire
Red/White - Do Not Use
Additionable Outputs
For Optional Amps
Update Port
CH 6
CH 10
CH 7
CH 8
CH 9
Factory Amp Harness
AXBK-1
Black/Yellow - Do Not Use
Red/White RCA Jacks - Do Not Use
LD-DSP-HYKIA4
LD-DSP-HYKIA4
Note:
Refer to wiring
Amplified Legend Types
chart on page 6
Note:
Refer to wiring
Amplified Legend Types
chart on page 6
Note:
Refer to wiring
Amplified Legend Types
chart on page 6
Note: Refer to wiring
Amplified Legend Types
chart on page 4
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
Please see Speaker Assignment
QR Code located on page 6 of
instructions
