REV. 2/13/24 INSTAXDSPX-A2B1
1
14
13
2 12
24

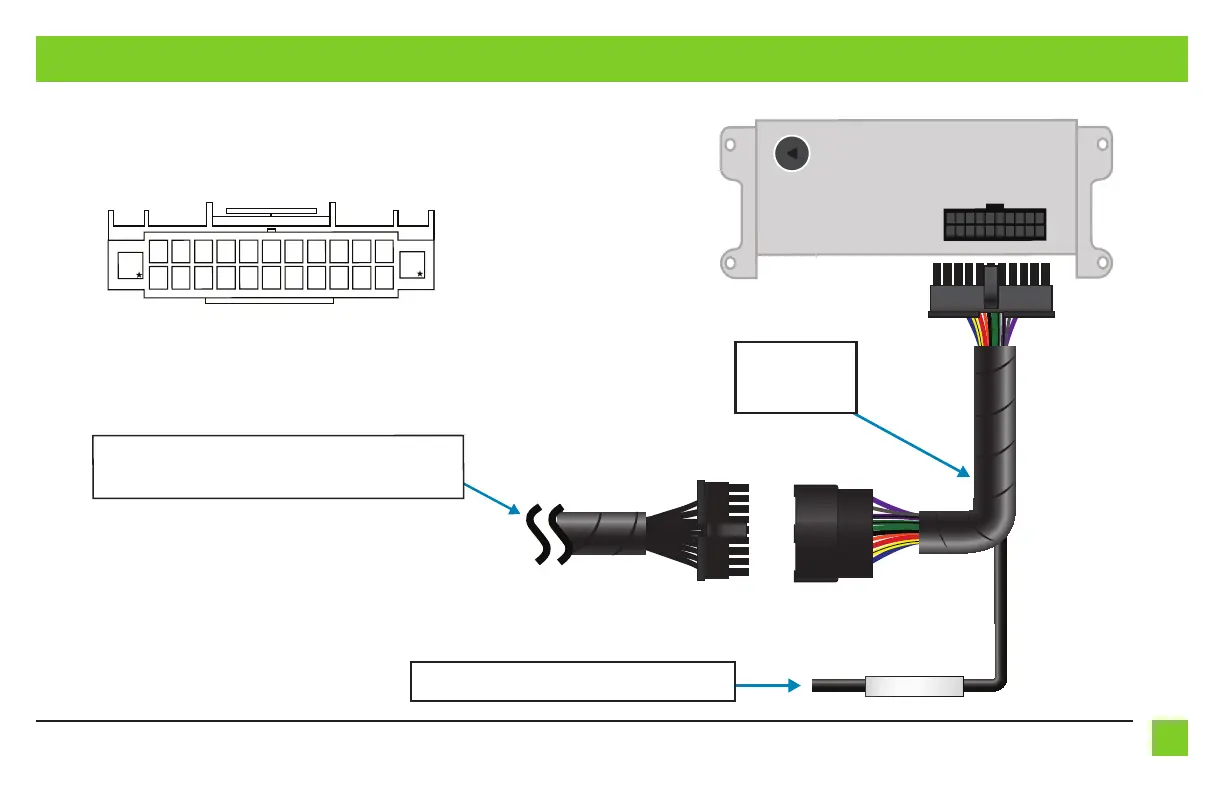

T-Harness
Installation
Location
Interface kit includes a T-harness to tap into the
speakers powered from the vehicle radio chassis
22 Pin
Located Behind Dash
Factory Radio Chassis
Wire Insertion View
Viewed from where the wires go into the connector
LD-FDSPK1
Factory Radio Harness
To OE Speakers
Run speaker wires to aftermarket amplifier(s)
NOTE: For Factory Amplifier Locations,
please see Speaker Assignment QR Code
located on the back page of these instructions.
CONNECTIONS TO BE MADE AT THE FACTORY RADIO’S LOCATION (CONT)
