Black - Ground
Yellow - Battery Power
Red - Accessory power
Green/Purple - Reverse Signal
Orange - Illumination
Blue - Antenna Turn On
Red - Not Used
Orange/White - Not Used
Blue/White - Amp Turn On
Blue/Pink - Not Used
Light Green - Not Used
Green - Rear Left Speaker +
Green/Black - Rear Left Speaker -
Green/Purple - Not Used
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
16-Pin
Purple - Rear Right Speaker +
Purple/Black - Rear Right Speaker -
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Brown - Not Used
Vehicle Connectors
Radio Connections
LD-BX-TY3
22-Pin
LD-2NAVAMP

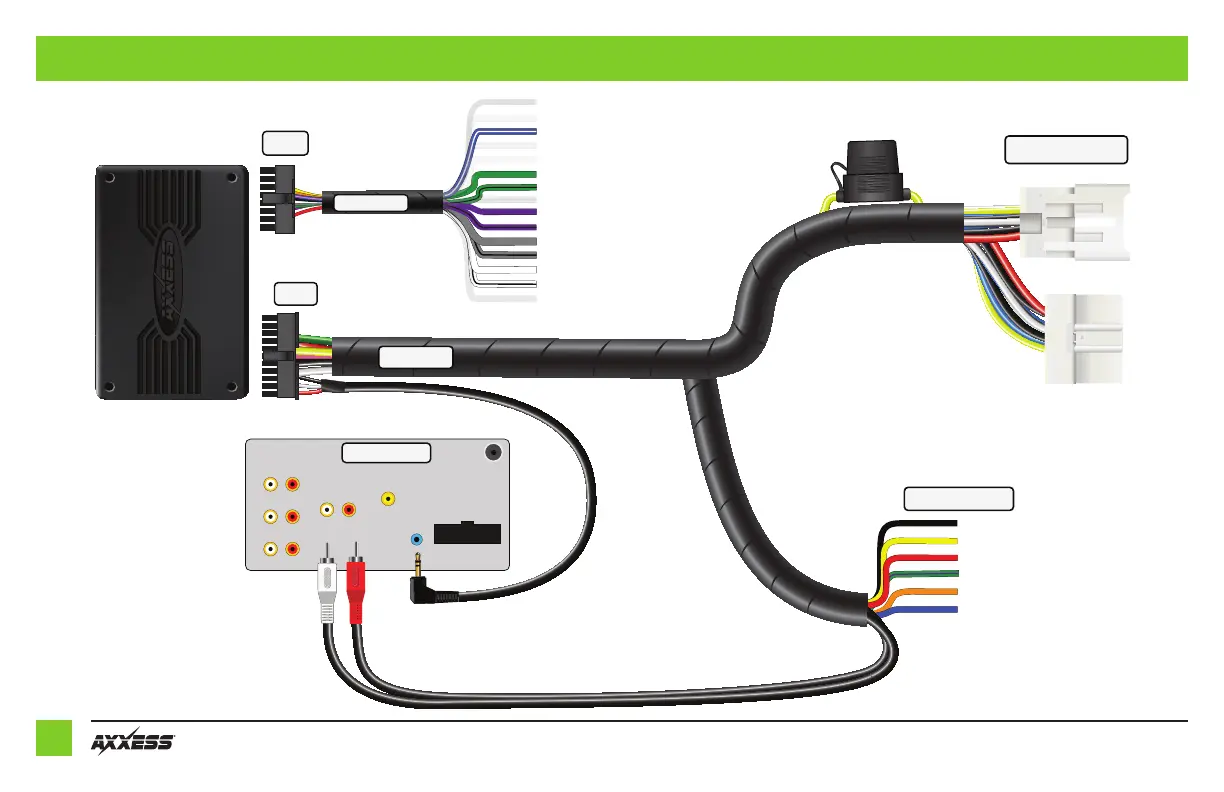

CONNECTIONS: LD-BX-TY3 FOR AMPLIFIED MODELS
