REV. 11/22/24 INSTAXDIS-TY2

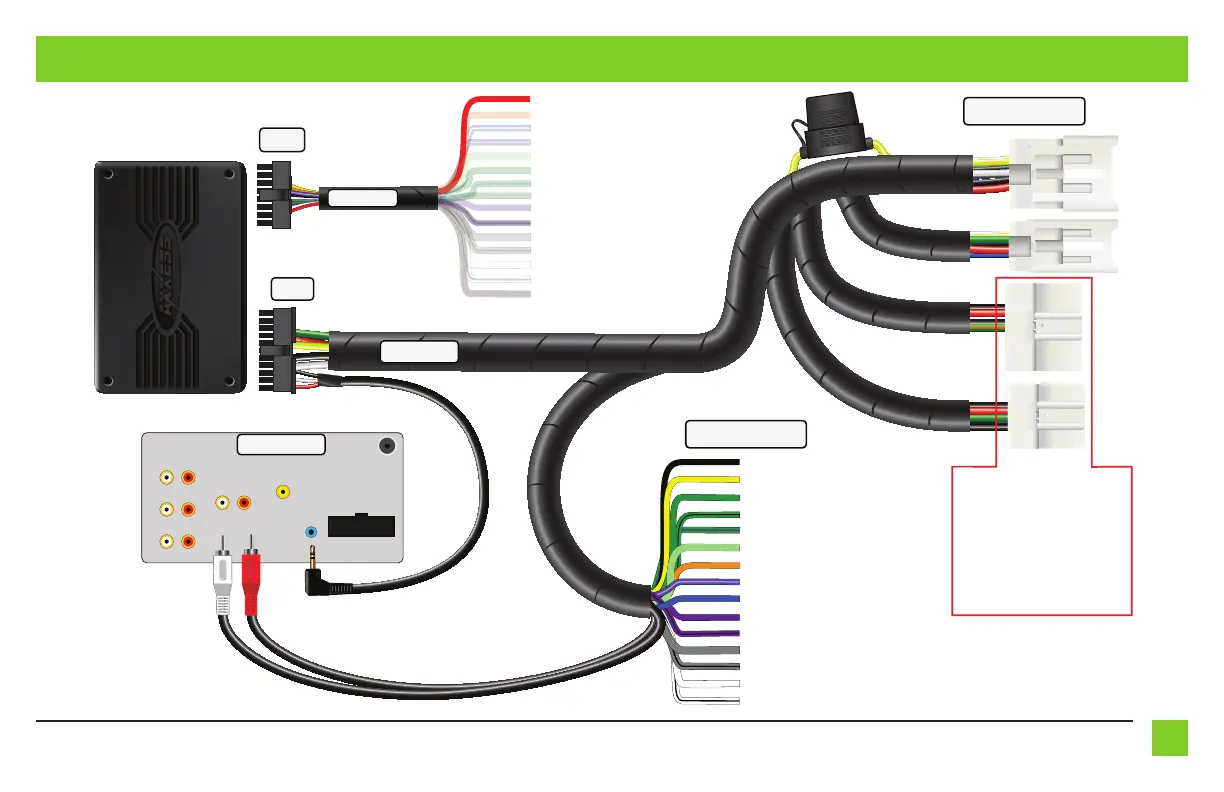

CONNECTIONS: LD-TYNOAMP FOR NON-AMPLIFIED MODELS
Black - Ground
Yellow - Battery Power
Green - Rear Left Speaker +
Green/Black - Rear Left Speaker -
Green/Purple - Reverse Signal
Light Green - Parking Brake
Orange - Illumination
Blue/Pink - VSS
Blue - Antenna Turn On
Purple -
Rear Right Speaker +
Purple/Black -
Rear Right Speaker -
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Red - Accessory
Orange/White - Not Used
Blue/White - Not Used
Blue/Pink - Not Used
Light Green - Not Used
Green - Not Used
Green/Black - Not Used
Green/Purple - Not Used
Brown - Not Used
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
16-Pin
Purple -
Not Used
Purple/Black -
Not Used
Gray - Not Used
Gray/Black - Not Used
White - Not Used
White/Black - Not Used
Vehicle Connectors
Radio Connections
LD-TYNOAMP
22-Pin
28
20
*
*
*
LD-2NAVAMP
The 20 and 28 pin connectors are used
to retain your factory SWC & AUX port.
Only one harness will be used depending
on your vehicle.
The AUX RCA cables in LD-TYNOAMP
harness must be plugged into your
aftermarket radio in order for the AUX-IN
to function correctly.
