INSTALLING THE AXDIS-MB82 INTERFACE
With the key in the off position:
1. Connect male 3.5mm jack to the steering wheel control port on the radio.
2. Ensure that the dipswitches are set to the desired radio type. Refer to SWC Chart on page 4.
3. Connect the AXDIS-MB82 harness to the AXDIS-MB82 interface.
4. Remove the dust cover from the optic port on the AXDIS-MB82 interface.
5. Connect the factory fiber optic cable to the AXDIS-MB82 interface. See right this page.
6. Connect the AXDIS-MB82 harness to the wiring harness in the vehicle.
7. Turn on the ignition and test all features.
O
N
1
2
3
4
5
K
E

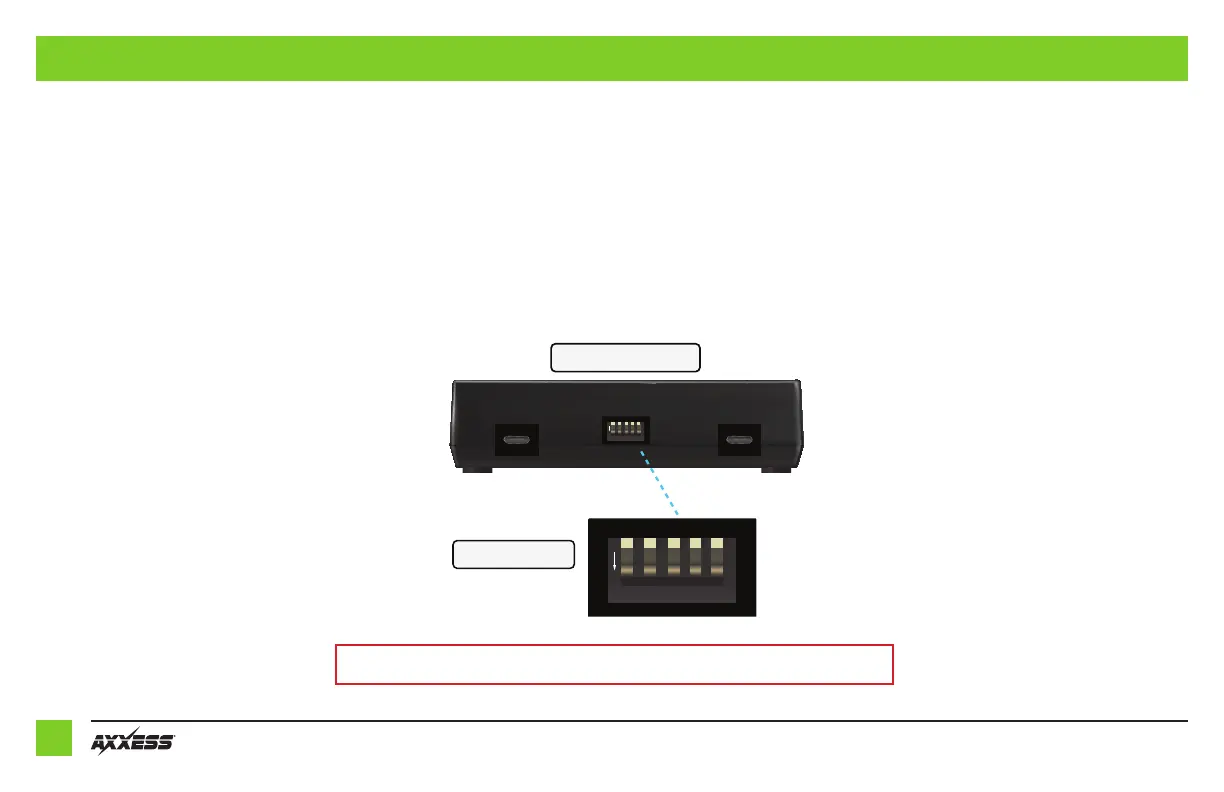

Interface Front View
Dipswitch Detail
O
N
1
2
3
4
5
K
E
NOTE: For Dipswitch Settings for your Radio Type, refer to SWC Chart on page 5.
