4

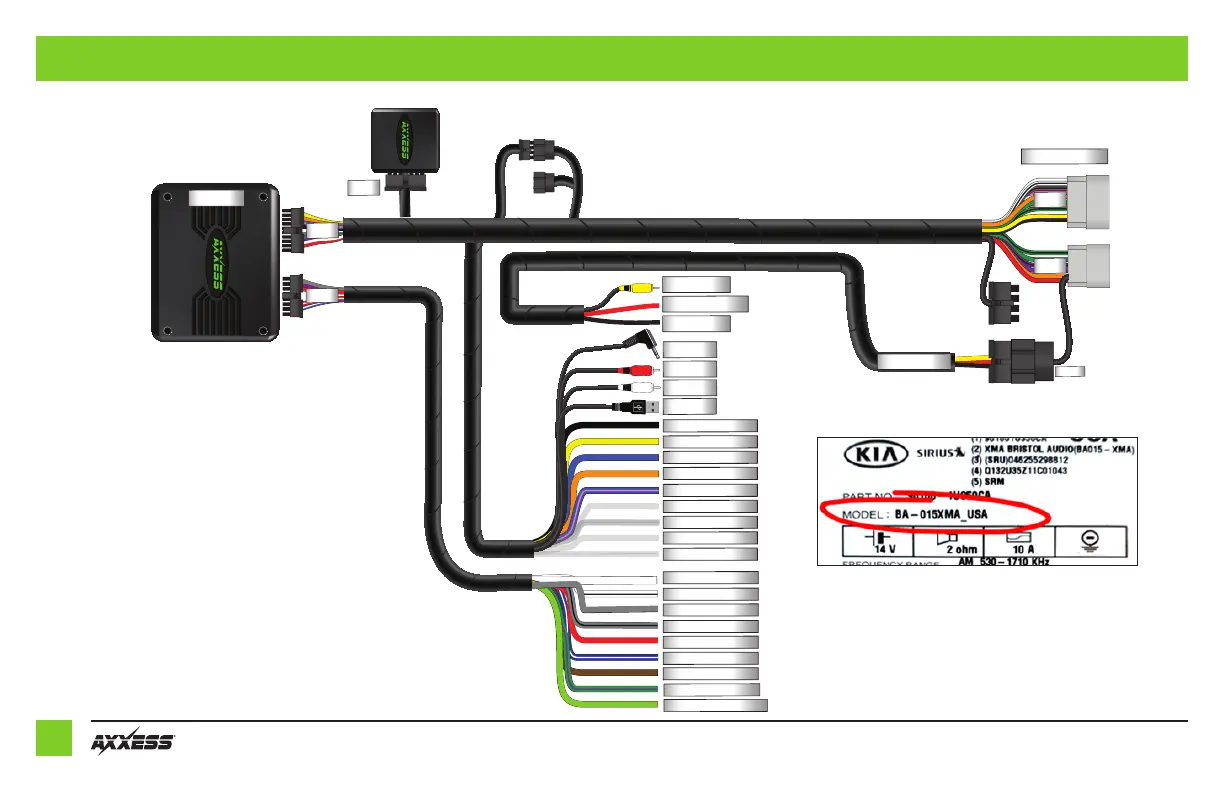

Green/Purple - Reverse
Light Green - Parking Brake
Interface
22 Pin
16 Pin
Vehicle Connectors
(B) DO NOT USE
AXSP-HK
14 Pin
18 Pin
24 Pin
(A) Connect
DO NOT USE
Back-up Camera
Camera Power 6 Volt
Camera Ground
8 Pin
Back-up Camera
Sold Separately
SWC Jack
Red
White
AUX IN RETENTION
}
USB RETENTION
USB Cable
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - VSS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
White - Left Front (+)
White/Black - Left Front (-)
Gray - Right Front (+)
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
AMPLIFIED VEHICLES WITH NAVIGATION
To Identify if your vehicle has the Bristol Audio system,
check the radio’s model number. If the model # starts with
a BA , it has Bristol Audio and is NOT covered.
