2

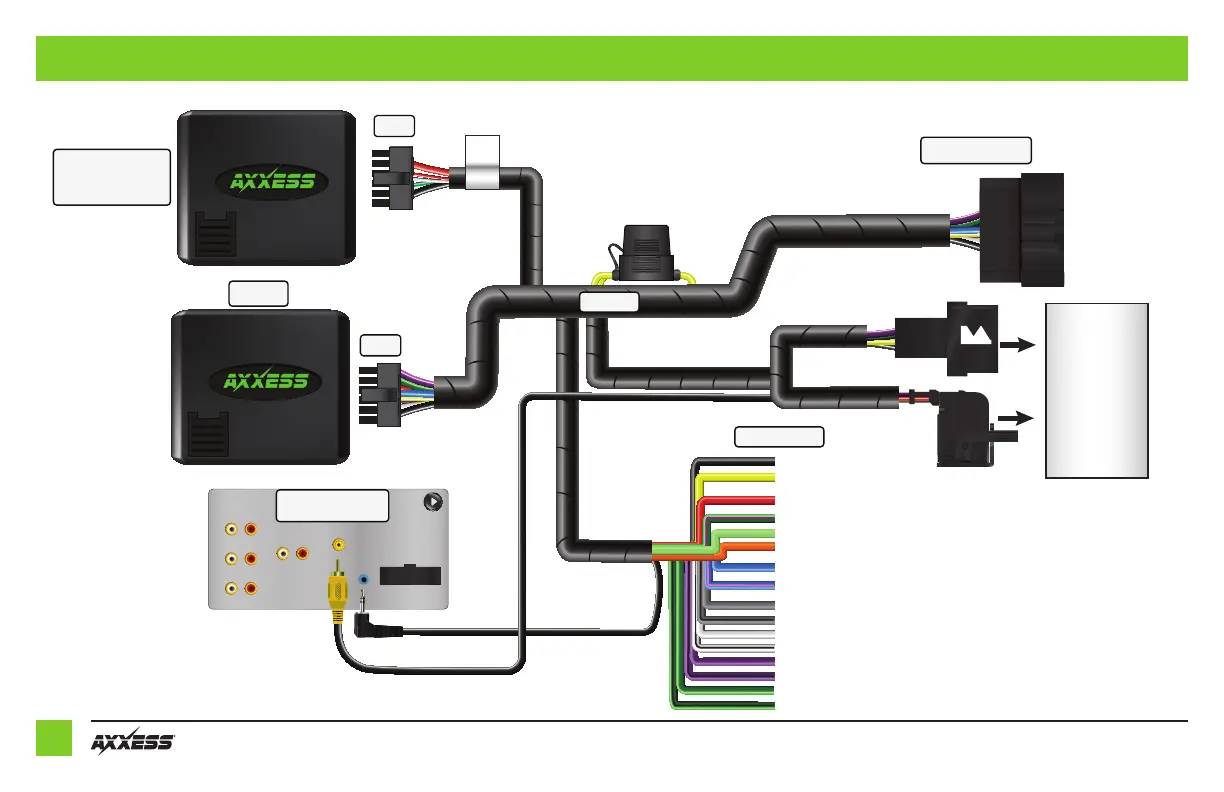

CONNECTIONS: LD-FD212 DIAGRAM
Radio Connections
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green/Purple
- Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue - Power Antenna
Blue/Pink - VSS/Speed-Sense
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Vehicle Connectors
LD-FD212
12-Pin
To
SWC
12-Pin
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
Interface
Steering Wheel
Control (AXSWC)
(Sold Separately)
OE
Screen
Location
To
Radio
