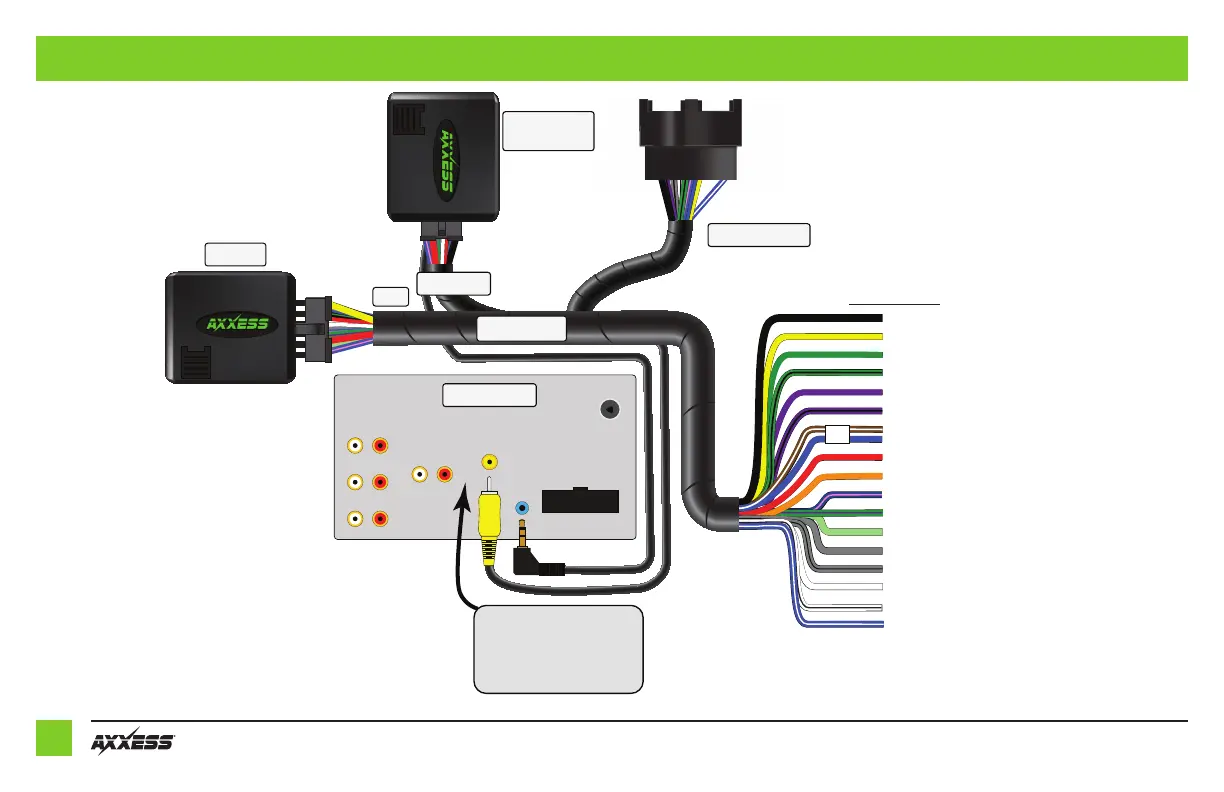

Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
This is to be done only in the Ford
Transit/Transit Connect 2019-Up
without SYNC. To retain backup
camera in anyother application you
must purchase the AXBUCH-FD1.
12-Pin
Vehicle Connectors
SWC Harness
Steering Wheel
Control (AXSWC)
(Sold Separately)
CENTER
LD-AXVI-FD3
Interface
Red - Accessory power
Orange - Illumimation
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Blue/White - (NOT USED)
Radio Connections
Black - Ground wire
Yellow - Battery wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Brown/White (NOT USED)
Blue Ground on Non-SYNC application for reverse camera
From the AXDI-FD3 harness
to the aftermarket radio
CONNECTIONS
