AXAC-CH7
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/9/25 INSTAXAC-CH7
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights,
are plugged in before reconnecting the battery or
cycling the ignition to test this product.
NOTE:
Refer also to the instructions included with
the aftermarket accessory before installing this device.
INTERFACE FEATURES
TOOLS REQUIRED
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Applications ...........................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................7
Rebooting the U-Connect Radio ..........................7
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured
through the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication
of the vehicle
•
Turn signal trigger generated via CAN bus communication of
the vehicle
• 1 programmable camera control wire (configured through the
Axxess Updater program)
• Can also be manually controlled and used along with an
aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-CH7 interface
• AXAC-CH7 interface harness
• AXAC-CH7 vehicle harness
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
Camera Data Interface w/Pre-Wired Harness
Fits Select Jeep/Ram Models 2018.5-2023
APPLICATIONS
(see page 2)
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications

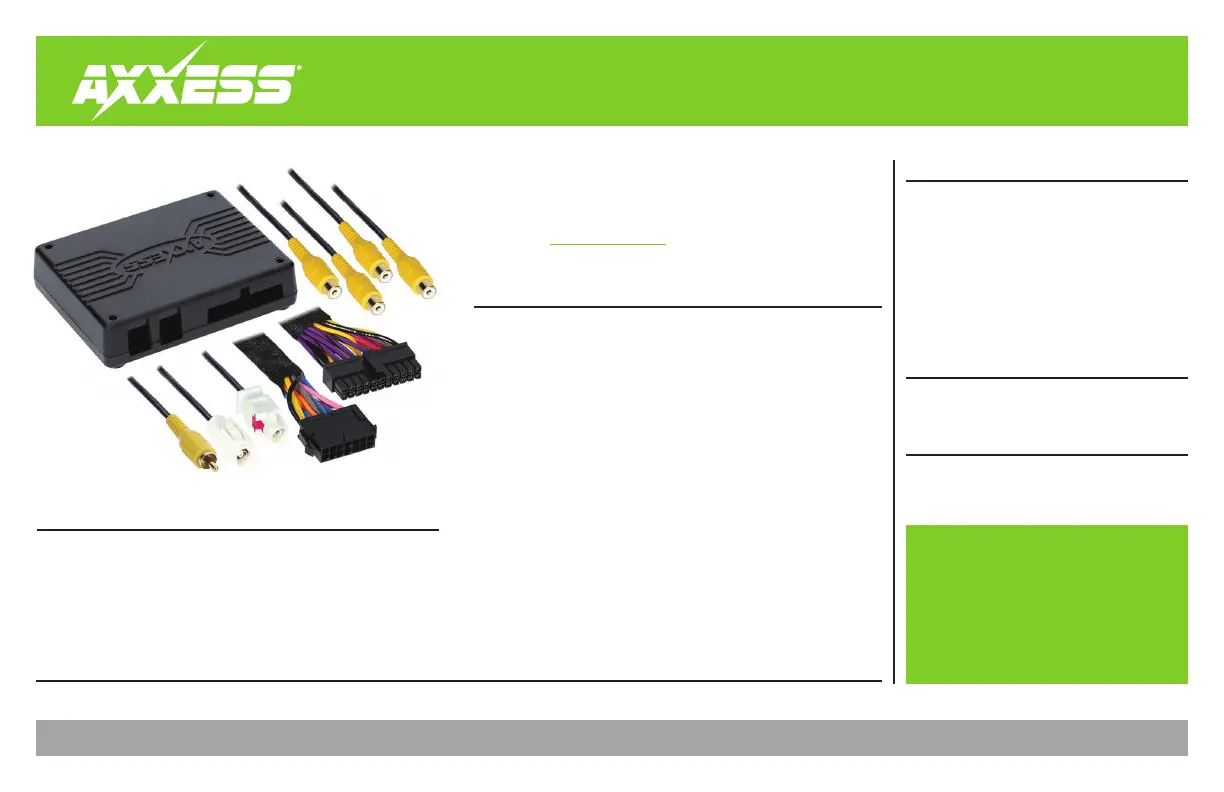

INTERFACE COMPONENTS
