CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.

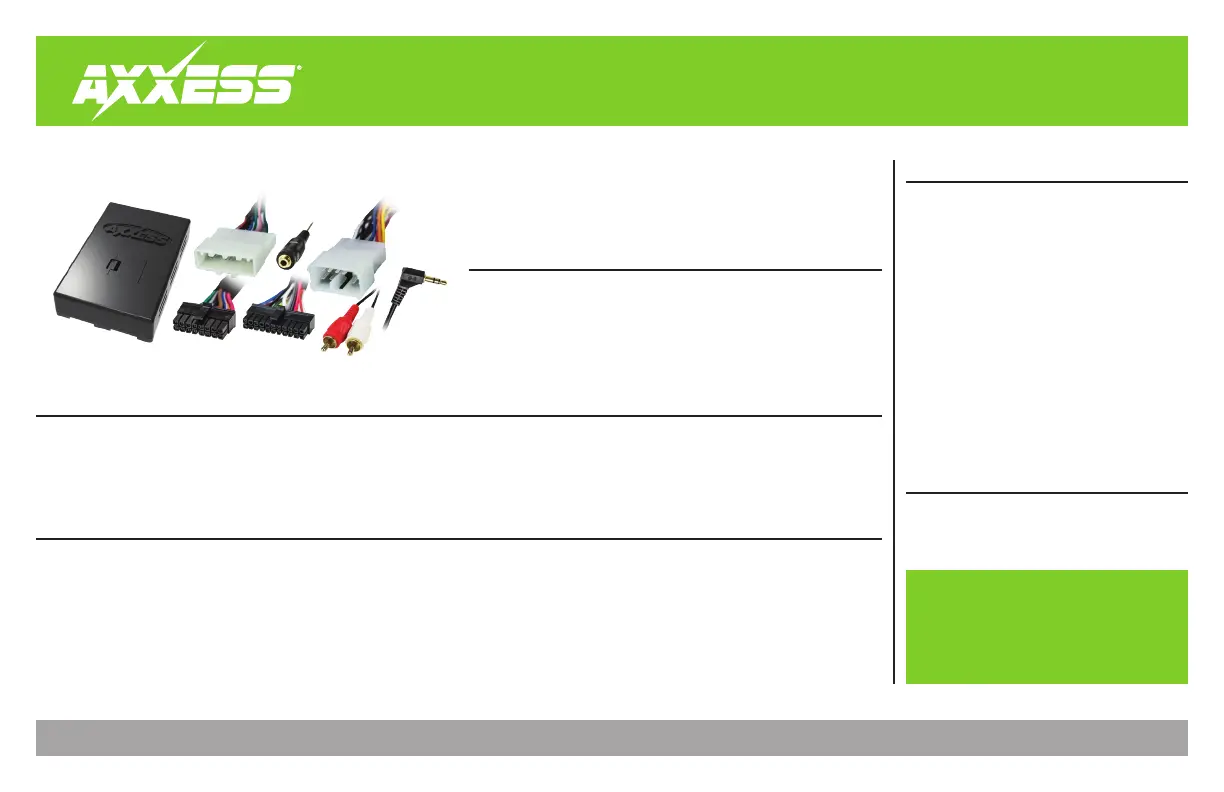

A X-T YAMP2-SWC
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 7/24/18 INSTAX-TYAMP2-SWC
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections to be made ....................................2-3
- 3.5mm jack steering wheel control retention
...3
Installing the AX-TYAMP2-SWC .............................3
Programming the AX-TYAMP2-SWC......................4
Adjusting the AX-TYAMP2-SWC .............................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping the steering wheel control buttons ...6
- Dual assignment instructions (long button press)
...7
Troubleshooting .....................................................8
Toyota Amp Interface with SWC 2012-up*
APPLICATIONS
• Retains audio controls on the
steering wheel
• Provides NAV outputs (reverse)
• Retains the factory AUX-IN jack
• Designed for amplified models
• Retains balance
• Micro “B” USB updatable
TOYOTA
Avalon * 2013-up
4-Runner 2014-up
Camry 2014-2017
Camry (w/ nav) 2012-2013
Highlander 2014-up
Prius 3rd Gen (w/ nav) 2012-2015
Plug-In (PHV) (w/ nav) 2012-2015
Prius V 2012-2017
Rav-4 2014.5-up
Sequoia 2014-up
Sequoia (w/ nav) 2013
Sienna 2015-up
Tacoma 2014-up
Tundra * 2014-up
Venza 2015
Venza (w/ HDD based nav) 2013-2014
• AX-TYAMP2-SWC interface
• AX-TYAMP2-SWC harness
• Female 3.5mm connector with stripped lead
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
* Only for models with a JBL amplifier
