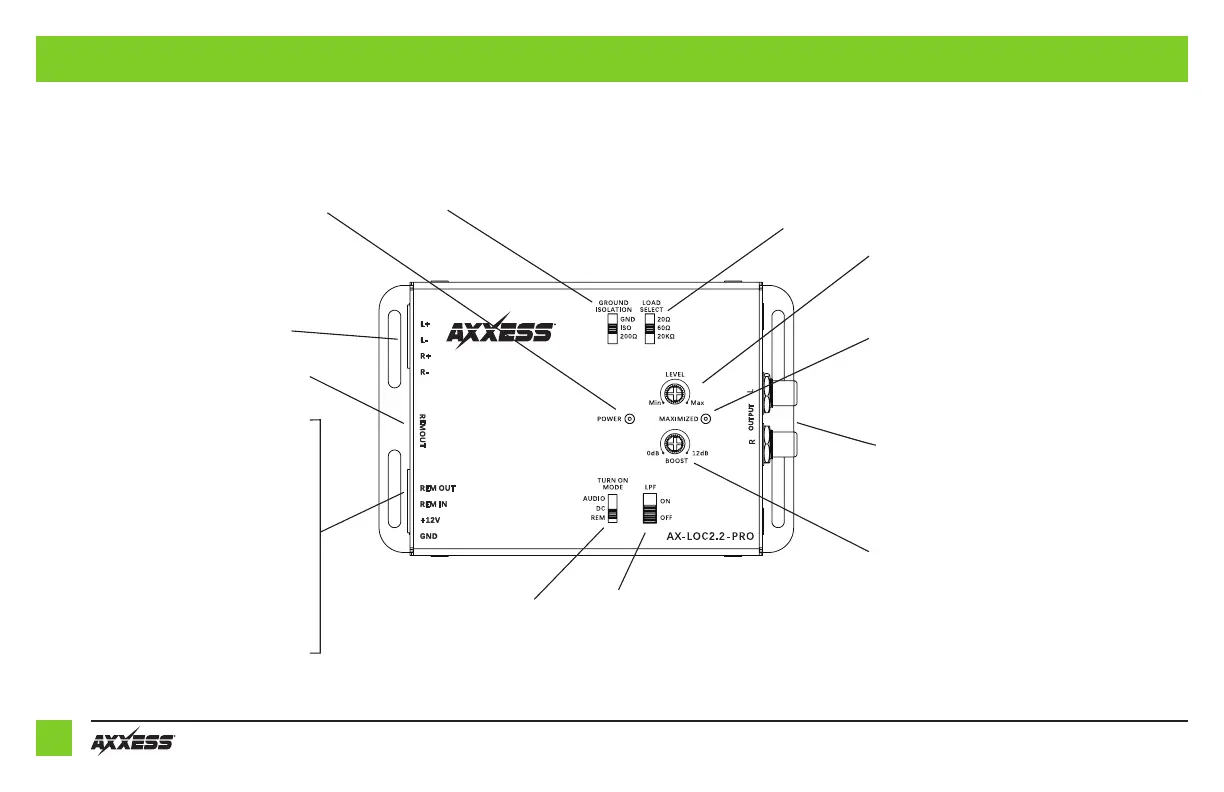

QUICK REFERENCE: AX-LOC2.2PRO
Remote - Dash mount bass knob AX-RM1
(sold Separately).
RCA OUTPUT - Full Range level adjustment
if LPF switch is OFF, if ON only frequencies
250 Hz and down will play.
Ground Isolation - Three selections : 200
Ohm, ISO, GND. Refer to page 5 for addi-
tional information. Default setting: ISO
Turn on mode - Selectable three
position switch that will control
when the LOC turns on. Settings
are REM, DC, and Audio. Refer to
page 5 for additional information.
Load Select - Three selectable ohm load
options, 20k, 60, and 20. Adjust resistance
loads to keep OE equipment producing audio.
Refer to page 5 for additional information.
LPF - ON/OFF, if set to OFF
outputs will pass full range, if
ON only frequencies 250Hz
and down will play.
Boost- Low Frequency
boost 0dB to +12dB.
Power Indicator - When lit the
AX-LOC2.2-PRO is on.
Maximized - While adjusting the MAIN LEVEL
the Maximized LED may light up meaning a
clipped signal is detected. Reduce the MAIN
LEVEL adjustment until the LED is no longer lit.
Speaker Input - Speaker level input. Feed left
and right speaker wires from the head unit or
amplier to the respective terminals.
REM Out - Remote turn on output. Depend-
ing on the Turn on Mode switches position
the AX-LOC2.2-PRO will provide a remote
output signal. Refer to page 5 for additional
information.
REM In - Remote turn on input or true Igni-
tion, may dier if DC or Audio is selected on
the Turn on Mode switch.
+12 Volt - Connect to constant 12 volt source.
GND - Connect to chassis ground
RCA LEVEL - Adjusts the output level of the RCA’s.
3.5”
5.26”
AX-LOC2.2PRO
