SHARK S8X PLUS
8CH Video Switcher
29
12.3.Freeze
The video switcher supports the FREEZE function, allowing users to freeze the input source image.
Users can select to freeze PGM or PVW in the menu. In the PVW or PGM row, select the channel to
be frozen and press the FREEZE button to freeze the input source image of that channel. Select the
frozen input channel again and press the FREEZE button to unfreeze it. If needed, users can freeze
all 8 inputs.
12.4. Sync Signal
The switcher is equipped with REF input and loop output interfaces, supporting external
synchronization with tri-level or black burst signals. Users can select the synchronization mode of
line/field or clock + line/field mode in the menu according to the actual needs of the site.
After enabling the REF function, the SDI output signal will be synchronized with the synchronization
signal.
Note: This function is usually used in professional systems such as live broadcast television systems.
Do not enable this function if not connected to a live broadcast system.

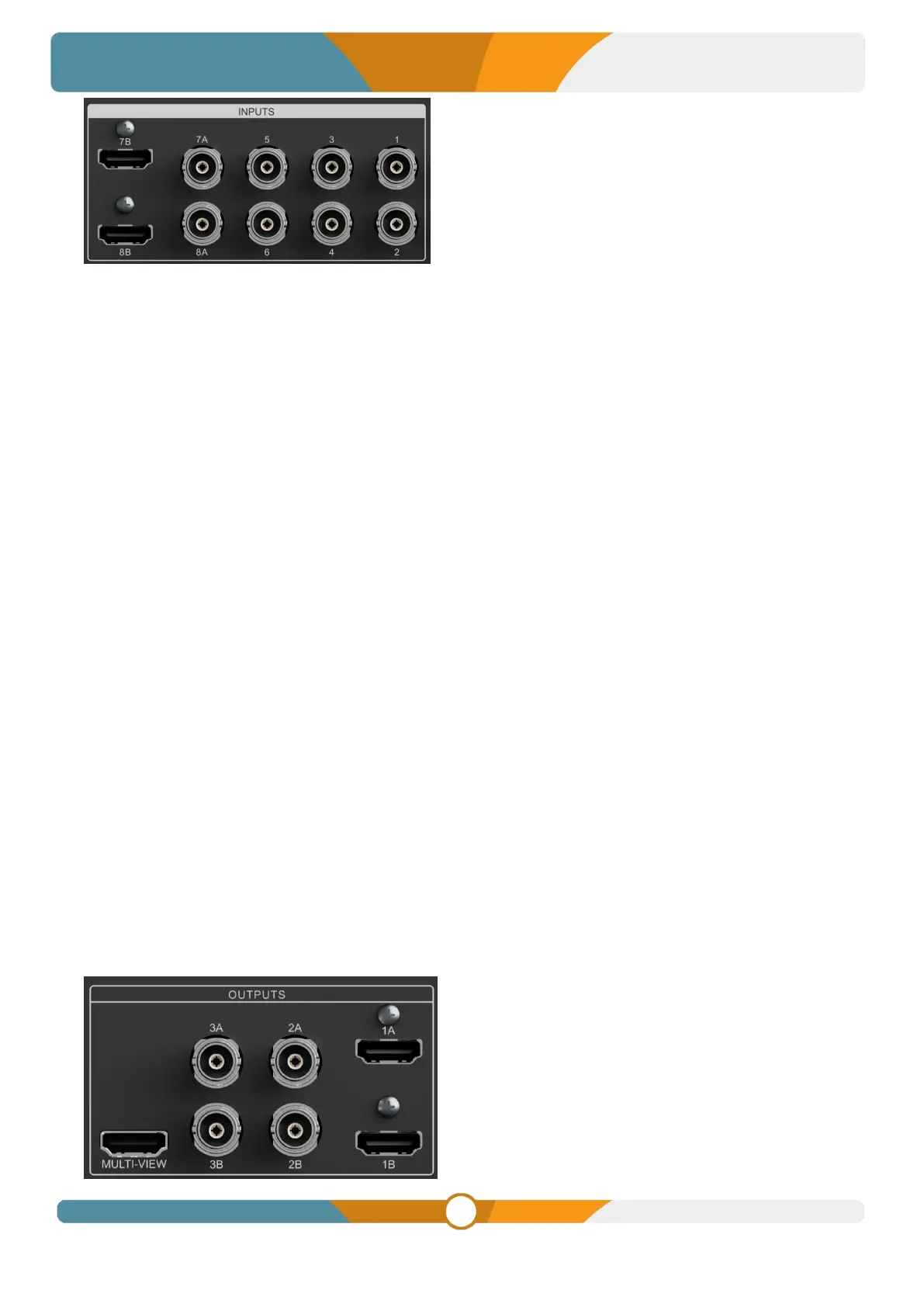

13.Output Setting
13.1.Output Interface
The video switcher has 7 output ports. They are 2 HDMI (A/B) PGM (AUX) outputs, 4 SDI (A/B) PGM
(AUX) outputs, 1 x HDMI Multi Picture Output, which can also be defined as AUX outputs, including IN
1-IN8, PVW, PGM, Clean PGM, Color Bar and Multiview outputs.
