AT-UHD-HDVS-300-KIT
11
Installation

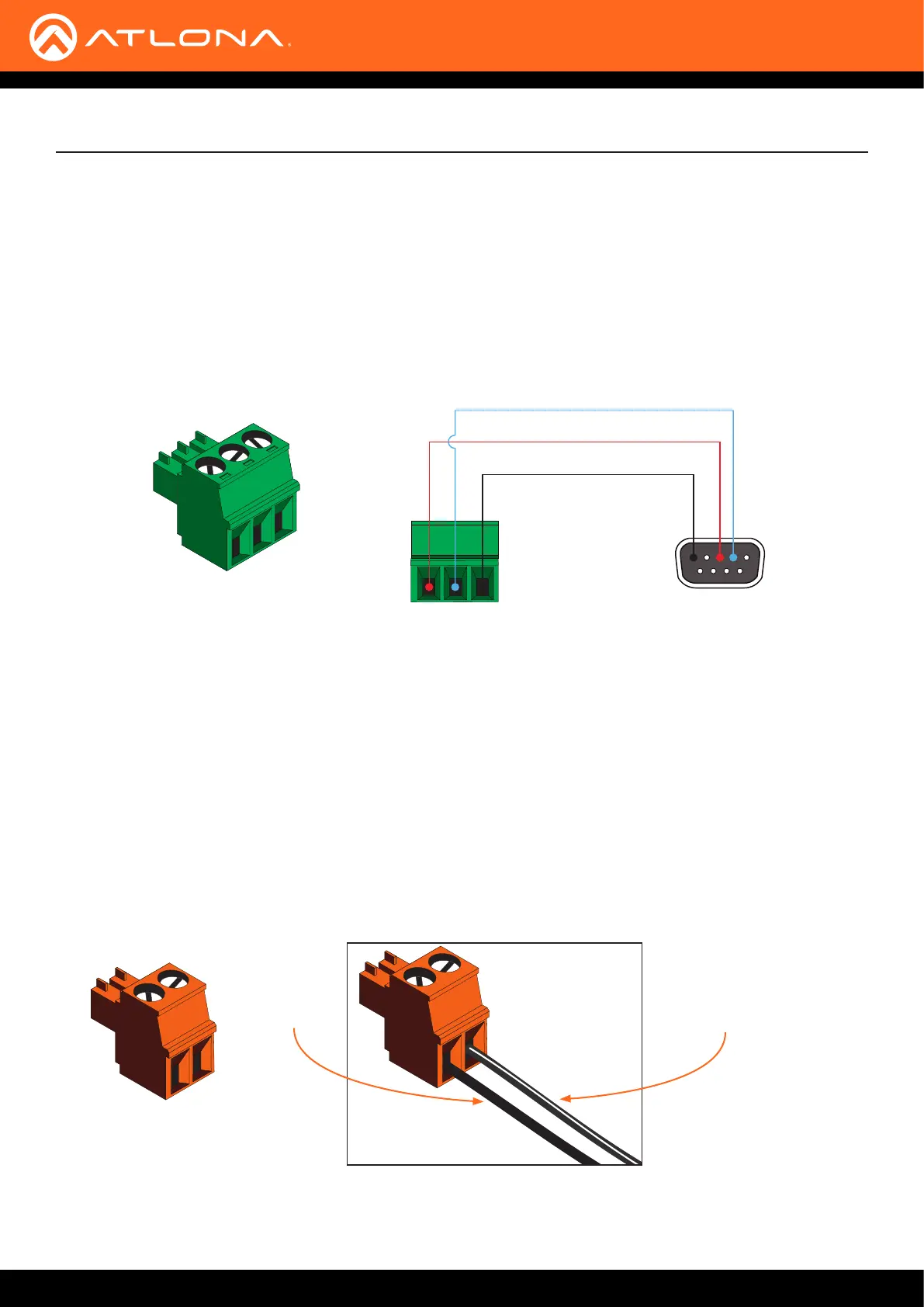

The AT-UHD-HDVS-300-TX provides RS-232 control between an automation system and an RS-232 device or
display control. This step is optional. Refer to RS-232 Control (page 23) for more information.
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires.
3. Insert the TX, RX, and GND wires into correct terminal on the included captive screw connector block.
RS-232
GND
RX
TX
Power
Locate the included orange 2-pin captive screw terminal block and wire the included captive screw terminal block, as
shown below. Do not use high-torque devices, when securing the wires to the terminal block, as this may damage
the screws and/or the block.
1. Insert the wires into the correct terminal on the included captive screw terminal block, as shown below.
2. Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or
terminal block.
White (positive)
Black (negative)
48 V
