AT-UHD-HDVS-300-KIT
10
RX
LAN
TX
AT-UHD-HDVS-300-RX
HDMI OUT LINK
PWR
RS-232
USB
USB
USB
HDMI IN 5
USB HUB HDBaseT IN USB 3 DC 48V
+
RX
LAN
TX
AT-UHD-HDVS-300-RX
HDMI OUT LINK
PWR
RS-232
USB
USB
USB
HDMI IN 5
USB HUB HDBaseT IN USB 3 DC 48V
+
1
76 8 9
5
2 3 4

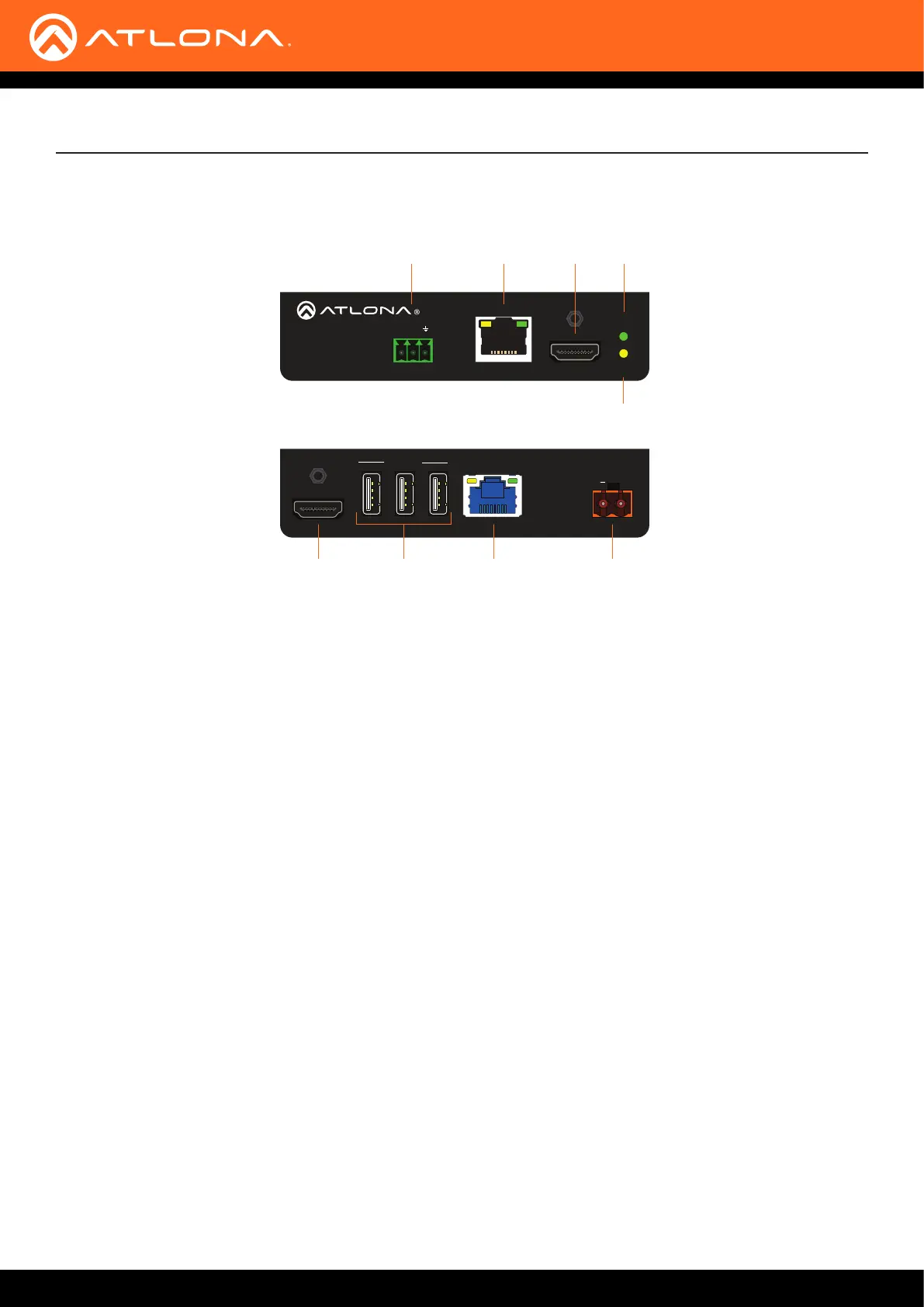

Front
Rear
Panel Description
1 RS-232
Connect the included 3-pin captive screw connector to the RS-232 device to be controlled. Refer to RS-232
(page 11) for wiring information.
2 LAN
Connect an Ethernet cable from this port to the network.
3 HDMI OUT
Connect an HDMI cable from this port to an HD/UHD display.
4 PWR
This LED indicator will glow bright green when the unit is powered.
5 LINK
This LED indicator will glow bright amber when a solid link has been established, between the transmitter and the
receiver.
6 HDMI IN 5
Connect a HD/UHD source to this port using an HDMI cable.
7 USB HUB
Connect up to three USB devices to these ports. These ports support both USB 2.0 and USB 1.1 devices.
8 HDBaseT IN
Connect an Ethernet cable from this port to the transmitter.
9 DC 48V
Connect the included power supply to this port using the included 2-pin captive screw connector. Refer to
Power (page 11) for wiring information.
Receiver
