AT-UHD-CLSO-840
55

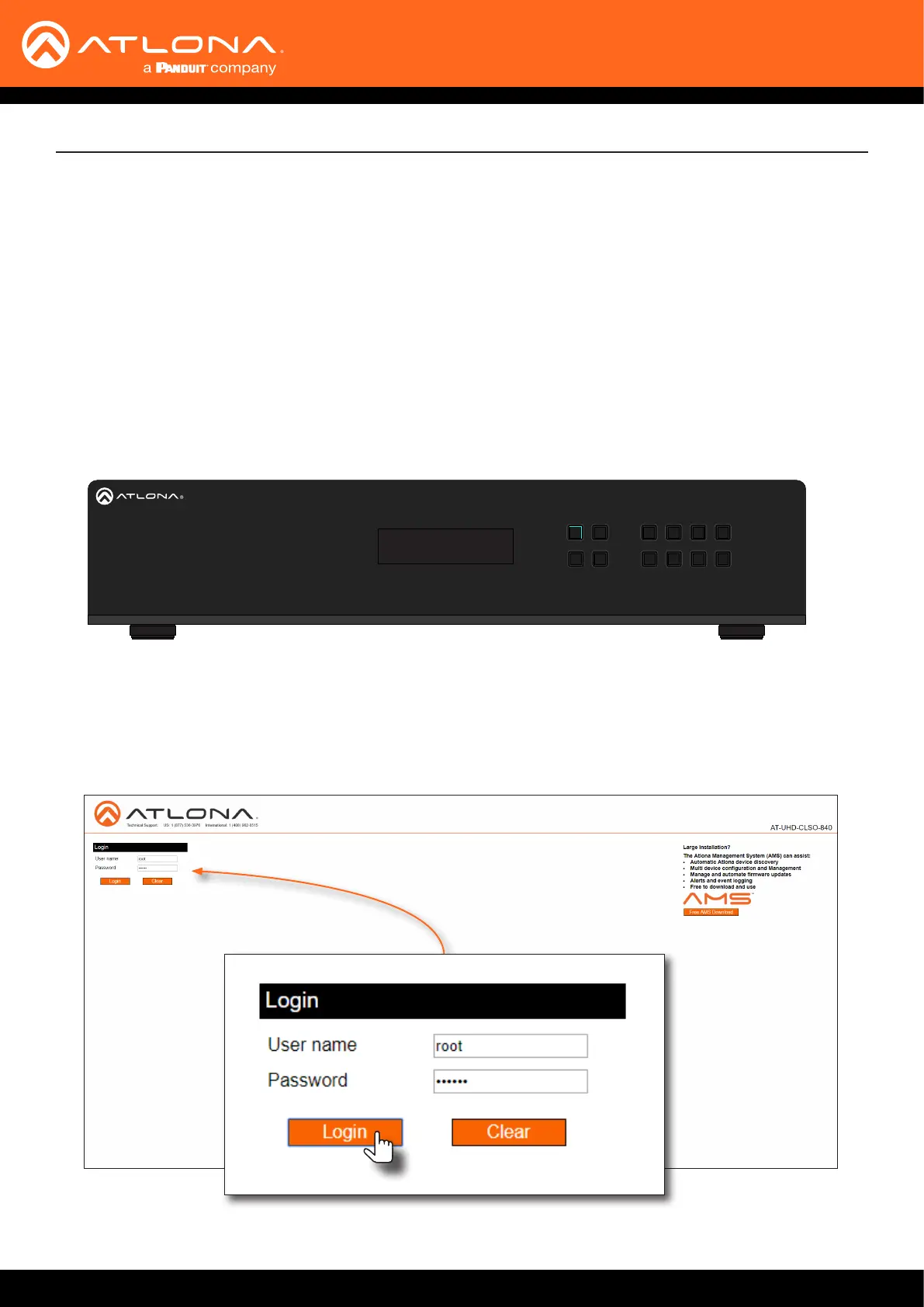

The AT-UHD-CLSO-840 includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the
matrix, as it provides intuitive management of all features. Follow the instructions below to access the webGUI.
1. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-CLSO-840 and the
network.
2. Launch a web browser and enter the IP address of the unit. If the default static IP address is being used, enter
192.168.1.254.
If the IP address of the AT-UHD-CLSO-840 is not known, press and release the FNC button on the front panel,
then repeatedly press the INFO button until the IP address is displayed, as illustrated in the example below.
Refer to Displaying the System Settings (page 20) for more information, if necessary.
Introduction to the Web GUI
3. Enter root, using lower-case characters, in the User name eld.
4. Type Atlona in the Password eld. This is the default password. The password eld is case-sensitive. When the
password is entered, it will be masked.
5. Click the Login button or press the ENTER key on the keyboard.
The Web GUI
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ + + + + ++ + + + + + + ++ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4
