AT-UHD-CLSO-840
19
Basic Operation
Viewing Matrix Settings
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ + + + + ++ + + + + + + ++ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4

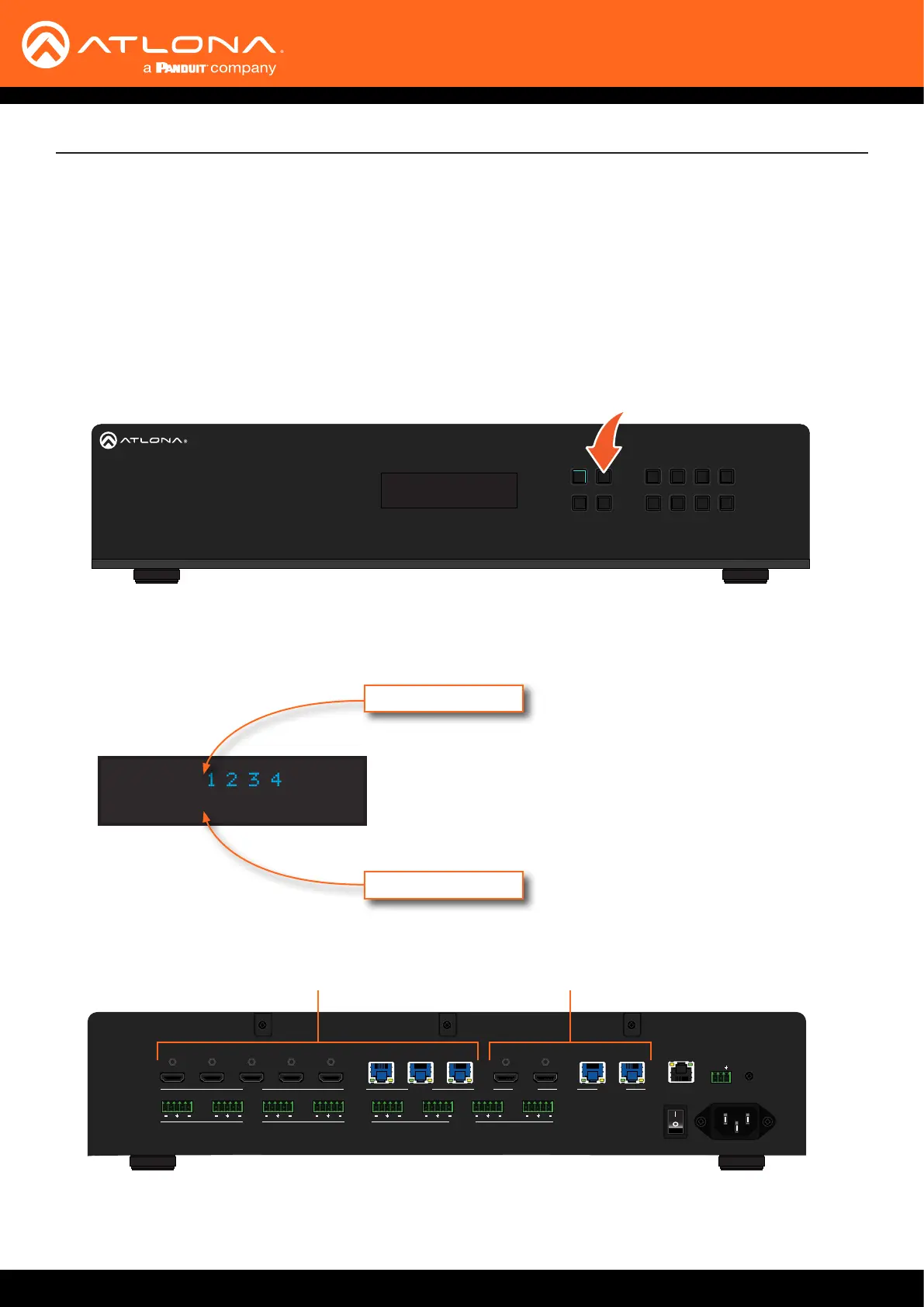

The front panel display provides the current status of the matrix and its settings. The buttons on the front panel can
be used to display the current routing settings as well as network settings.
1. Make sure the home screen is displayed. If the home screen is not displayed, press the CANCEL button to
return to the home screen.
2. Press the ENTER button to display the routing screen.
3. Press the CANCEL button to return to the home screen. If the CANCEL button is not pressed within 10
seconds, then the matrix will automatically return to the home screen.
Viewing the current routing state
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ +
+ +
+ ++ + + +
+ +
+ +
+ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4
Outputs 1 - 4Inputs 1 - 8
By default, the AT-UHD-CLSO-840 is set to a “one-to-one” routing state. This means that each input is routed to
its associated output: 1-to-1, 2-to-2, etc., as shown below. The matrix features ve HDMI and three HDBaseT
inputs. There are two HDMI and two HDBaseT outputs.
The AT-UHD-CLSO-840 features ve HDMI inputs and three HDBaseT inputs. In addition, there are two HDMI
outputs and two HDBaseT outputs.
0 1 2 3 4
I 1 2 3 4
Routing Screen
Outputs (top row)
Inputs (bottom row)
