Basic Operation
Standby Mode

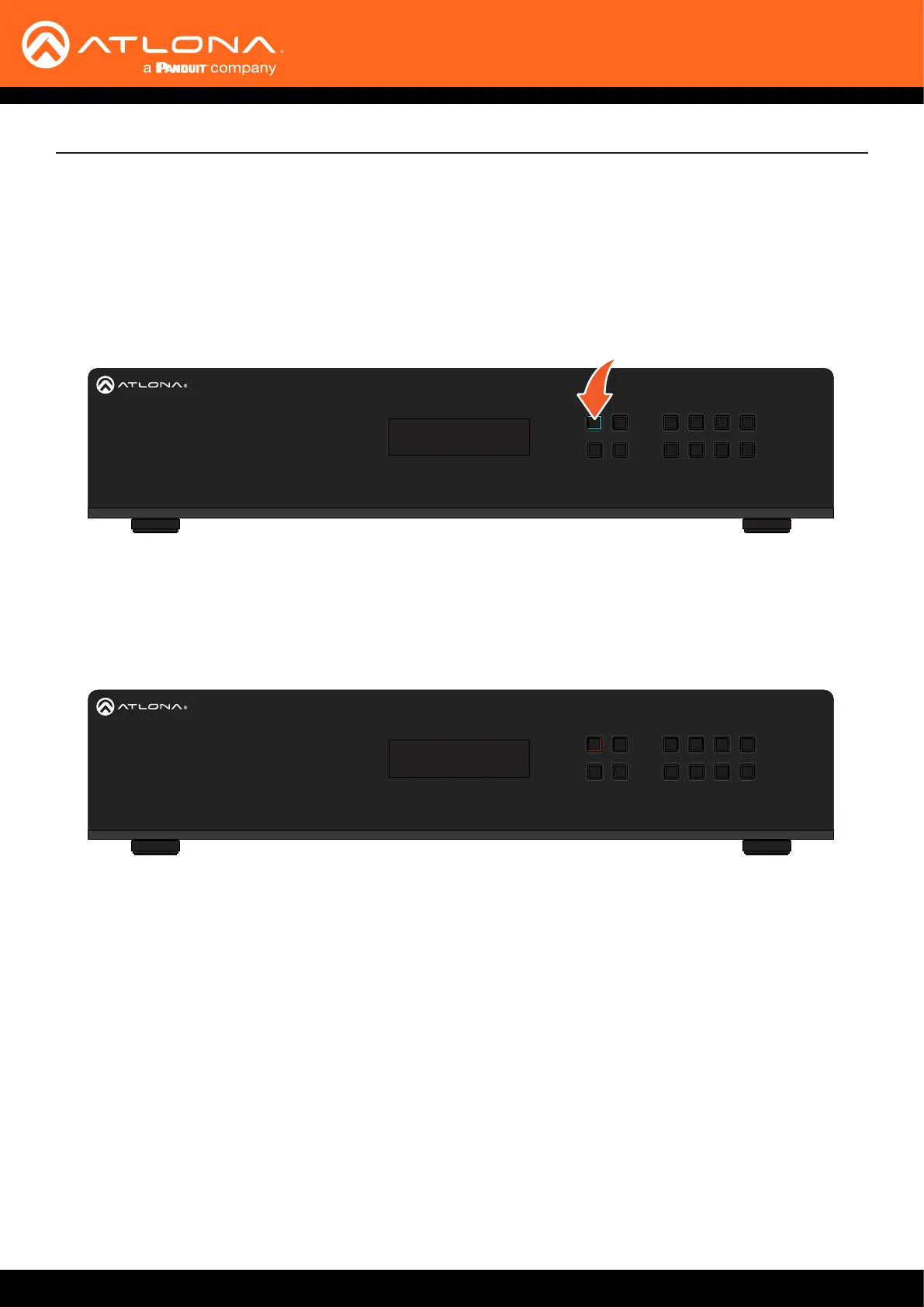

The POWER button on the front panel of the matrix, allows the matrix to be powered-on or placed in standby mode.
1. Locate the POWER button on the front panel. When the matrix is in normal operating mode, the POWER button
will be backlit by a solid blue light. In this mode, operations using the front panel buttons, web GUI, or through
API commands can be performed.
2. Press the POWER button, on the front panel to place the matrix in standby mode.
3. Press the POWER button again, to power-on the matrix and return to normal operating mode.
The matrix will power-down and be placed in a low-power state and the POWER button will be backlit by a solid
red light.
When the matrix is in standby mode, operations using the front-panel buttons are suspended. However, access
to the matrix, through the web GUI or API commands is still available.
