AT-UHD-CLSO-840
10
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ + + + + ++ + + + + + + ++ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4
1
3 5 7 8 6
2 4 6

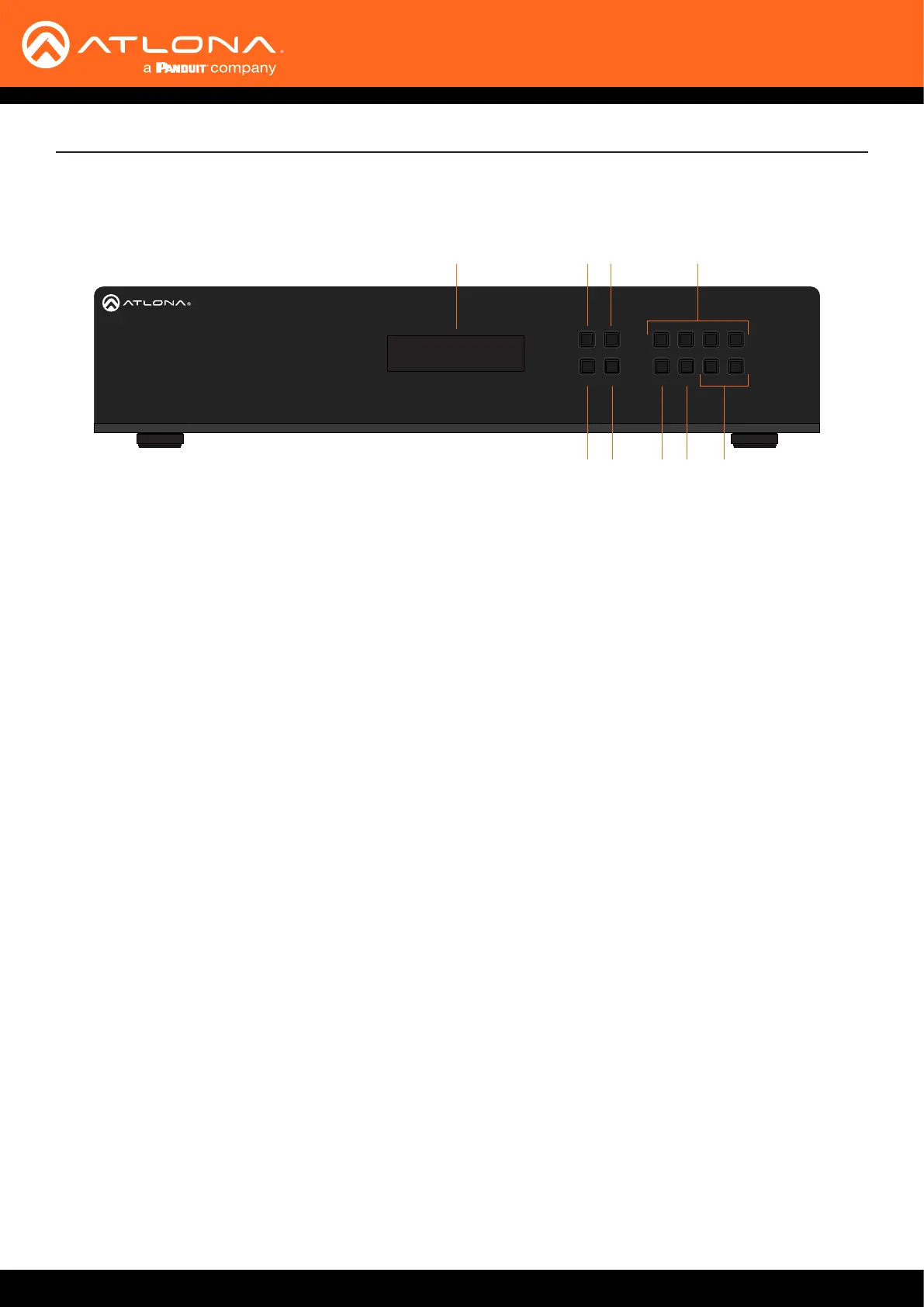

Panel Description
Front
1 Front Panel Display
This 16-character, two-row display provides the status of the matrix during various operations.
2 POWER
Press this button to power-on or place the matrix in standby mode. The button is backlit to indicate the current
state: When the matrix is powered, the button will be solid blue. In standby mode, the button will be red. Refer
to Powering the Matrix (page 17) for more information.
3 FCN
Press this button to select the desired function. Refer to Displaying the System Settings (page 20) for more
information.
4 ENTER
Press this button to conrm operations or view the current status for inputs. Refer to Routing Inputs to Outputs
(page 21) for more information.
5 CANCEL
Press this button to abort the current operation, return to the previous menu, or go to the home screen. Refer to
Routing Inputs to Outputs (page 21) for more information.
6 Routing / Function Buttons
Press these buttons to manage routing operations and other functions.
7 EDID
Press this button, in conjunction with the FNC button, to save and load EDID data. Refer to EDID Management
(page 41) for more information.
8 INFO
Press this button to display the current rmware version, IP address, and MAC address of the matrix. Refer to
Displaying the System Settings (page 20) for more information.
